Without Scan Tool

WITH THE SCAN TOOL

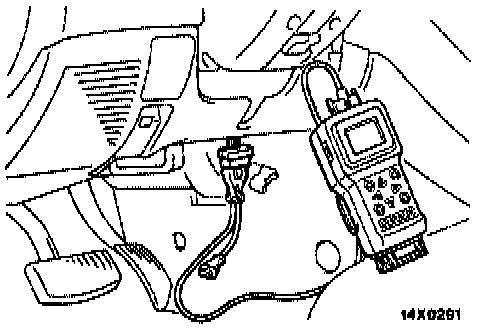

Connecting Scan Tool To Data Link Connector:

Connect the scan tool to the data link connector, then check diagnostic trouble codes.

CAUTION: Turn the ignition switch off before disconnecting or connecting the scan tool.

NOTE: Diagnostic trouble code No. 16 can be output when the Antilock Brake System (ABS) fails because of a battery surge.

WITH THE ABS WARNING LIGHT

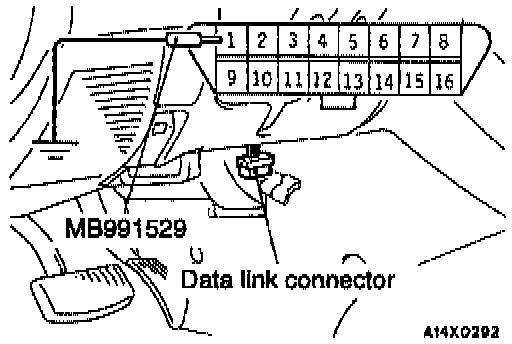

Grounding Terminal Of Data Link Connector:

1. Use the special tool (diagnostic trouble code check harness) to ground the terminal (1) of the data link connector.

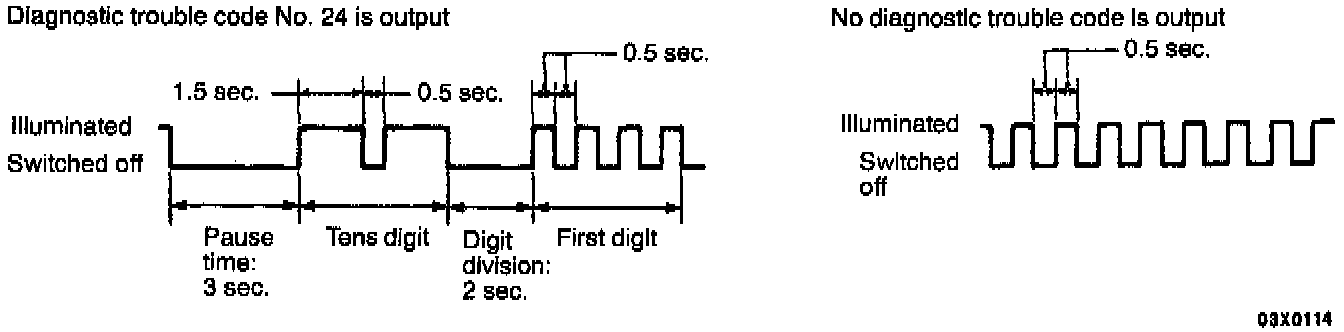

2. Take a reading of the diagnostic trouble code from the flashing of the ABS warning light.

NOTE: Diagnostic trouble code No. 16 can be output when the ABS fails because of battery surge.
