Resistance & Continuity Between Harness-Side Connector Terminal

1. Turn the ignition switch off and disconnect the ABS-ECU connectors before checking resistance and continuity.

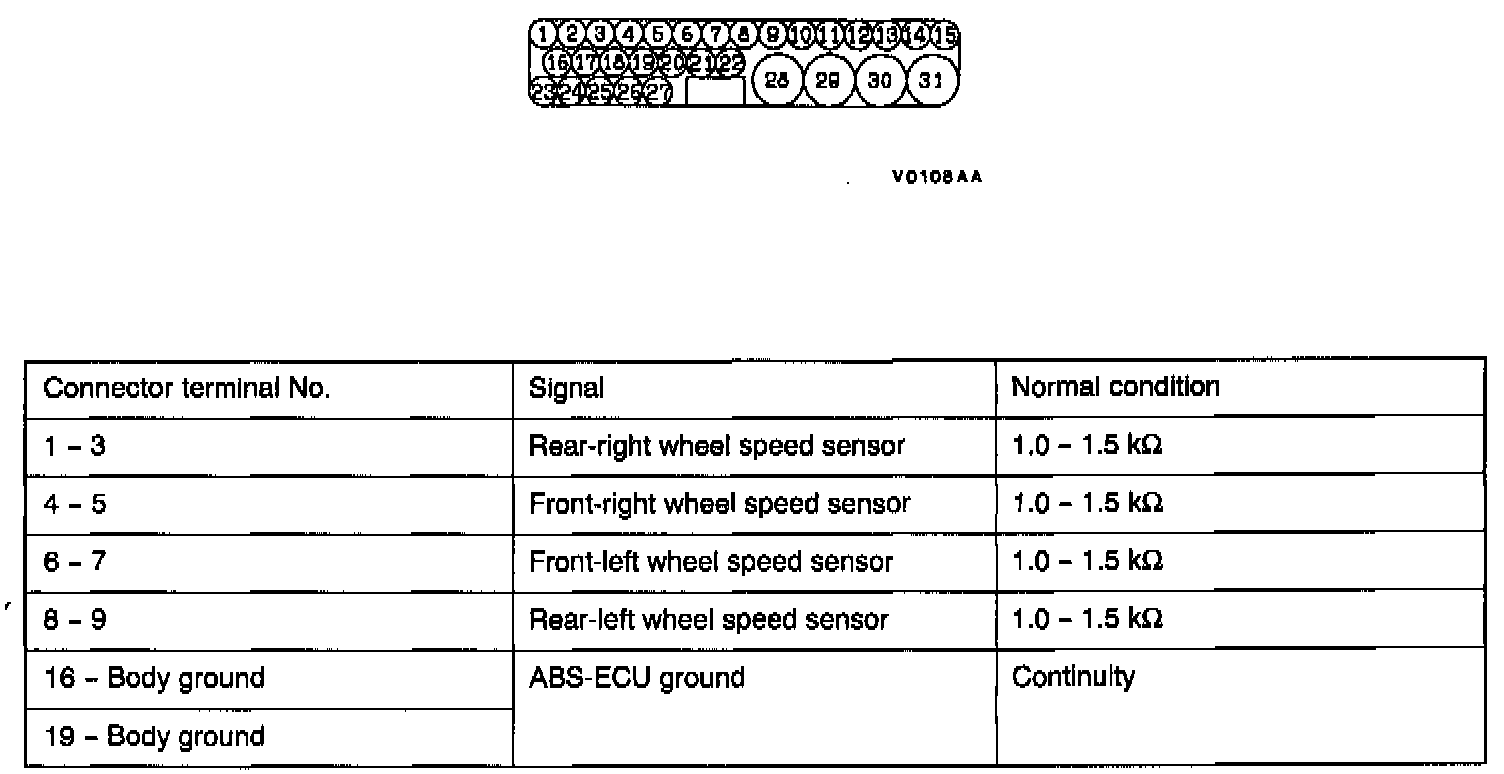

2. Check them between the terminals indicated in the table below.
