Replacement

Linkage Removal:

MOTOR REMOVAL
1. Remove wiper arms and blades.
2. Remove the cowl screen.

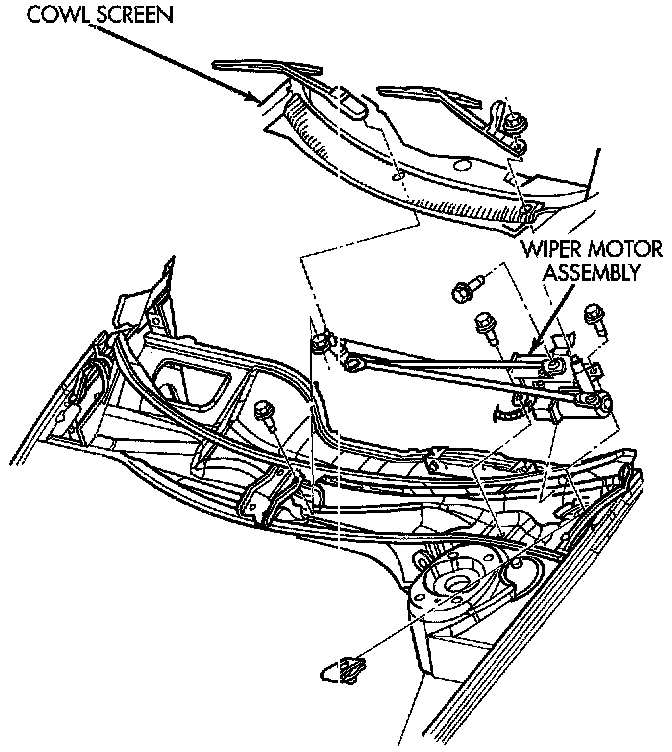

3. Remove wiper motor assembly
4. Disconnect drive linkage from motor output crank. Using an ball joint/tie rod separator, separate the ball cap from the ball.
5. Remove motor mounting nuts and remove motor.
6. Disconnect wire connector at motor.

NOTOR INSTALLATION
For installation, reverse the above procedures. Tighten the mounting screws to 10 to 12 N.m (89 to 106 in. lbs.) torque. Ensure that the motor connector seal is properly positioned. Tighten the motor mounting nuts to 25 to 30 N.m (19 to 23 ft. lbs.) torque.

Wiper Motor And Linkage Module:

MOTOR ASSEMBLY REMOVAL
1. Remove wiper arms and blades.
2. Remove the cowl screen.
3. Remove the four wiper motor mounting screws then lift assembly to gain access to clip.
4. Disconnect harness clip from the forward mounting leg.
5. Disconnect wire connector at motor and remove assembly.

MOTOR ASSEMBLY INSTALLATION
For installation, reverse the above procedures. Tighten the mounting screes to 10 to 12 N.m (89 to 106 in. lbs.) torque. Ensure that the motor connector seal is properly positioned.
