Electrical Diagrams

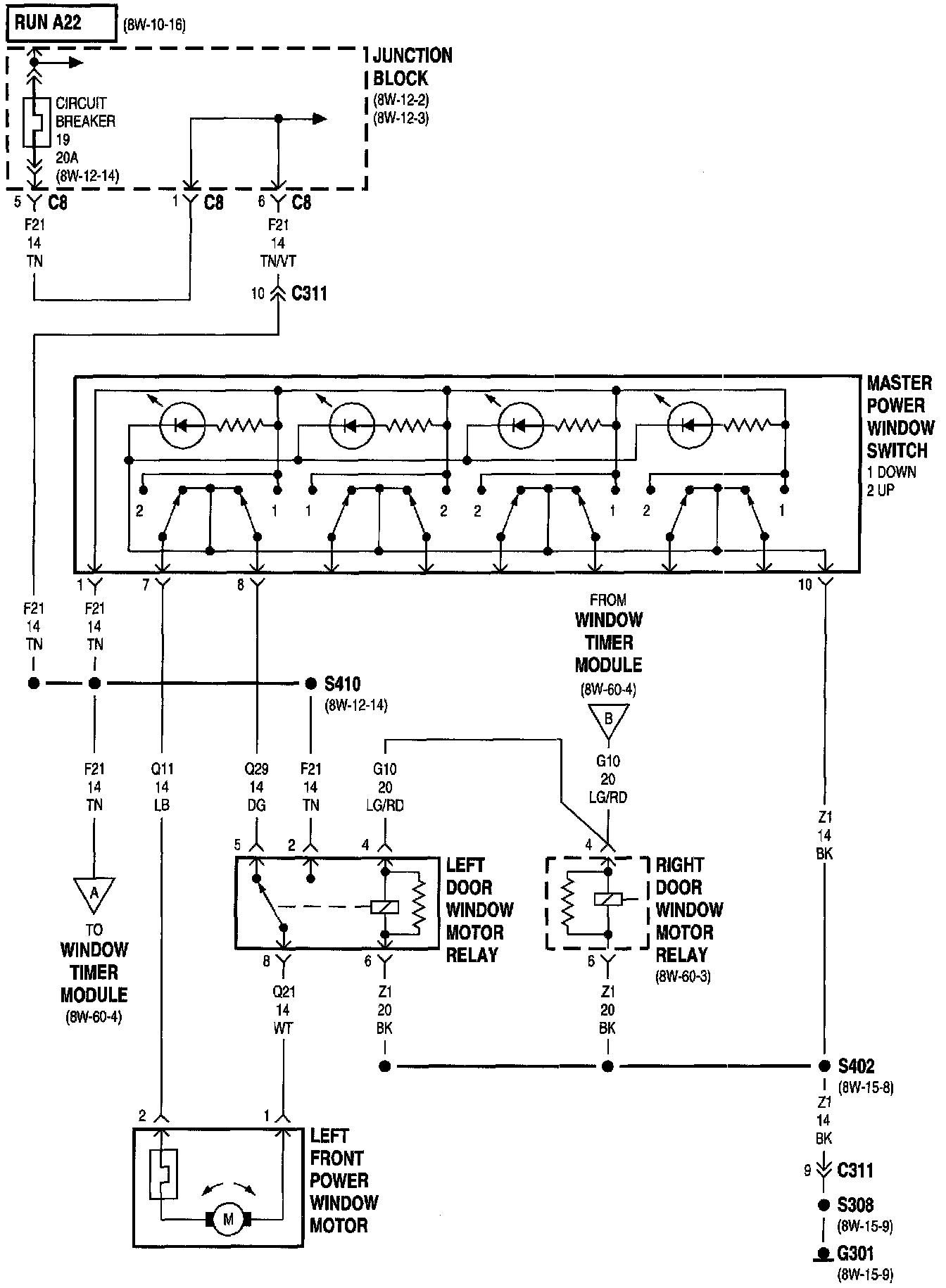

8w-60-2:

Circuit Breaker 19 (JB)
G301
Junction Block
Left Door Window Motor Relay
Left Front Power Window Motor
Master Power Window Switch
Right Door Window Motor Relay

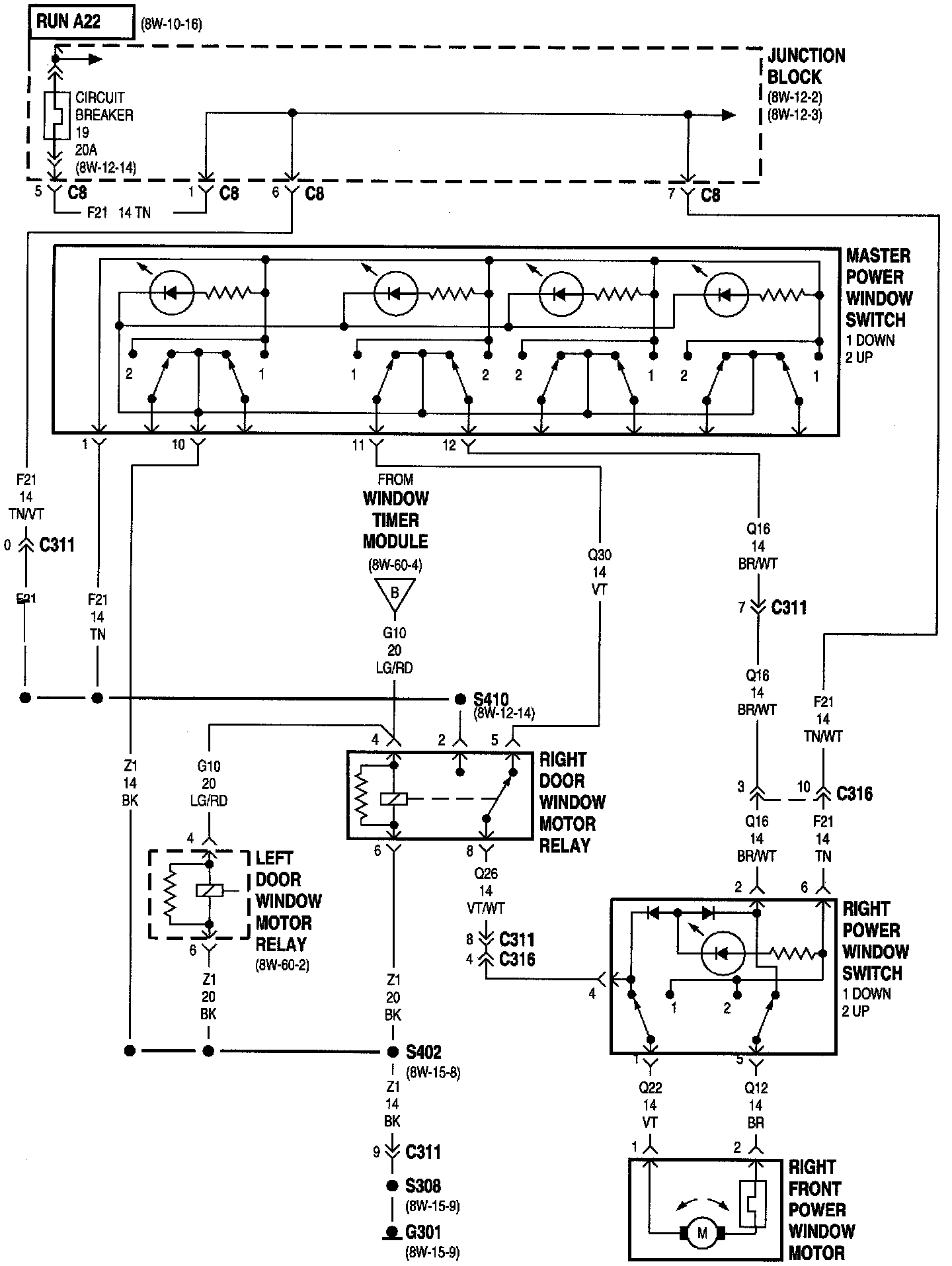

8w-60-3:

Circuit Breaker 19 (JB)
G301
Junction Block
Left Door Window Motor Relay
Master Power Window Switch
Right Door Window Motor Relay
Right Front Power Window Motor
Right Power Window Switch

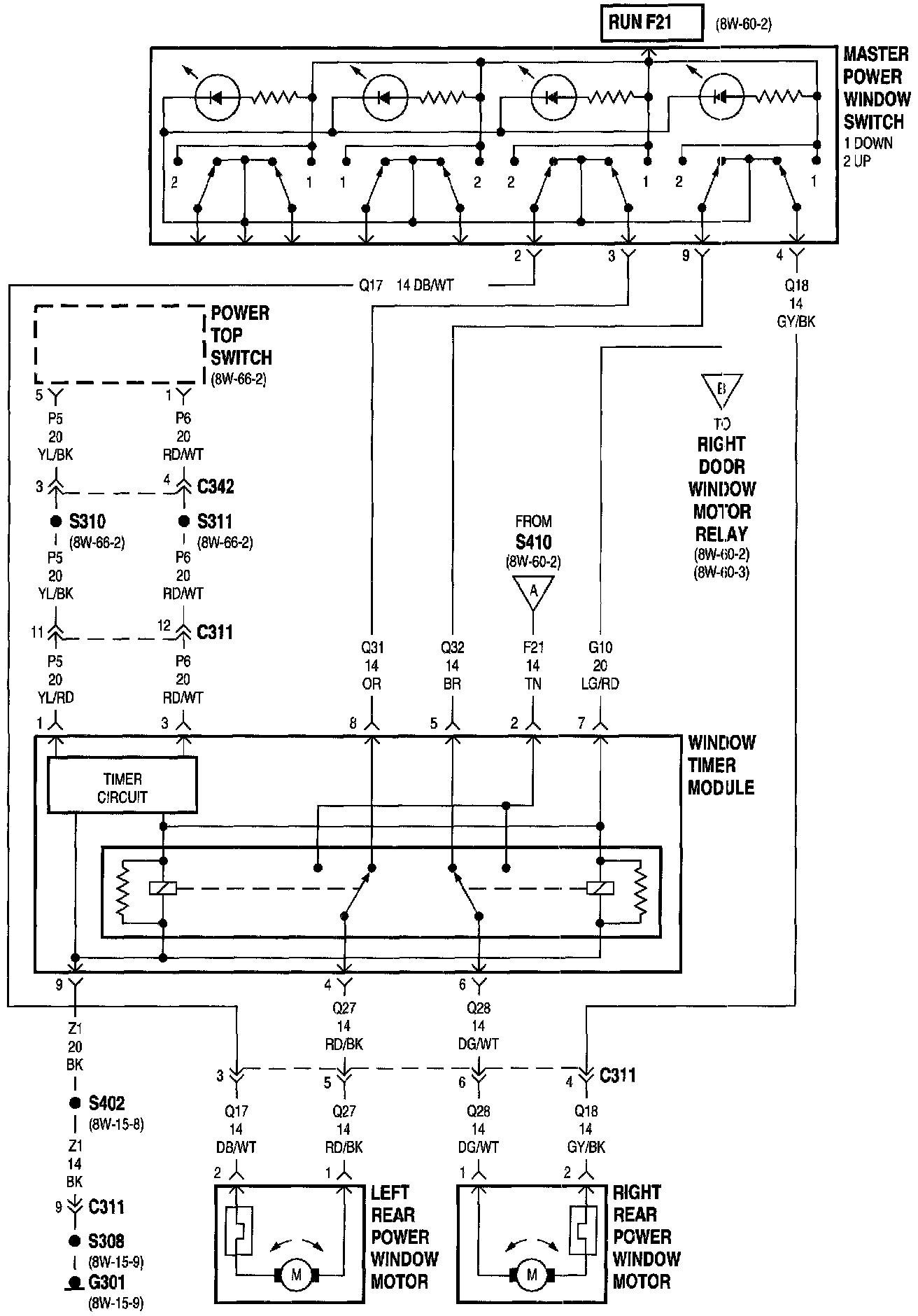

8w-60-4:

G301
Left Rear Power Window Motor
Master Power Window Switch
Power Top Switch
Right Rear Power Window Motor
Window Timer Module


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams Diagrams By Group Number.
