Axle Shaft: Application and ID

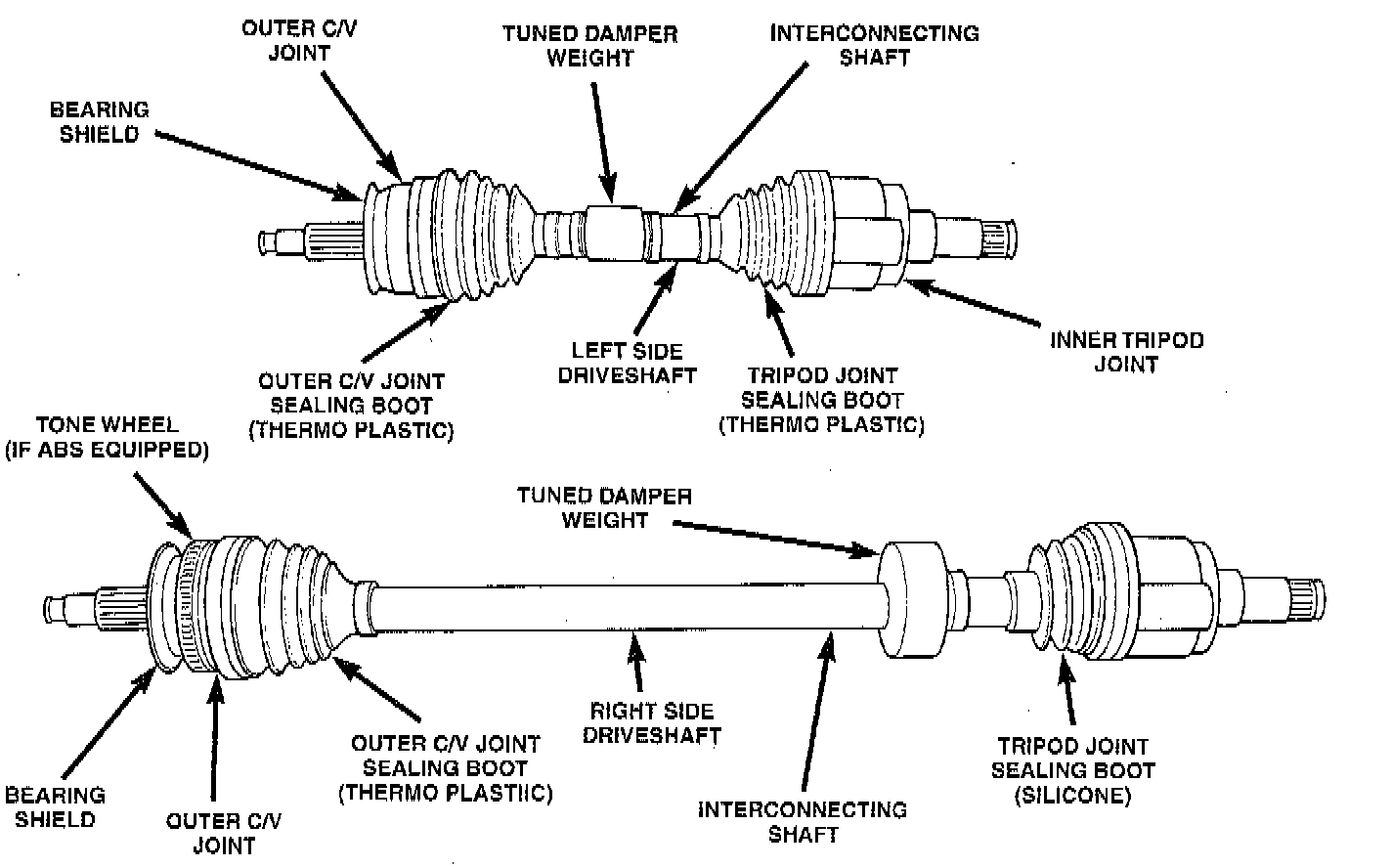

Driveshafts and driveshaft inner and outer boots can be identified as shown. Driveshaft boot location on the driveshaft assemblies, is determined by the number of convolutes used on the driveshaft boot. Refer to image for the correct location of the sealing boots.
