Traction Control Switch: Service and Repair

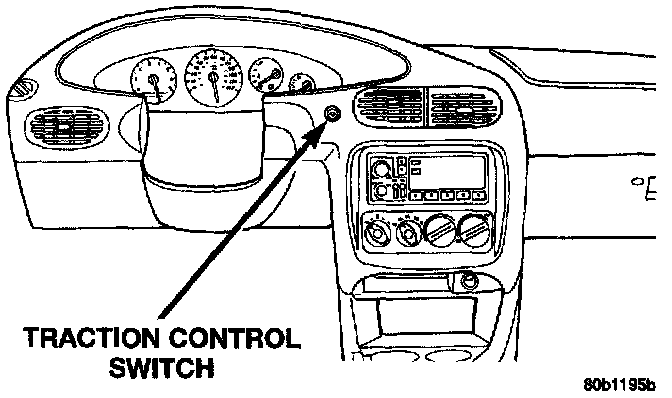

Traction Control Switch Location:

The Traction Control Switch is located within the instrument cluster hood, just to the right of the steering column. Removal of the cluster hood is necessary for switch service.

REMOVAL
1. Disconnect and isolate negative battery cable.
2. Remove cluster hood. Refer to Instrument Panel, Gauges and Warning Indicators/Instrument Panel/Cluster Hood Replacement for service procedures.
3. Disconnect harness connector from Traction Control Switch.
4. Gently push in on all four of the retaining tabs on back of switch. Push switch through front of cluster hood.
5. Remove switch from cluster hood.

INSTALLATION
For installation, reverse the above procedures.
