Driver Side Airbag Module Replacement

REMOVAL

WARNING:
- DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE BEFORE BEGINNING ANY AIRBAG SYSTEM COMPONENT REMOVAL OR INSTALLATION PROCEDURE. THIS WILL DISABLE THE AIRBAG SYSTEM. FAILURE TO DISCONNECT BATTERY COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.
- ALLOW SYSTEM CAPACITOR TO DISCHARGE FOR 2 MINUTES BEFORE REMOVING ANY AIRBAG COMPONENTS.

When removing a deployed module, rubber gloves, eye protection, and long sleeves should be worn, as there may be deposits on the surface that could irritate the skin and eyes.
1. Disconnect and isolate the battery negative cable.
2. Remove the speed control switches or covers from steering wheel back shroud and disconnect the wires.

Driver Airbag Module:

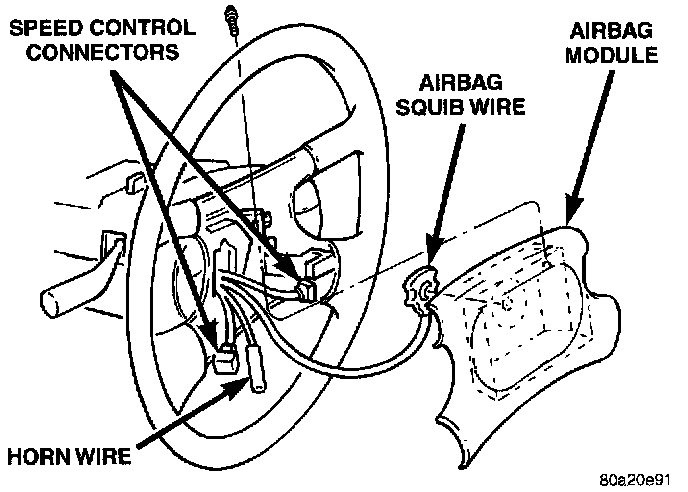

3. Remove two bolts attaching the Driver Airbag Module from the sides of steering wheel.
4. Lift module and disconnect the airbag squib wire connector and the horn wire.
5. Remove the Driver Airbag Module.
6. When replacing a deployed Driver Airbag Module, the clockspring must also be replaced. Refer to Clockspring Replacement for the proper procedure.

INSTALLATION
For installation reverse the above procedures.
1. Connect the squib wire to the Driver Airbag Module. Make the airbag connection by pressing straight in on the connector. The connector should be fully seated. Feel for positive snap to ensure a positive connection.
2. Connect the horn wire.
3. Install two bolts and tighten to 10 to 11 N.m (90 to 100 in. lbs.) torque.
4. Install covers to the steering wheel back shroud or connect the wire connectors to the speed control switches and install switches. Tighten fastener to 2 N.m (20 in. lbs.) torque.
5. Do not connect the battery negative cable. Refer to Diagnosis and Testing for Airbag System Test procedures.
