ABS Main Relay: Description and Operation

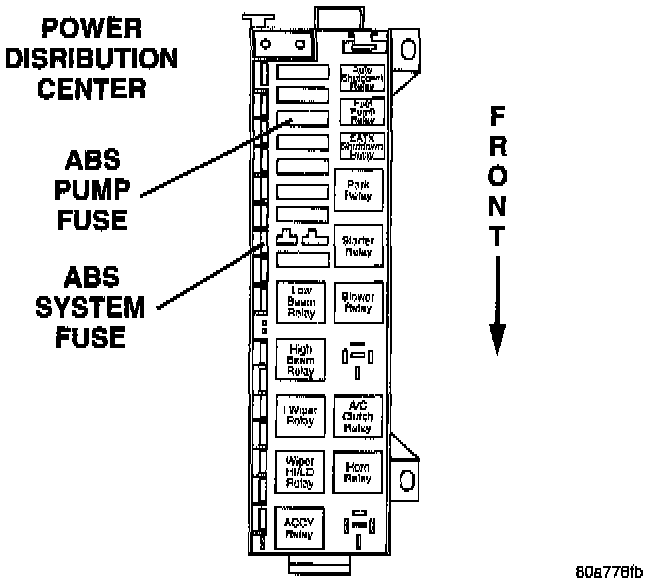

ABS FUSESFuse Locations In Power Distribution Center:
The fuse for the ABS pump motor and the ABS system are located in the Power Distribution Center (PDC). The PDC is located on the drivers side of the engine compartment forward of the strut tower.
ABS RELAYS
On the Teves Mark 20 Antilock Brake System both the pump motor relay and the system relay are located in the CAB. If either of the relays is diagnosed as not functioning properly the CAB will need to be replaced.
