Emissions - EGR/EVAP Test Revisions

NUMBER: 26-05-98L

GROUP: Miscellaneous

DATE: May, 1998

REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN

Models:
1998 2.0L, 2.4L, 2.5L Dodge, Plymouth Powertrain Diagnostic Manual - Publication Number 81-699-97108

DESCRIPTION OF CHANGES

Revisions to the EGR Solenoid test





120

Revisions to the Evap Leak detection tests

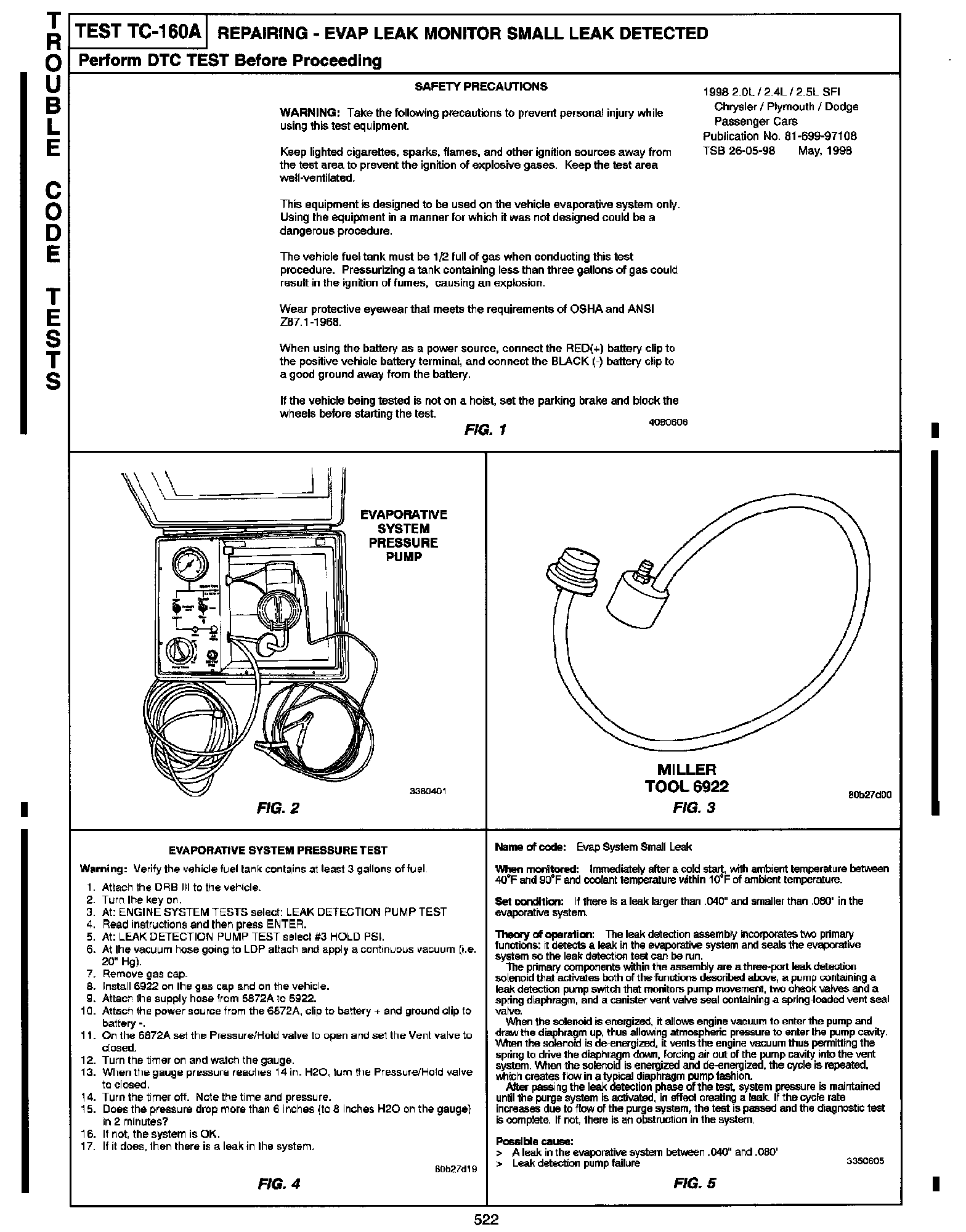

522

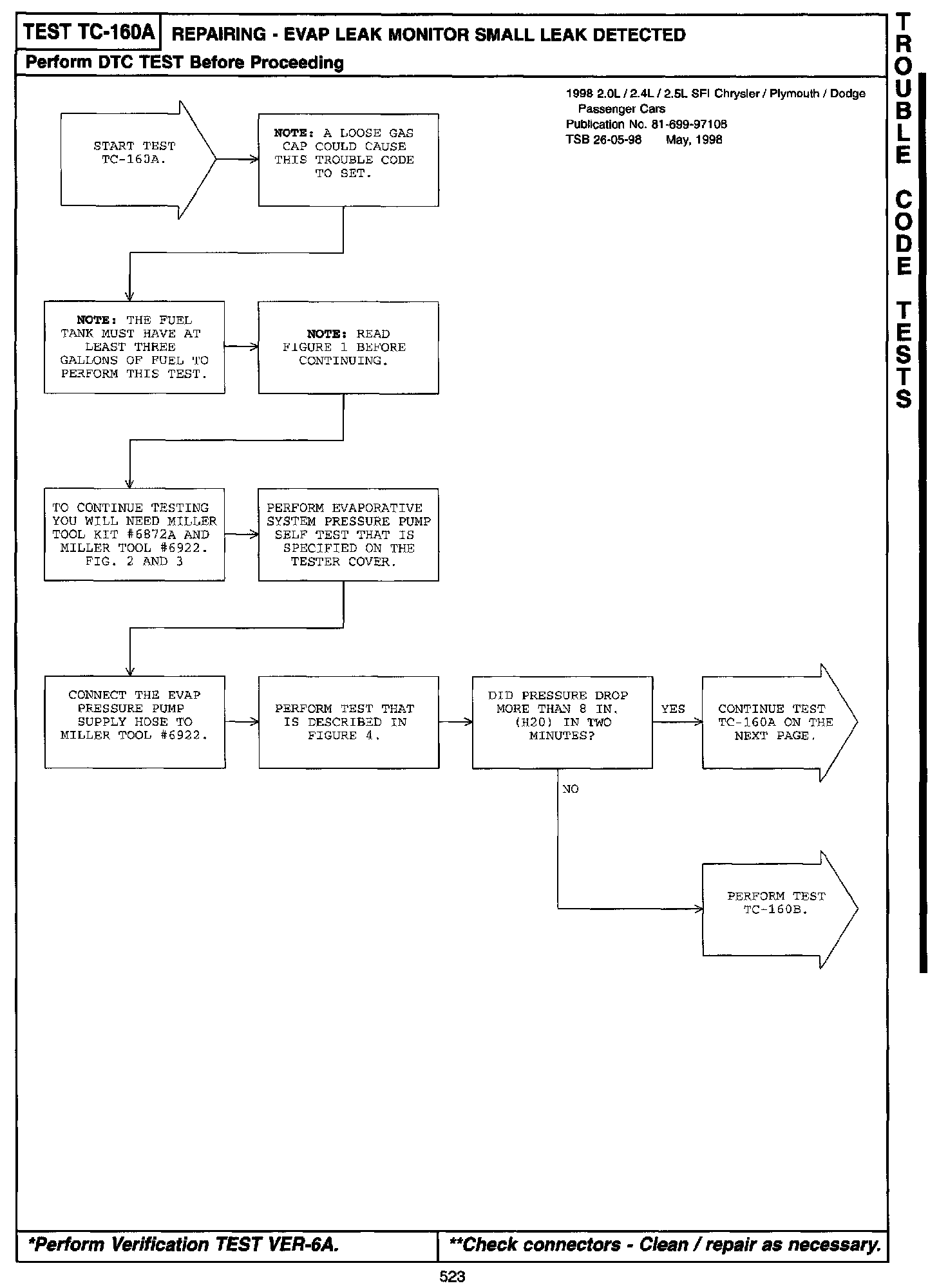

523





524

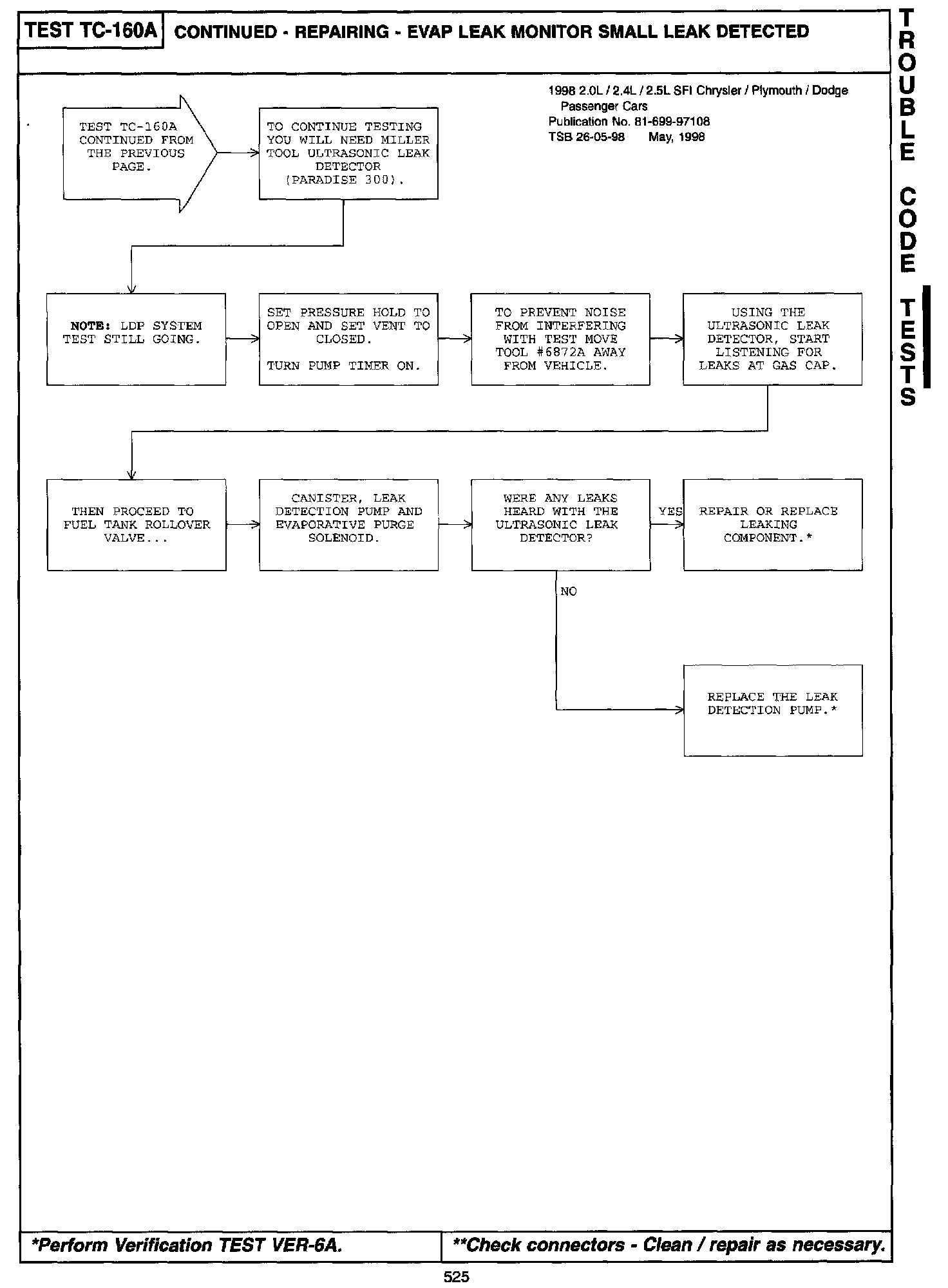

525

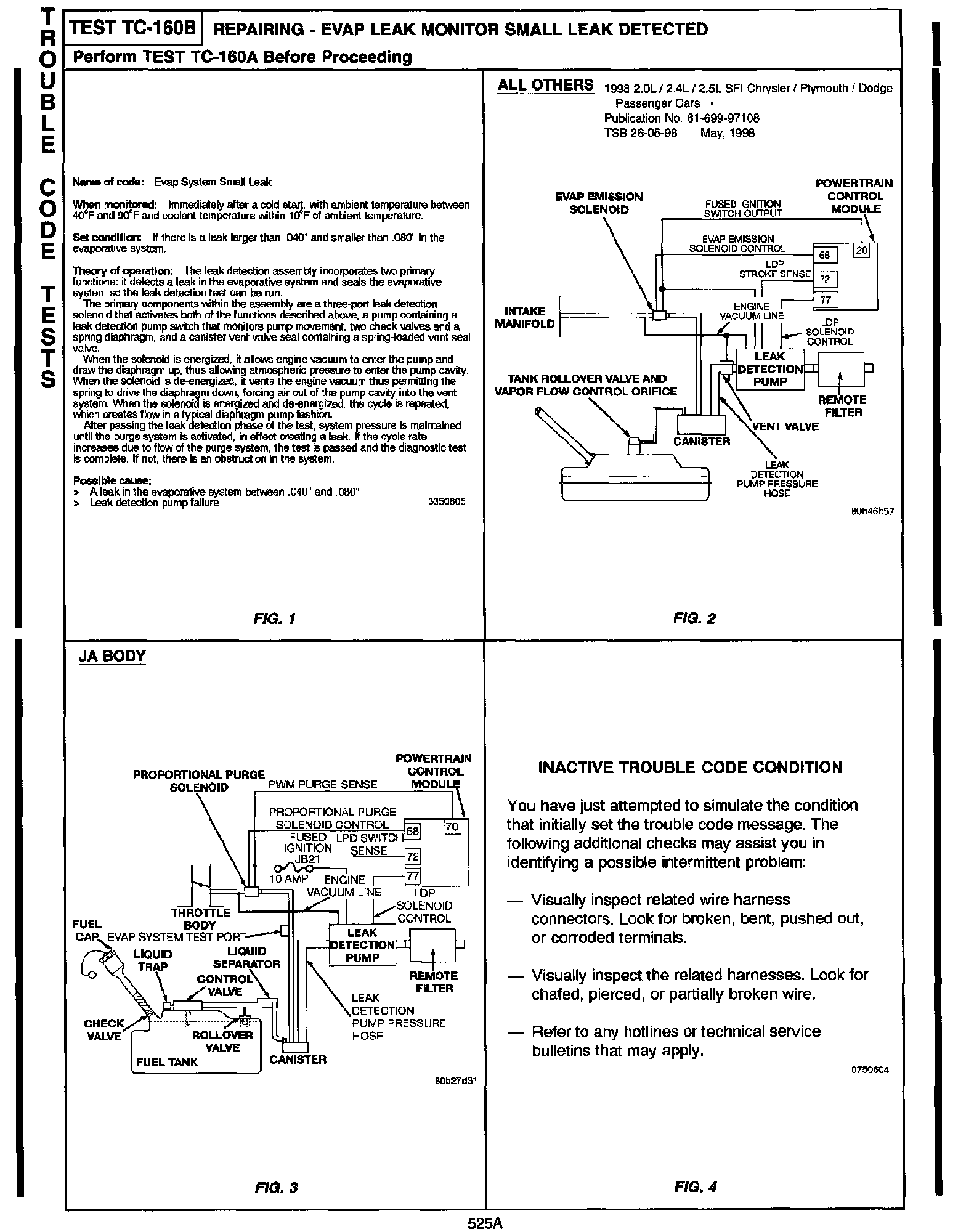

525A

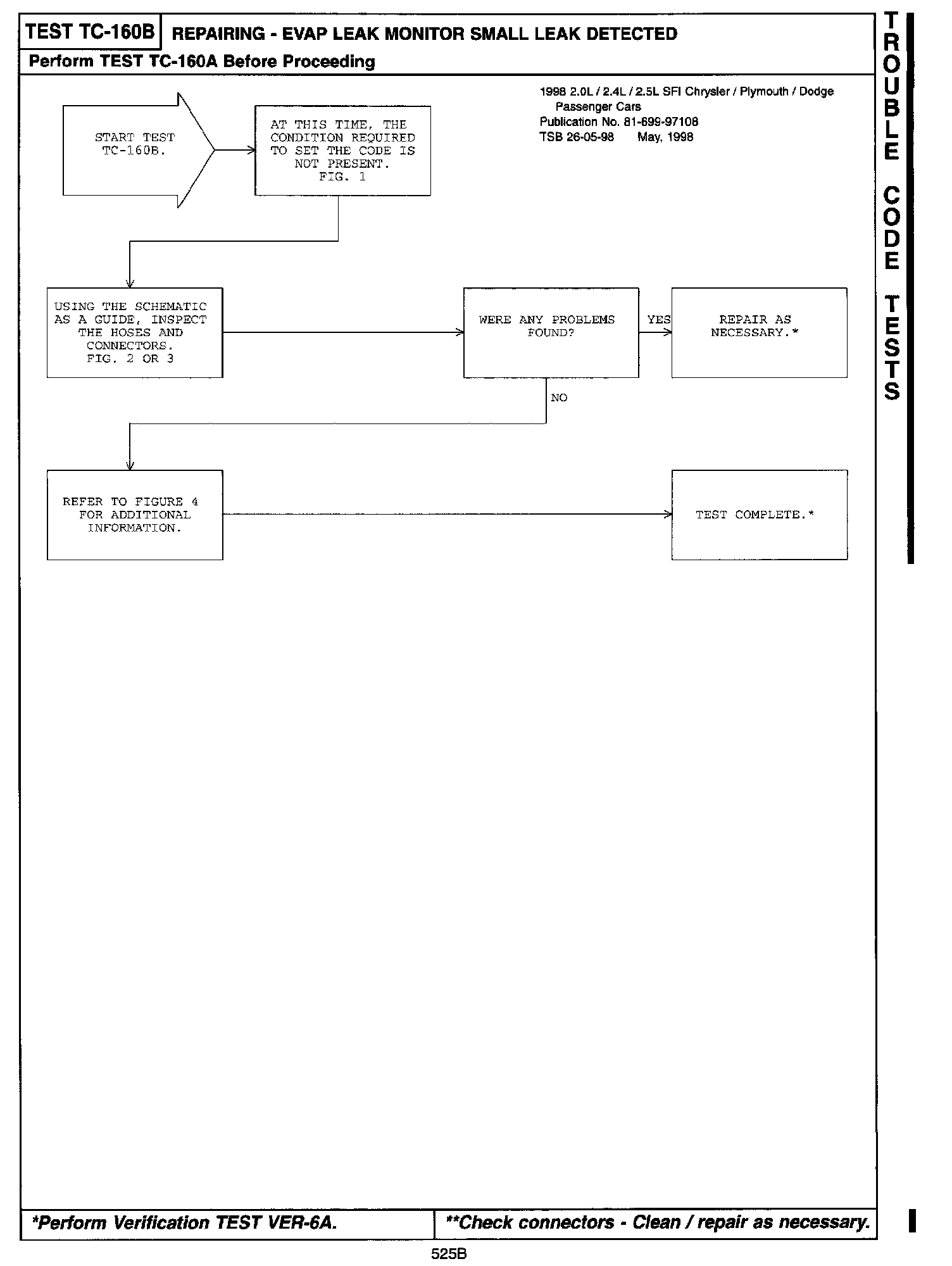

525B

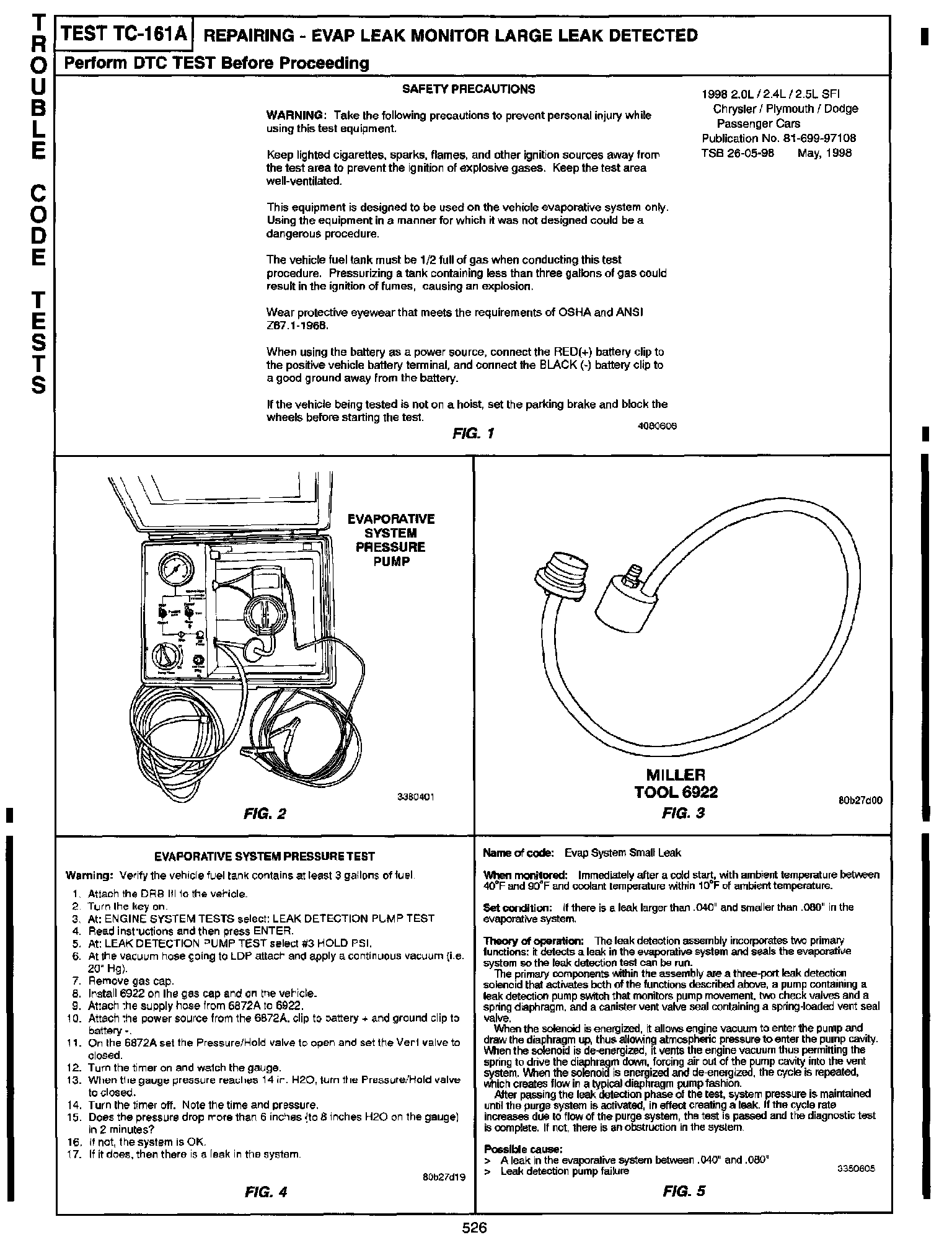

526

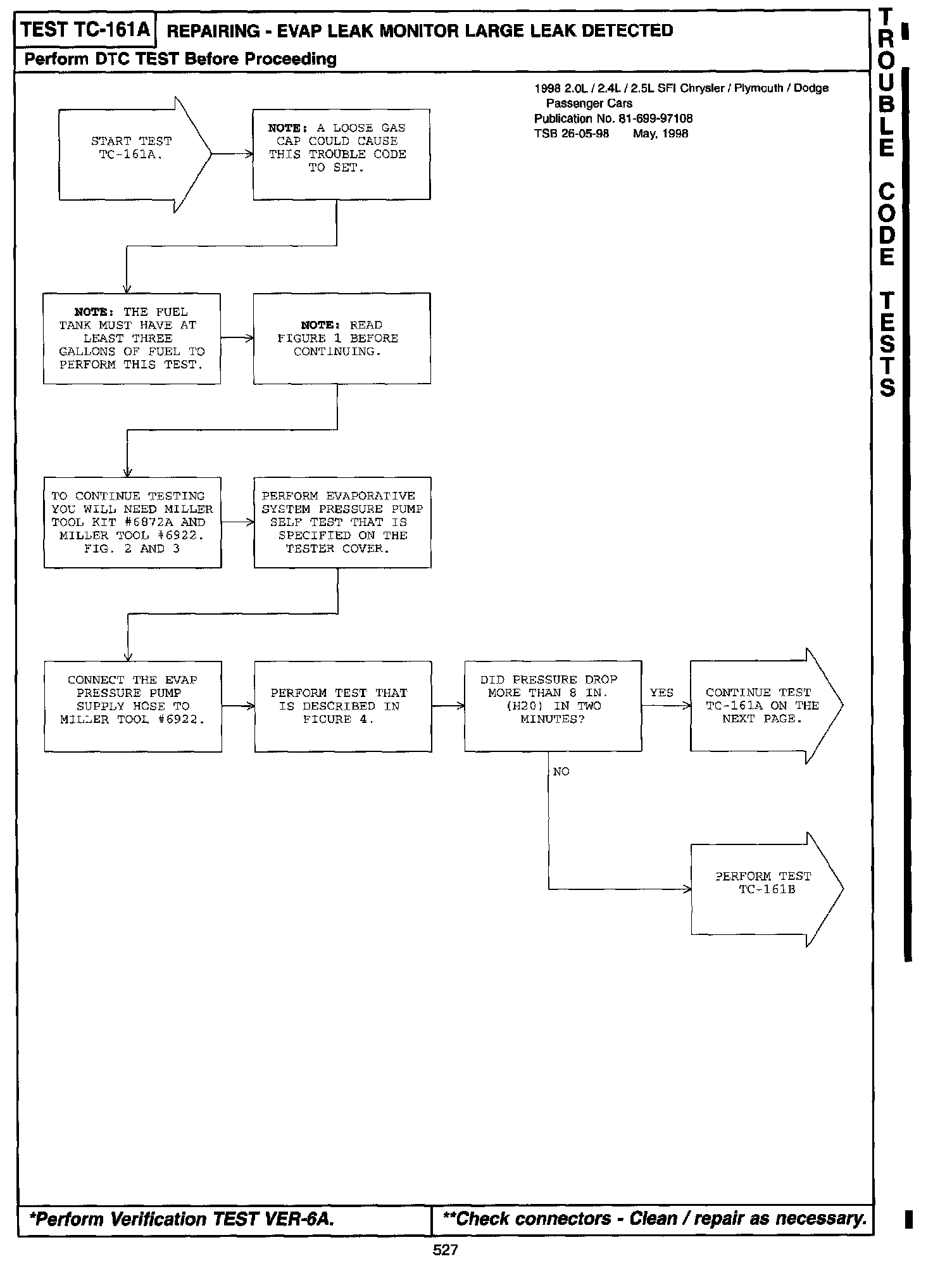

527

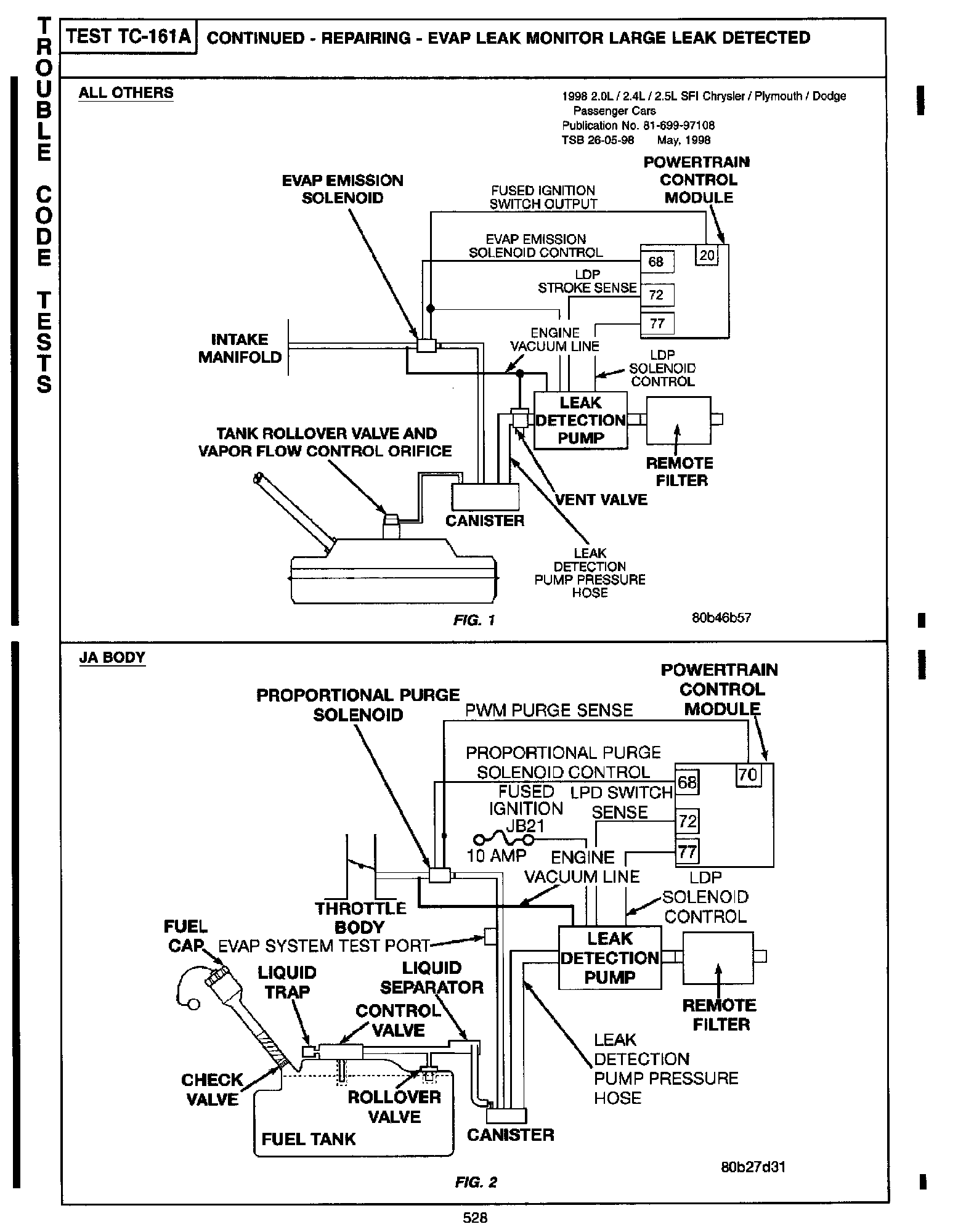

528

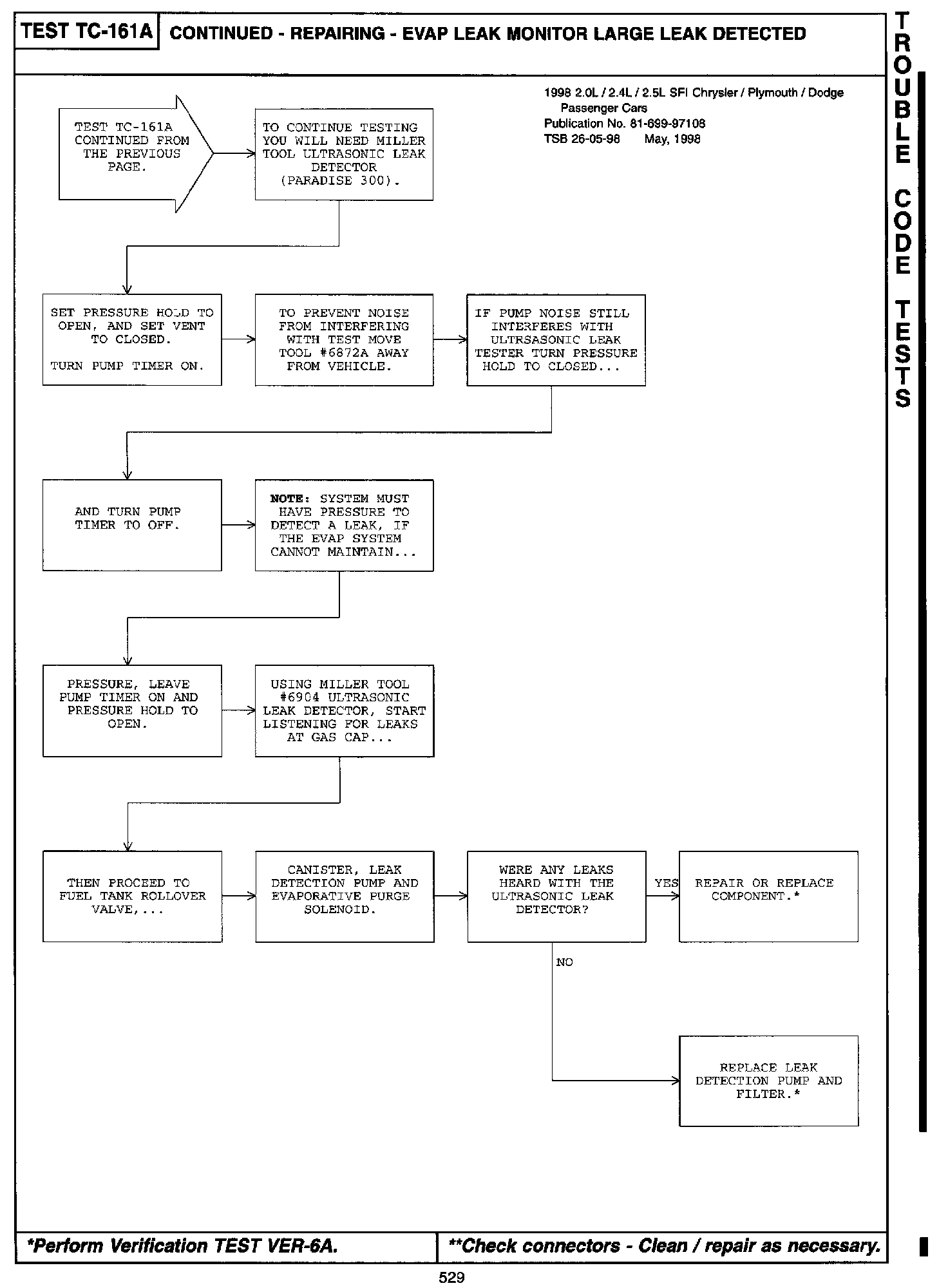

529

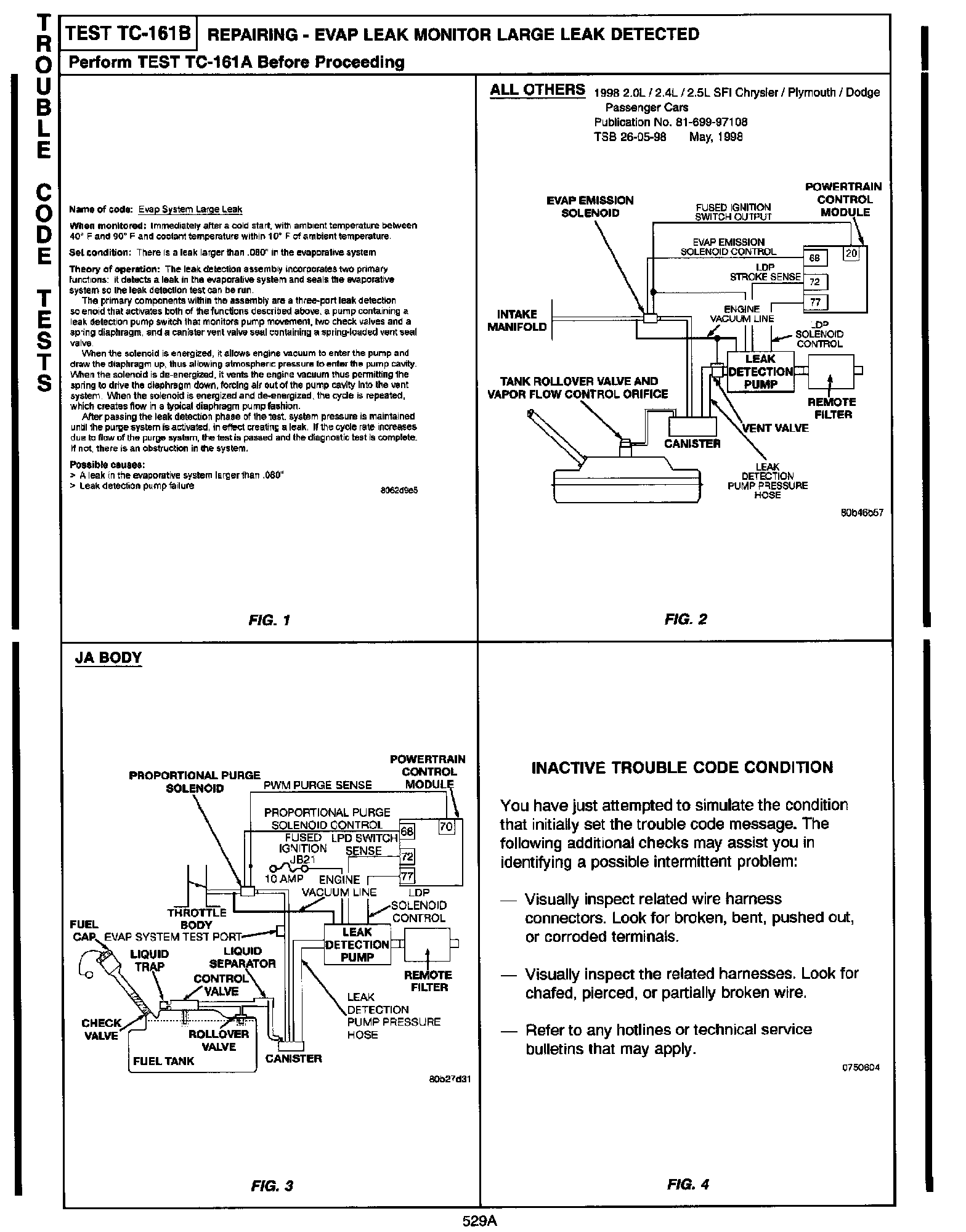

529A

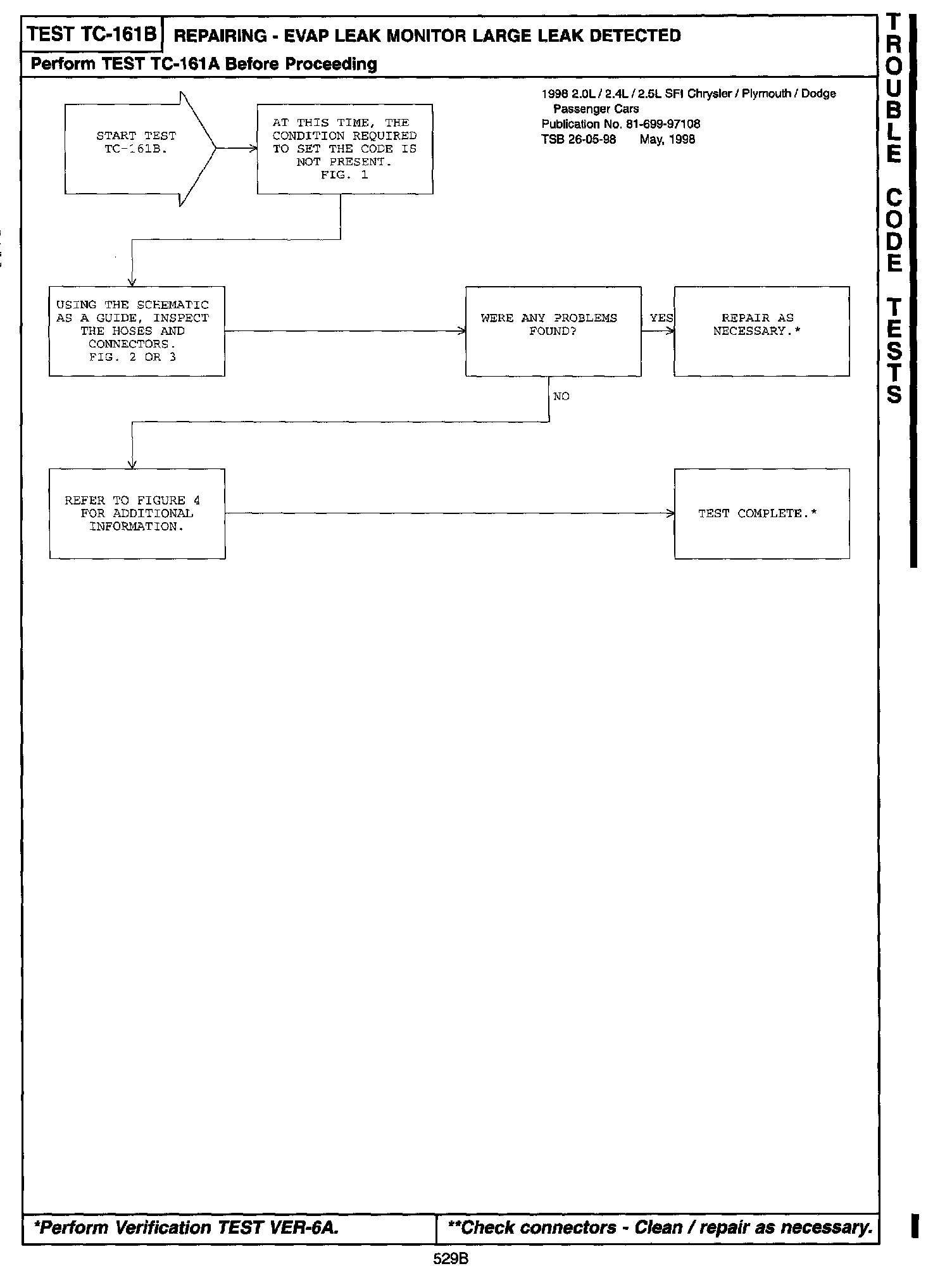

529B

Revisions to the Leak detection pump switch test

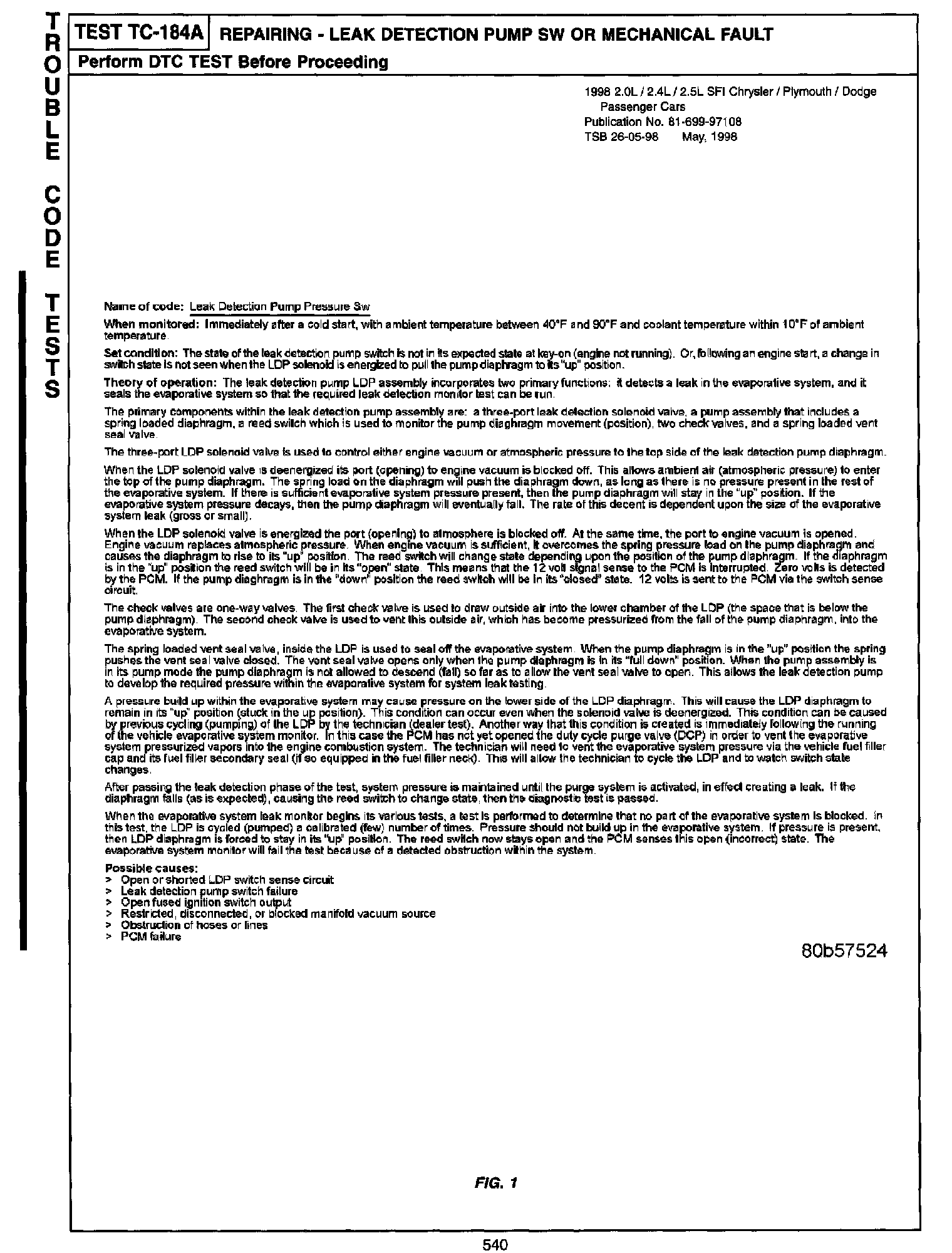

540

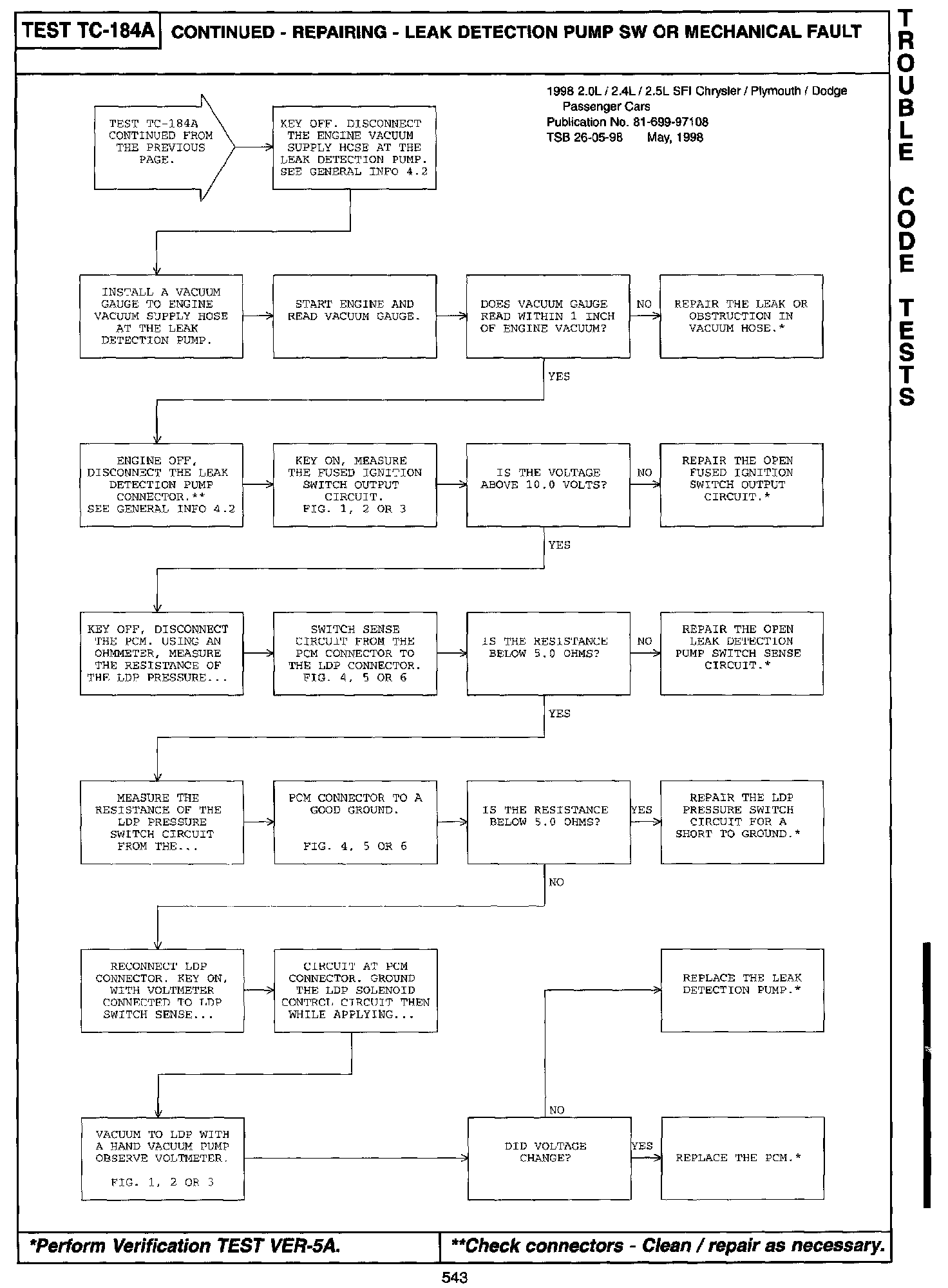

543
