NS-9C Repairing A No Crank Condition

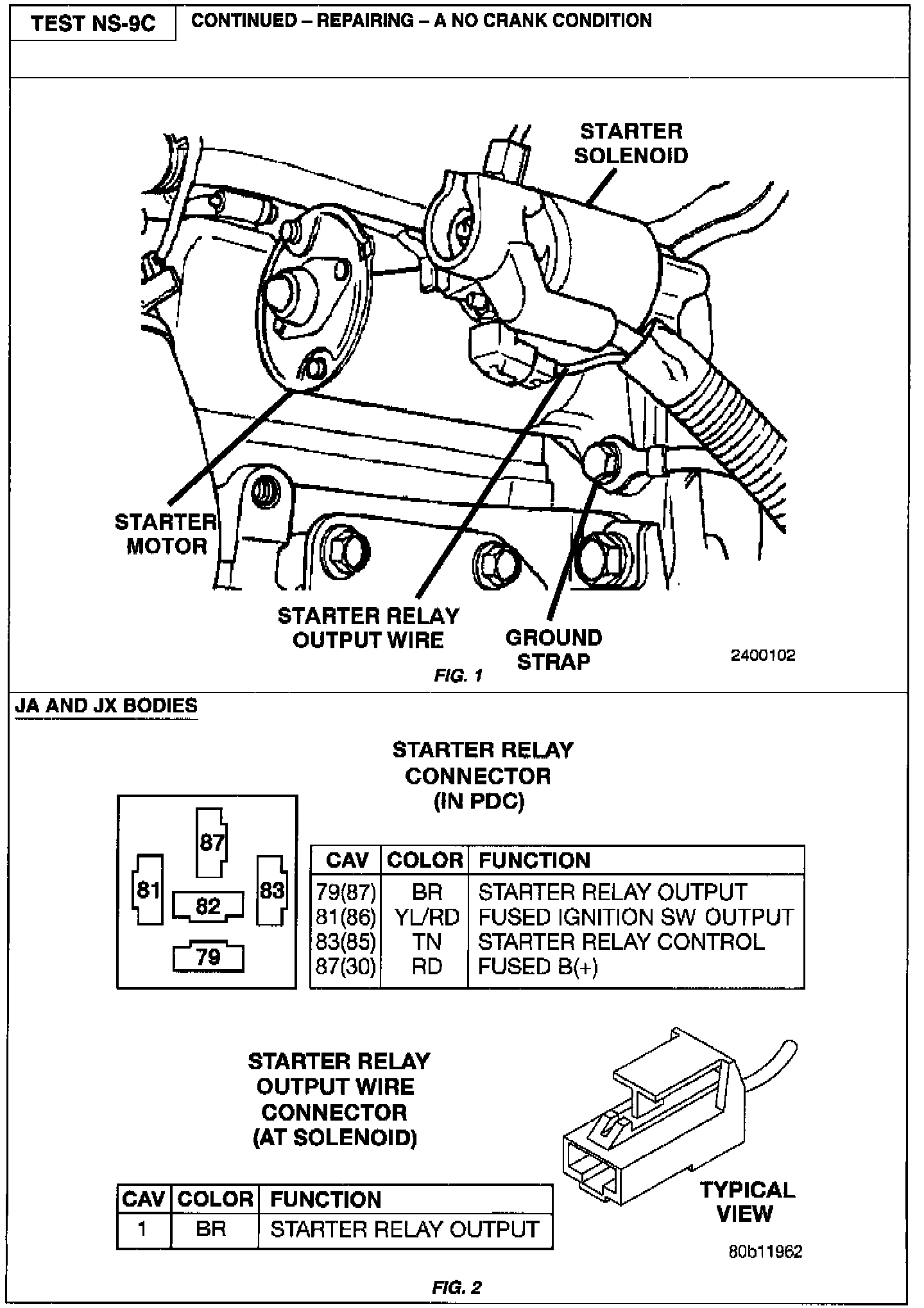

Related Image:

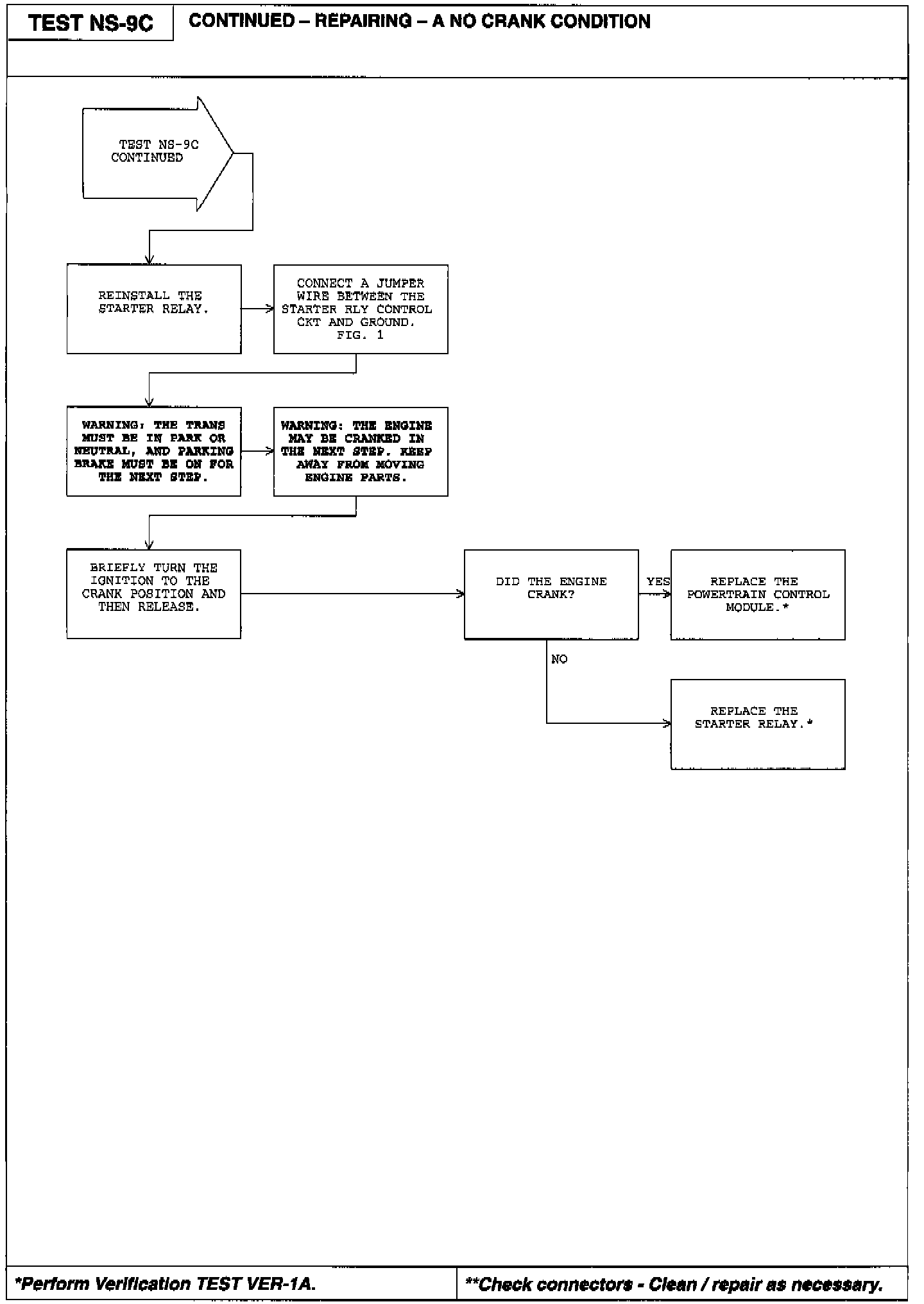

Diagnostic Chart:
Related Image:

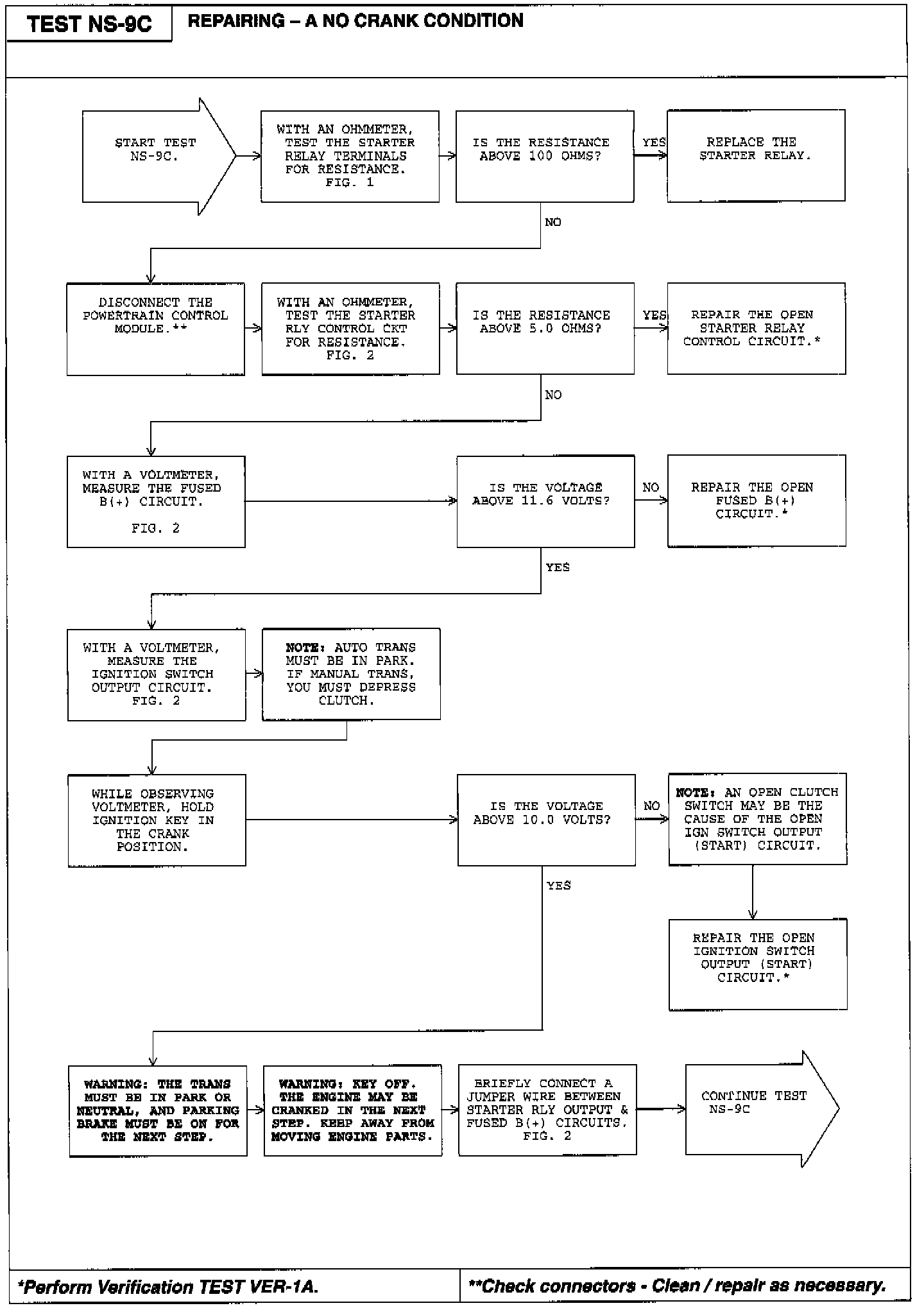

Diagnostic Chart:

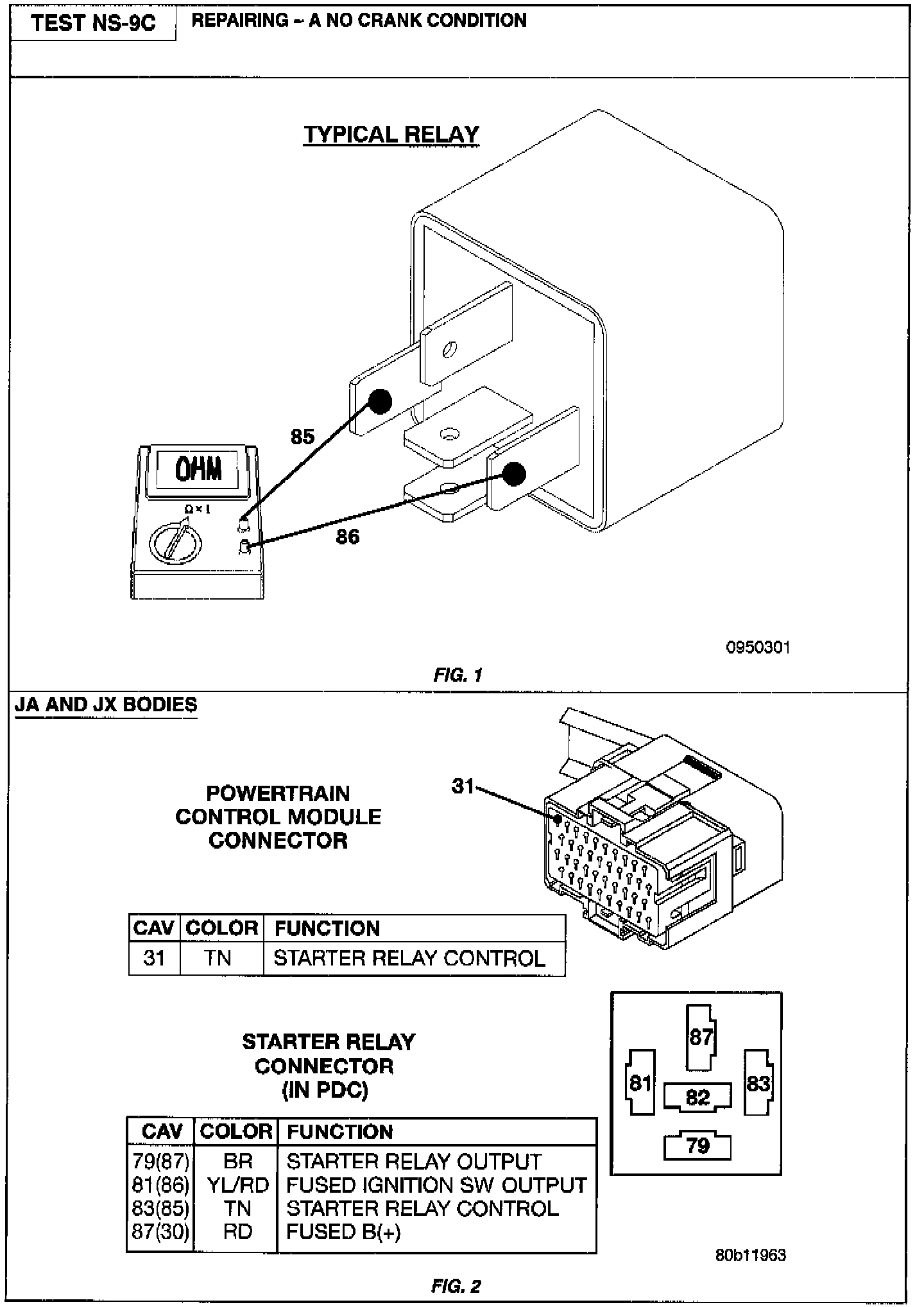

Related Image:
Diagnostic Chart:
