Home >> Chrysler >> 1998 >> Sebring Convertible V6-2.5L VIN H >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Start Test >> No Start (NS) Tests >> NS-4C Repairing Low Fuel Pressure

NS-4C Repairing Low Fuel Pressure

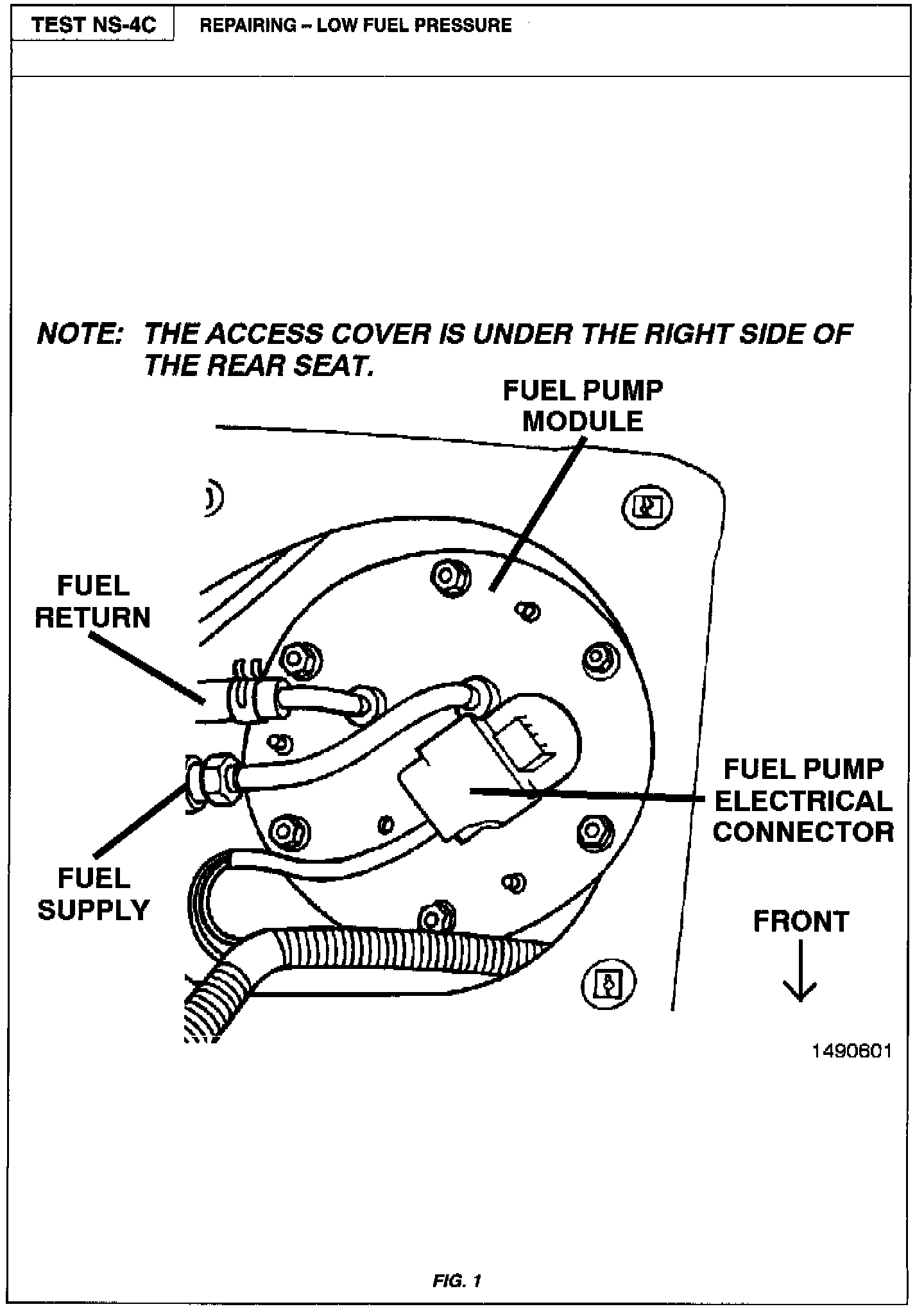

Related Image:

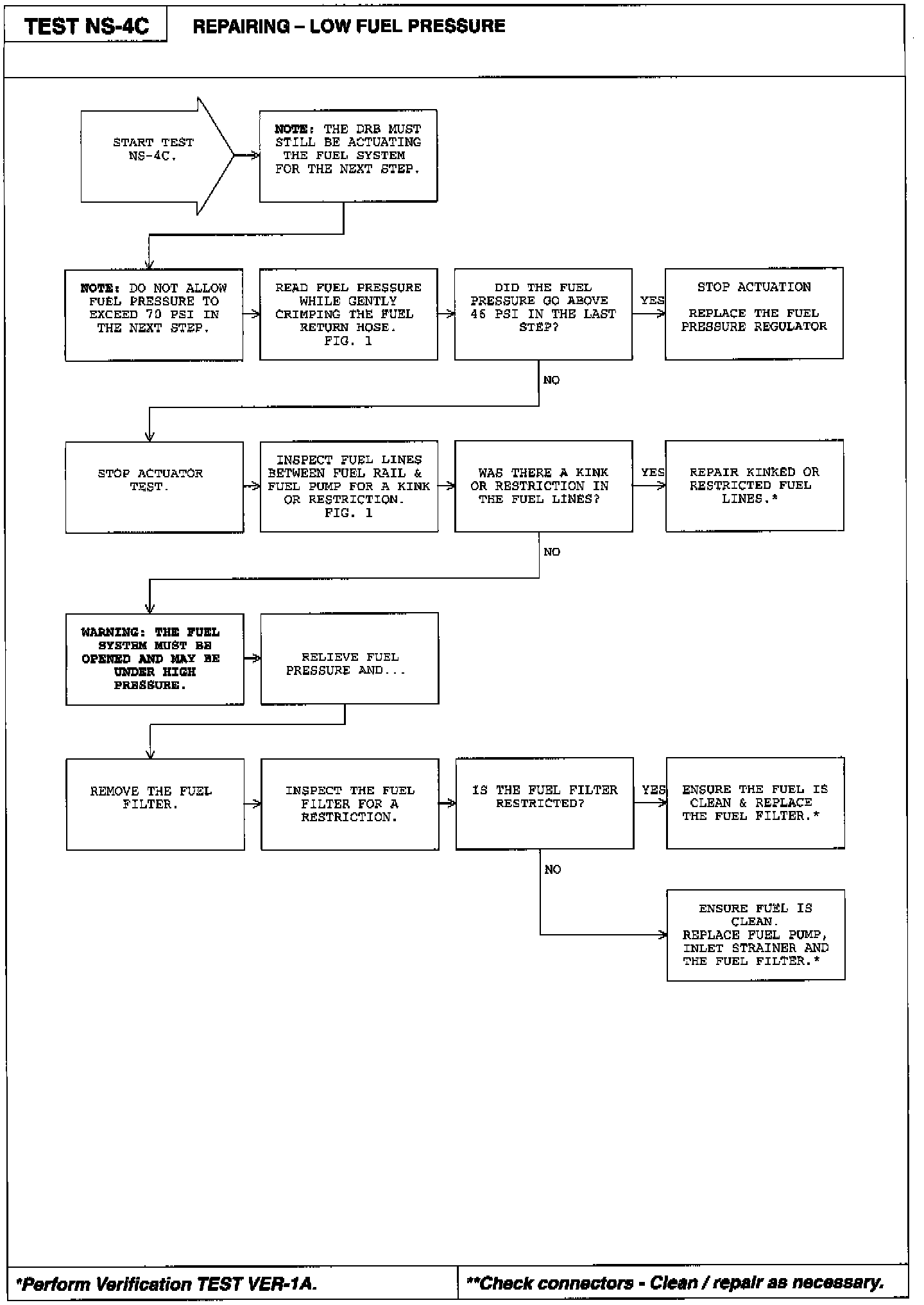

Diagnostic Chart:
