No Start (NS) Tests
>>
NS-4B Checking High Fuel Pressure
NS-4B Checking High Fuel Pressure

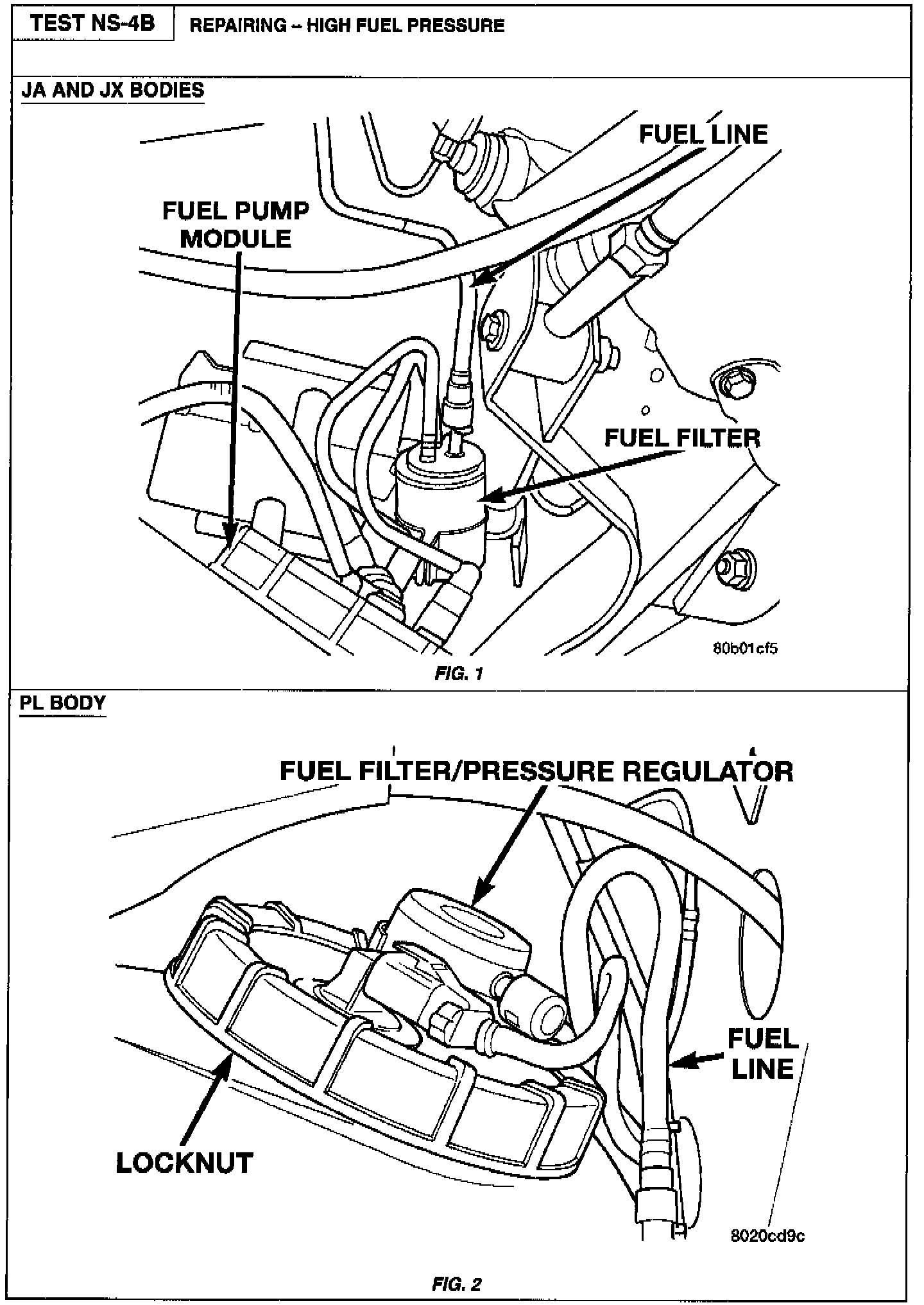

Related Image:

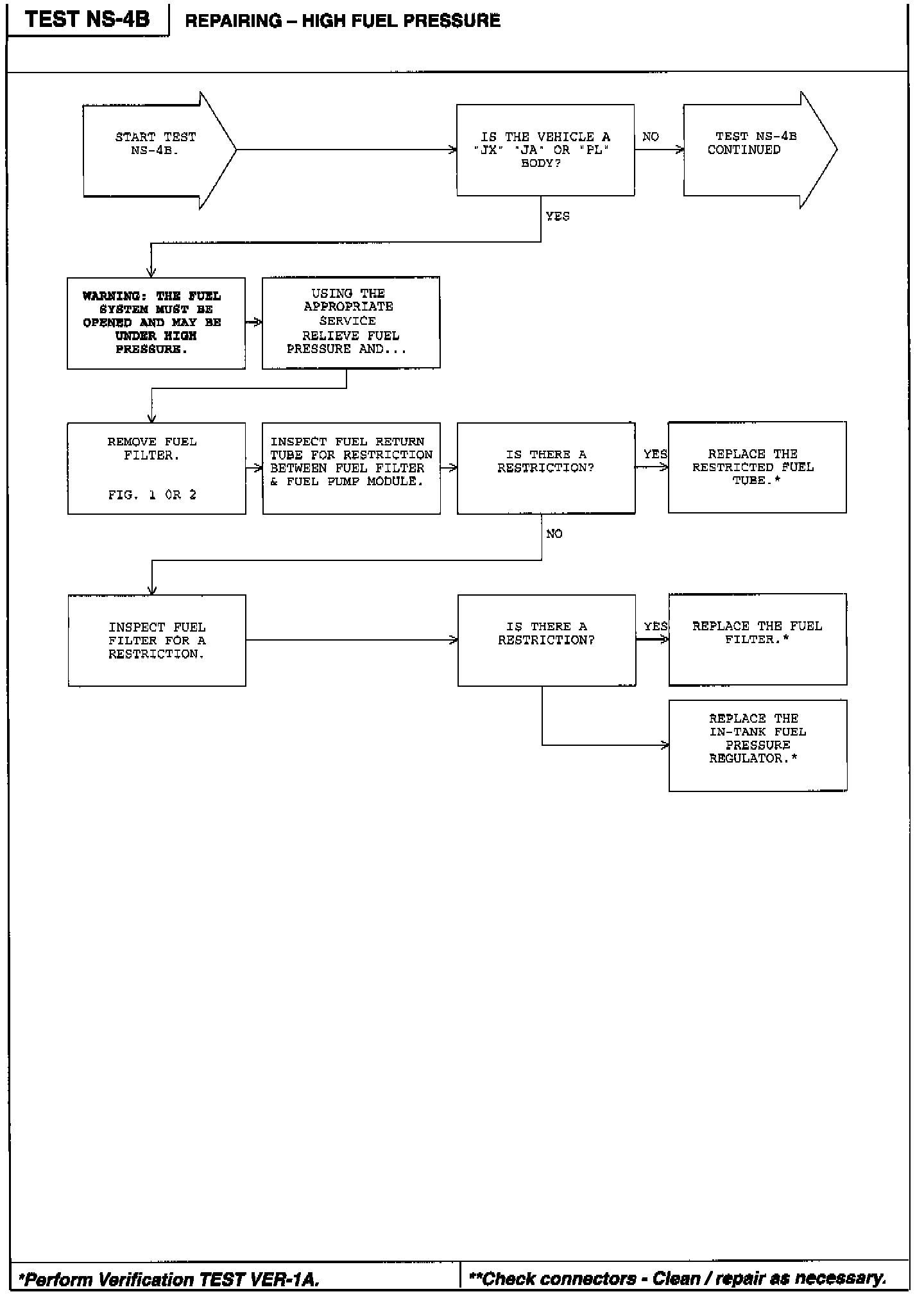

Diagnostic Chart:

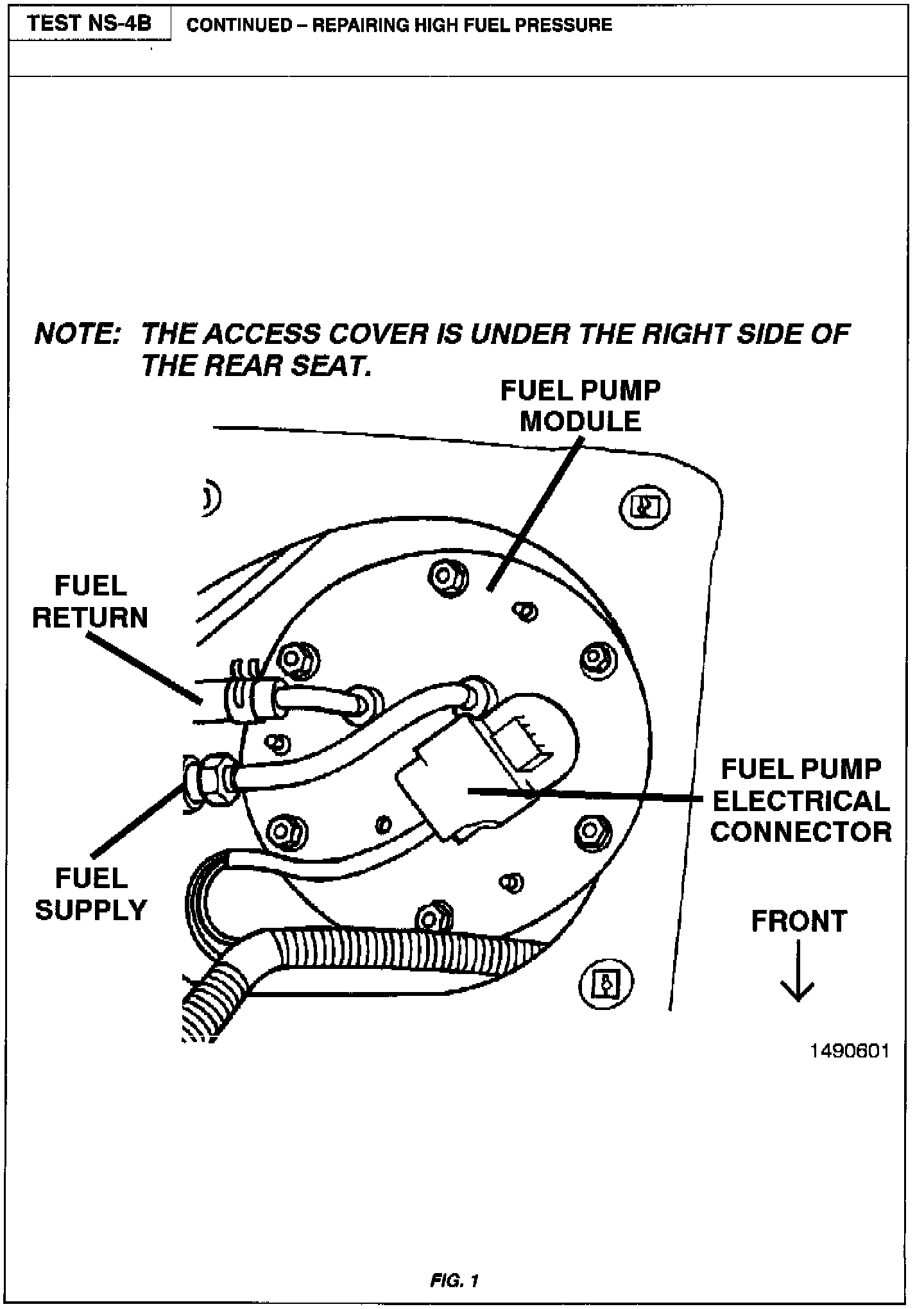

Related Image:

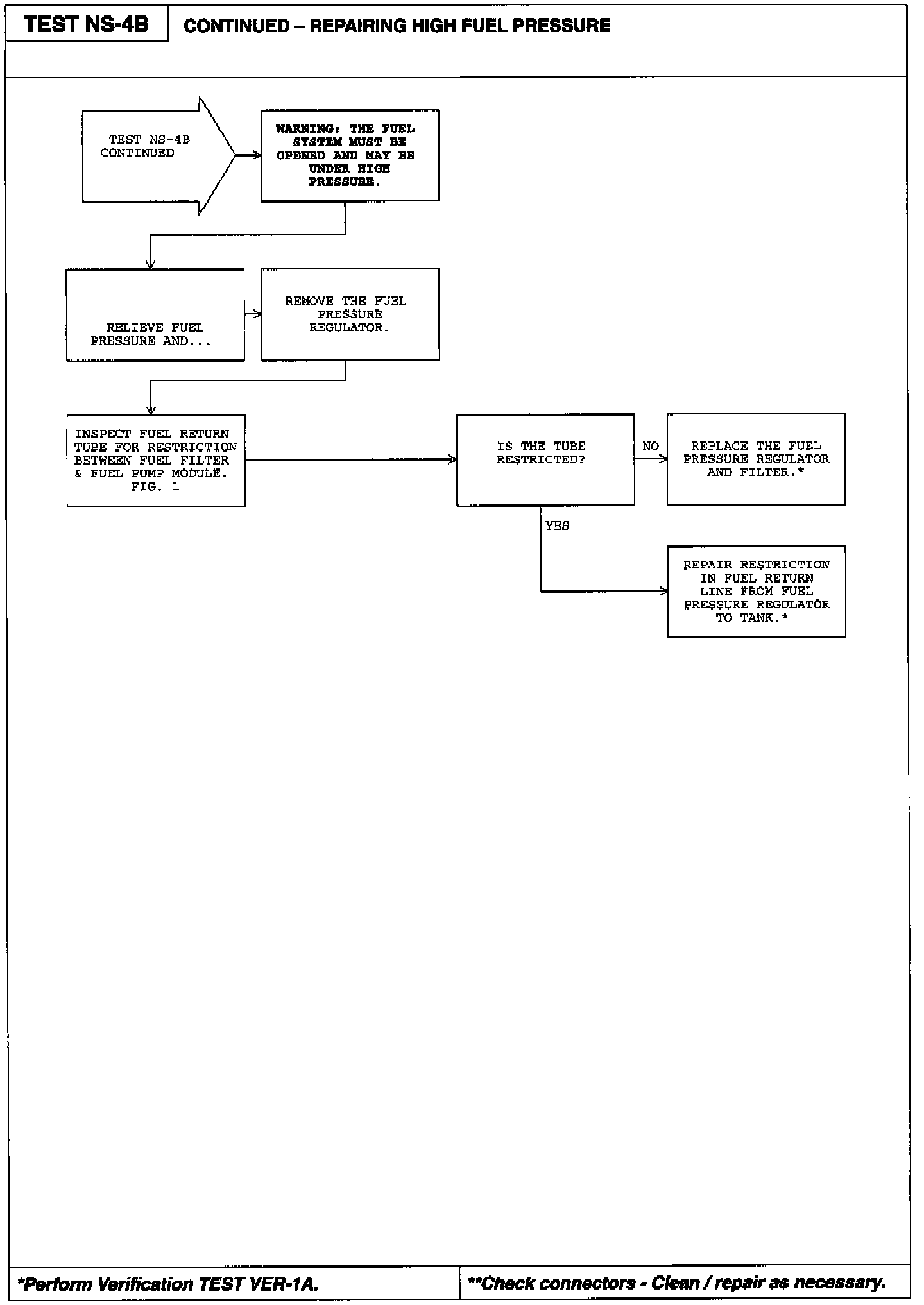

Diagnostic Chart:
