Electrical Diagrams: Diagrams

8w-12-5:

Blower Motor Resistor Block
Body Control Module
Daytime Running Lamp Module
Fuse 1 (JB)
Fuse 2 (JB)
Fuse 3 (JB)
Headlamp Switch
Junction Block
Left Headlamp
Right Headlamp

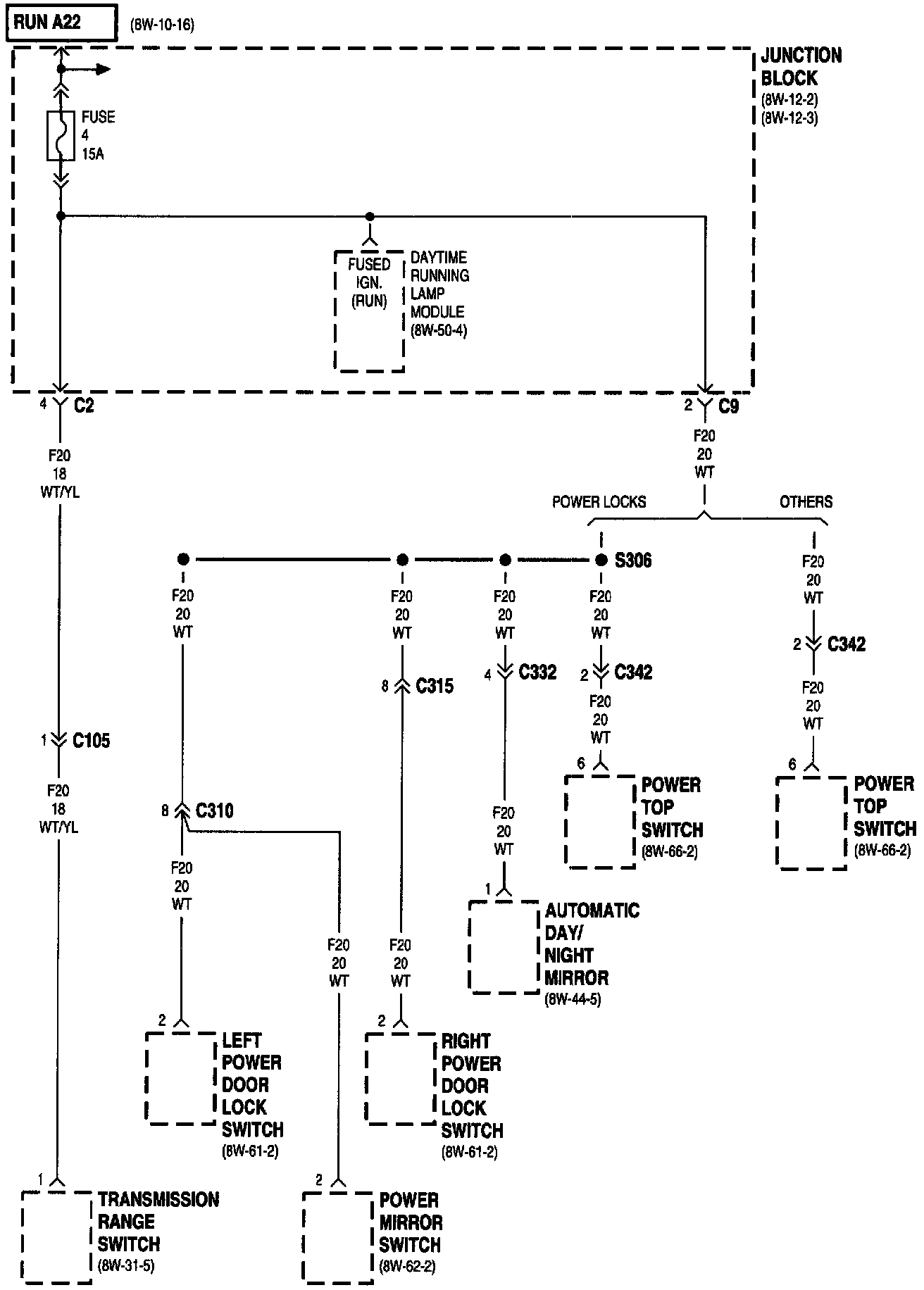

8w-12-6:

Automatic Day/Night Mirror
Daytime Running Lamp Module
Fuse 4 (JB)
Junction Block
Left Power Door Lock Switch
Power Mirror Switch
Power Top Switch
Right Power Door Lock Switch
Transmission Range Switch
S306

8w-12-7:

Body Control Module
Data Link Connector
Fuse 5 (JB)
Glove Box Lamp
Junction Block
Key-In Halo Lamp
Left Visor/Vanity Lamp
Overhead Map Lamp
Power Amplifier
Power Antenna
Radio
Right Visor/Vanity Lamp
Traveler
Trunk Lamp
S302

8w-12-8:

Illuminated Entry Relay
Junction Block
Left Door Arm/Disarm Switch
Left Door Courtesy Lamp
Left Power Door Lock Switch
Rear Floor Courtesy Lamp
Right Door Arm/Disarm Switch
Right Door Courtesy Lamp
Right Power Door Lock Switch
S400
S401

8w-12-9:

A/C Heater Control
Fuse 6 (JB)
Fuse 7 (JB)
Headlamp Switch
Instrument Cluster
Left Power Mirror
Rear Window Defogger
Rear Window Defogger Relay
Right Power Mirror

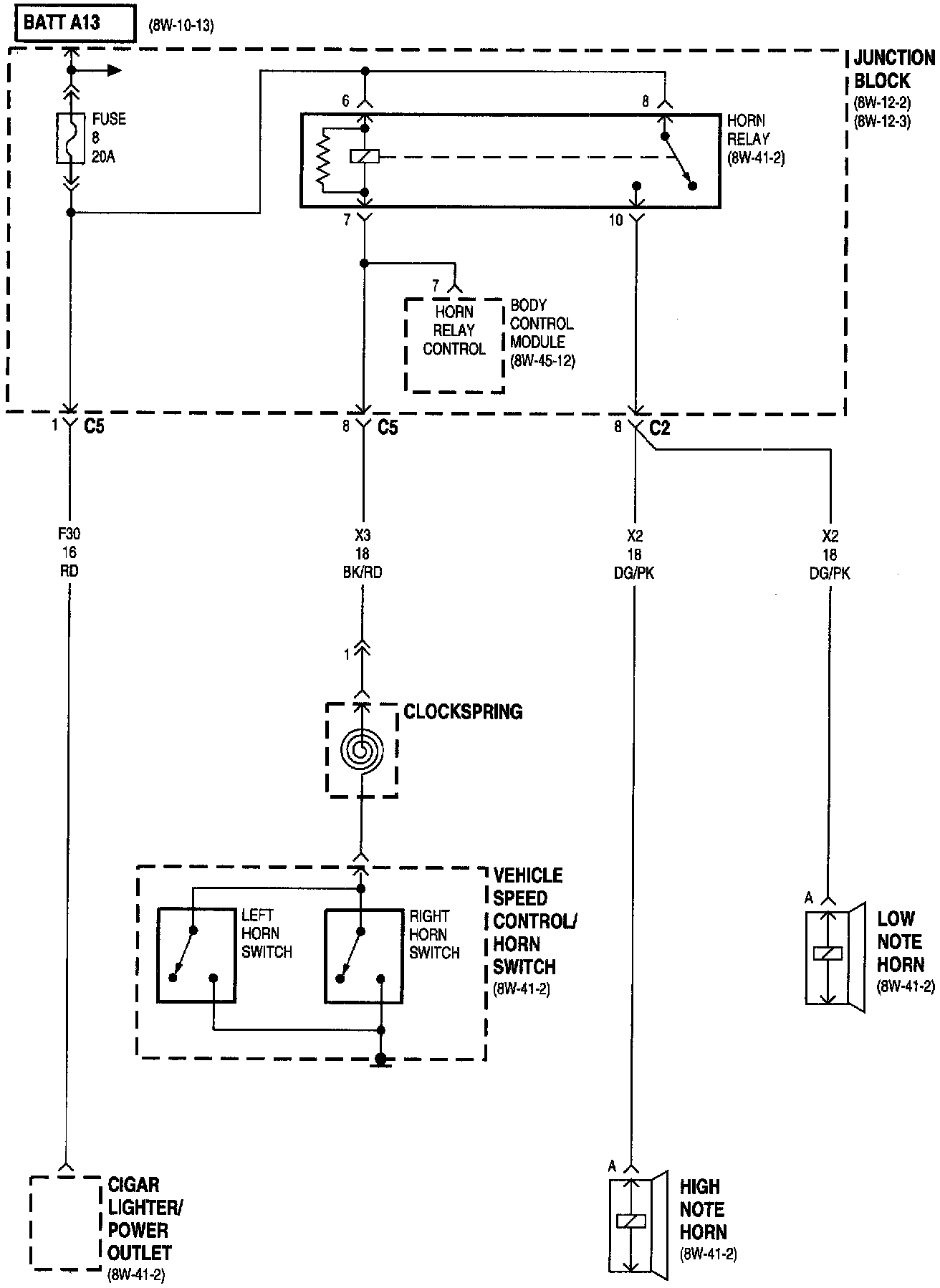

8w-12-10:

Body Control Module
Cigar Lighter/Power Outlet
Clockspring
Fuse 8 (JB)
High Note Horn
Horn Relay
Junction Block
Left Horn Switch
Low Note Horn
Right Horn Switch
Vehicle Speed Control/Horn Switch

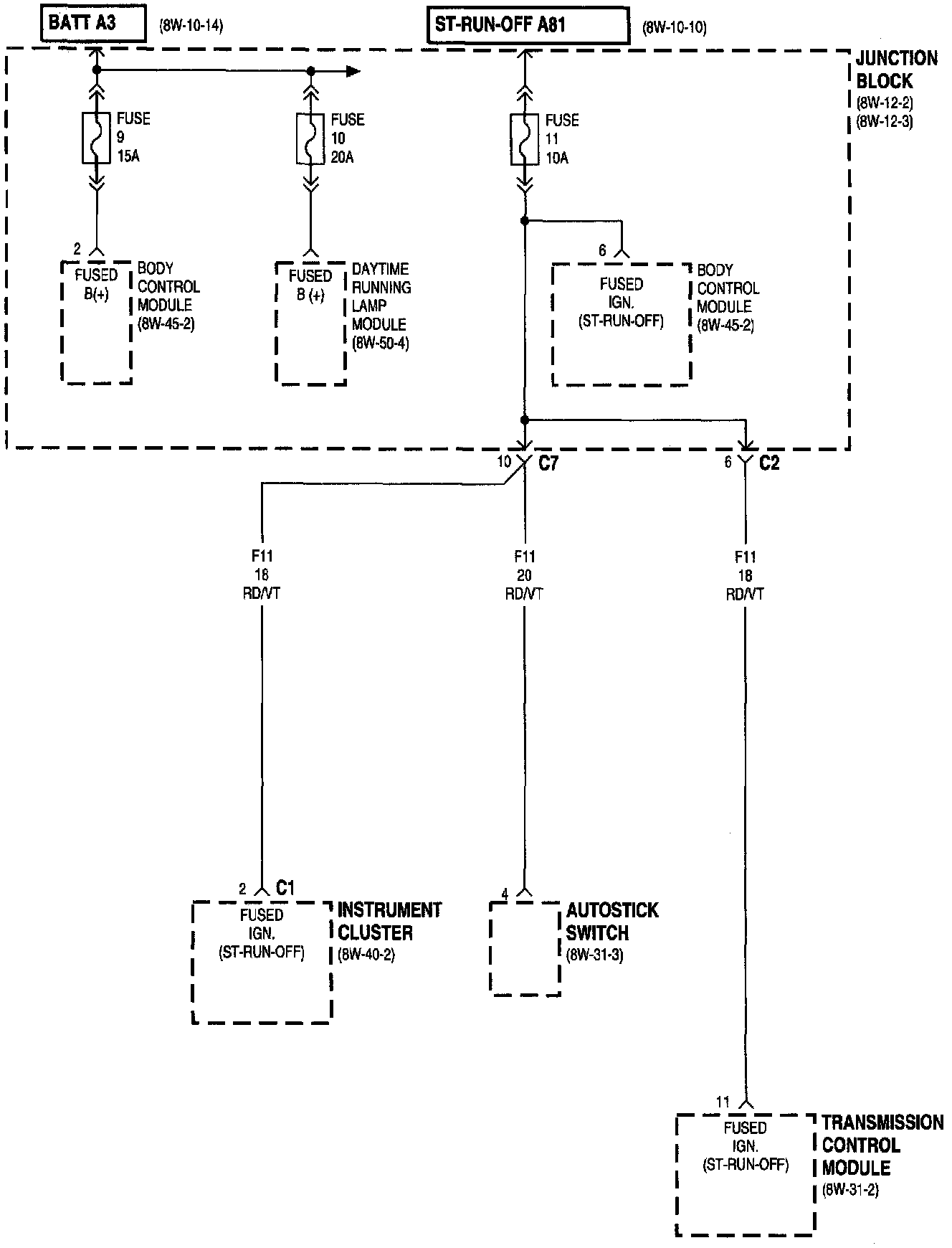

8w-12-11:

Autostick Switch
Body Control Module
Daytime Running Lamp Module
Fuse 9 (JB)
Fuse 10 (JB)
Fuse 11 (JB)
Instrument Cluster
Junction Block
Transmission Control Module

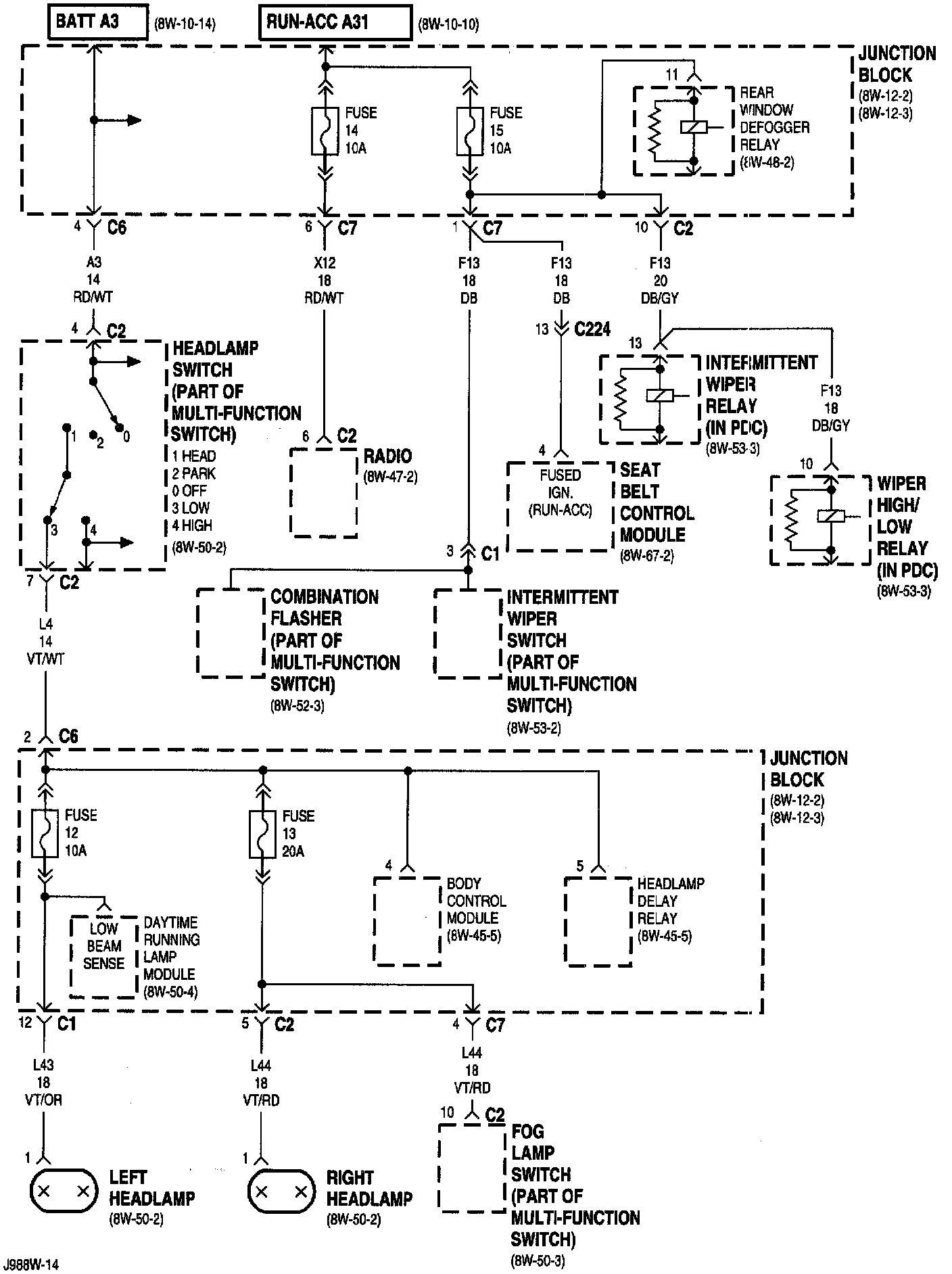

8w-12-12:

Body Control Module
Combination Flasher
Daytime Running Lamp Module
Fog Lamp Switch
Fuse 12 (JB)
Fuse 13 (JB)
Fuse 14 (JB)
Fuse 15 (JB)
Headlamp Switch
Intermittent Wiper Relay
Intermittent Wiper Switch
Junction Block
Left Headlamp
Radio
Rear Window Defogger Relay
Right Headlamp
Seat Belt Control Module
Wiper High/Low Relay

8w-12-13:

Airbag Control Module
Circuit Breaker 18 (JB)
Decklid Release Relay
Decklid Solenoid
Fuse 16 (JB)
Fuse 17 (JB)
Junction Block
Power Seat Switch
S312

8w-12-14:

Circuit Breaker 19 (JB)
Junction Block
Left Door Window Motor Relay
Left Front Power Window Motor
Master Power Window Switch
Right Door Window Motor Relay
Right Power Window Switch
Window Timer Module
S410

8w-12-15:

Automatic Day/Night Mirror
Autostick Switch
Body Control Module
Data Link Connector
Daytime Running Lamp Module
G301
Headlamp Switch
Ignition Switch
Illuminated Entry Relay
Instrument Cluster
Junction Block
Key-In Switch
Overhead Map Lamp
Power Amplifier

8w-12-16:

Body Control Module
Headlamp Switch
Junction Block
Left Park/Turn Signal Lamp
Radio
Right Park/Turn Signal Lamp

8w-12-17:

Brake Warning Pressure Switch
Center High Mounted Stop Lamp
Combined Rear Lighting Module
Controller Anti-Lock Brake
Daytime Running Lamp Module
Fog Lamp Switch
Ignition Switch
Instrument Cluster
Junction Block
Left Fog Lamp
Park Brake Switch
Right Fog Lamp
Stop Lamp Switch

8w-12-18:

Combined Rear Lighting Module
Instrument Cluster
Junction Block
Left Park/Turn Signal Lamp
Right Park/Turn Signal Lamp
Turn Signal/Hazard Warning Switch


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams Diagrams By Group Number.
