Removal and Installation

AIR CONDITIONING BELT AND GENERATOR BELT

Air Conditioning Compressor And Generator Belt Idler:

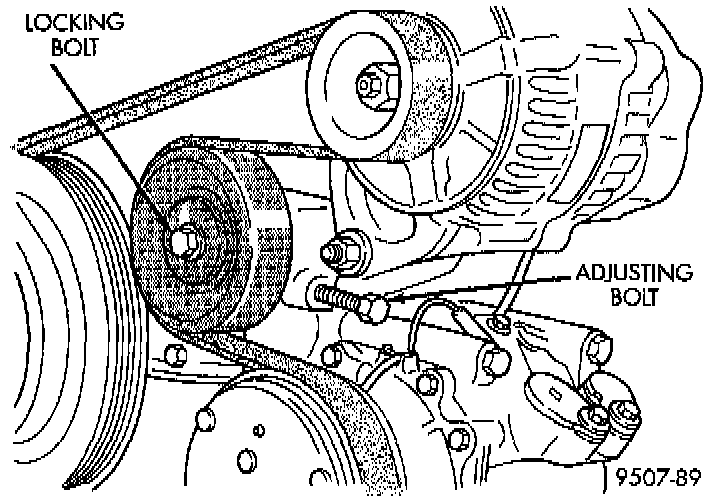

To remove and install the air conditioning compressor and generator drive belt, first loosen the idler pulley lock bolt, then turn the adjusting screw to increase or decrease the idler pulley tension.
To adjust the air conditioning and generator drive belt, loosen the idler pulley bolt and adjust belt tension by turning adjusting screw. Tighten pulley bolt to 54 Nm (40 ft. lbs.) after adjustment.

POWER STEERING PUMP BELT

Power Steering Belt Adjustment:

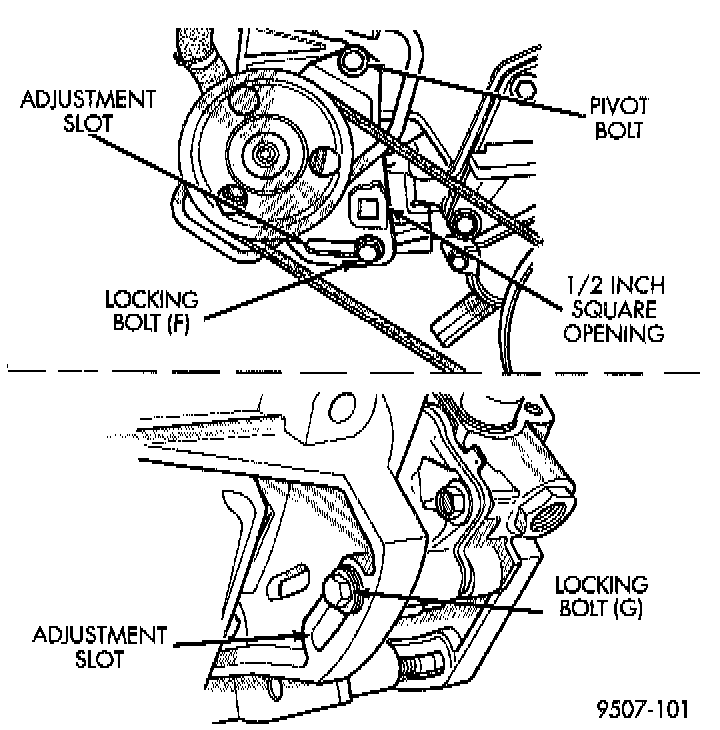

1. From the top of the vehicle loosen pivot bolt.
2. From under the vehicle loosen the locking bolts F and G.

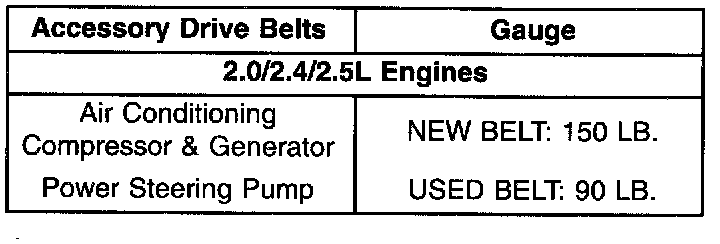

3. Install the belt. Adjust belt tension with 1/2 inch breaker bar installed in adjusting bracket. See Belt Tension Chart.
4. Tighten locking bolt G to 28 Nm (250 inch lbs.).
5. Tighten locking bolt F and the pivot bolt to 54 Nm (40 ft. lbs.).
