Park and Turn Signal Lamp Bulb

REMOVAL
1. Release hood latch and open hood.
2. Remove screws holding headlamp module to radiator closure panel.
3. Separate headlamp module from radiator closure panel.
4. Rotate socket counterclockwise one quarter turn.

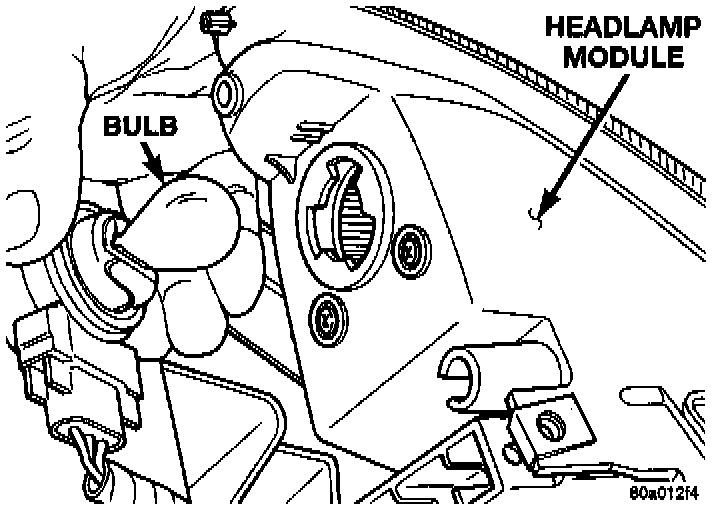

Park And Turn Signal Lamp Bulb:

5. Pull socket from back of lamp.
6. Pull bulb from socket

INSTALLATION
1. Push bulb into socket.
2. Position socket into back of lamp.
3. Rotate socket clockwise one quarter turn.
4. Position headlamp module to radiator closure panel.
5. Install screws holding headlamp module to radiator closure panel.
