Turn Signal Flasher: Testing and Inspection

Combination Flasher Diagnosis:

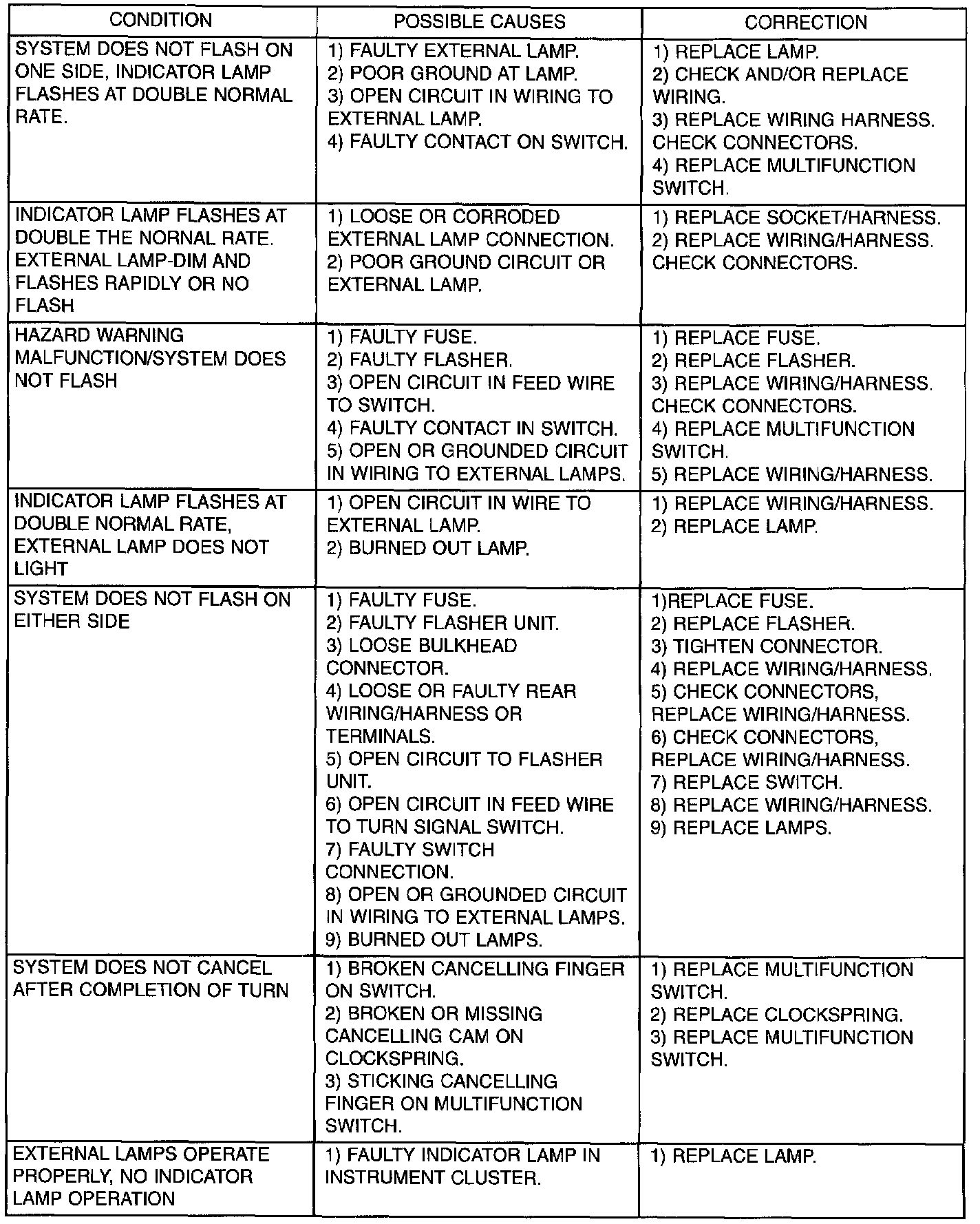

For combination flasher testing, refer to for Combination Flasher Diagnosis table.
