Turn Signals: Service and Repair

The headlamp module contains the park and turn signal lamps and is serviced as an assembly

REMOVAL
1. Release hood latch and open hood.

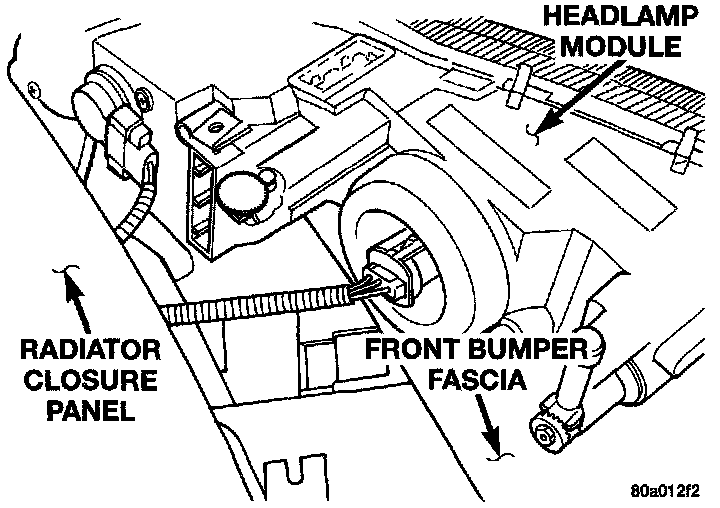

Headlamp Module Screws:

2. Remove screws holding headlamp module to radiator closure panel and headlamp adapter.

Headlamp Module:

3. Separate headlamp module from radiator closure panel.
4. Disengage wire connector from headlamp bulb socket.
5. Rotate park/turn signal lamp socket one quarter turn counterclockwise.
6. Pull park/turn signal socket from headlamp module.
7. Separate headlamp module from vehicle.

INSTALLATION
1. Position headlamp module to vehicle.
2. Push park/turn signal socket into headlamp module.
3. Rotate park/turn signal lamp socket one quarter turn clockwise.
4. Engage wire connector to headlamp bulb socket.
5. Position headlamp module to radiator closure panel.
6. Install screws holding headlamp module to radiator closure panel.
