Home >> Chrysler >> 1998 >> Sebring Convertible V6-2.5L VIN H >> Repair and Diagnosis >> Lighting and Horns >> Horn >> Testing and Inspection >> Diagnostic Chart

Diagnostic Chart

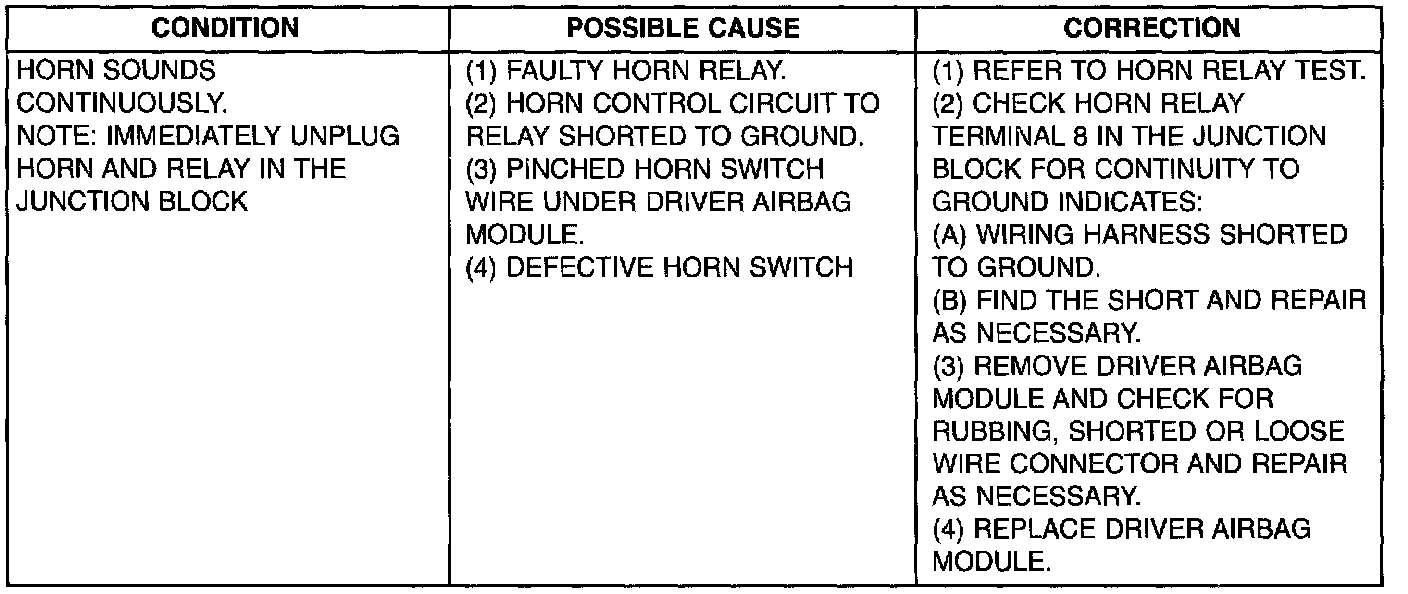

Horn System Test (Part 1 Of 2):



Horn System Test (Part 2 Of 2):
