Instrument Cluster Printed Circuit Board Replacement

NOTE: White faced cluster is an electroluminescent unit and uses no illumination lamps. This cluster is not serviceable and must be replaced as a unit.

REMOVAL
1. Remove six cluster back cover retaining screws and remove the cover.
2. Disconnect odometer/transmission range indicator connector from the printed circuit board.

Printed Circuit Board:

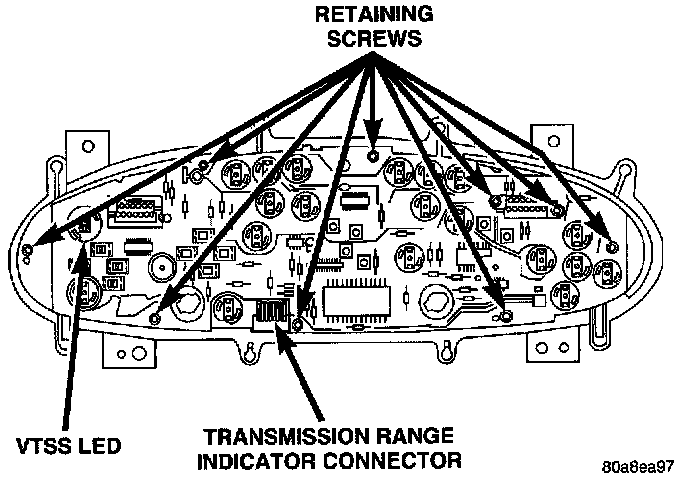

3. Remove nine printed circuit board attaching screws and remove. There are two screws located at the base of each connector.

INSTALLATION
For installation reverse the above procedures.
