Instrument Cluster

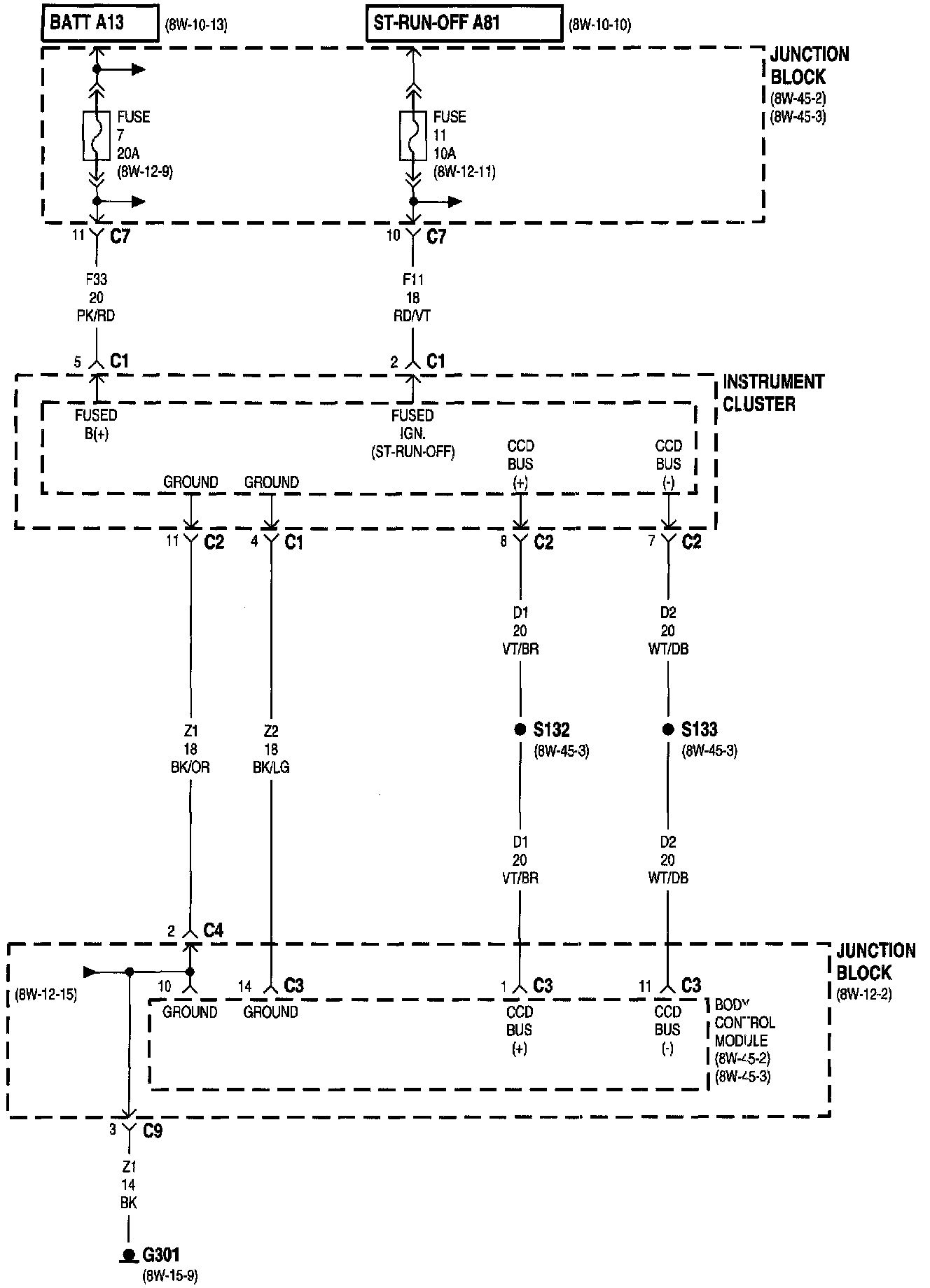

8w-40-2:

Body Control Module
Fuse 7 (JB)
Fuse 11 (JB)
G301
Instrument Cluster
Junction Block

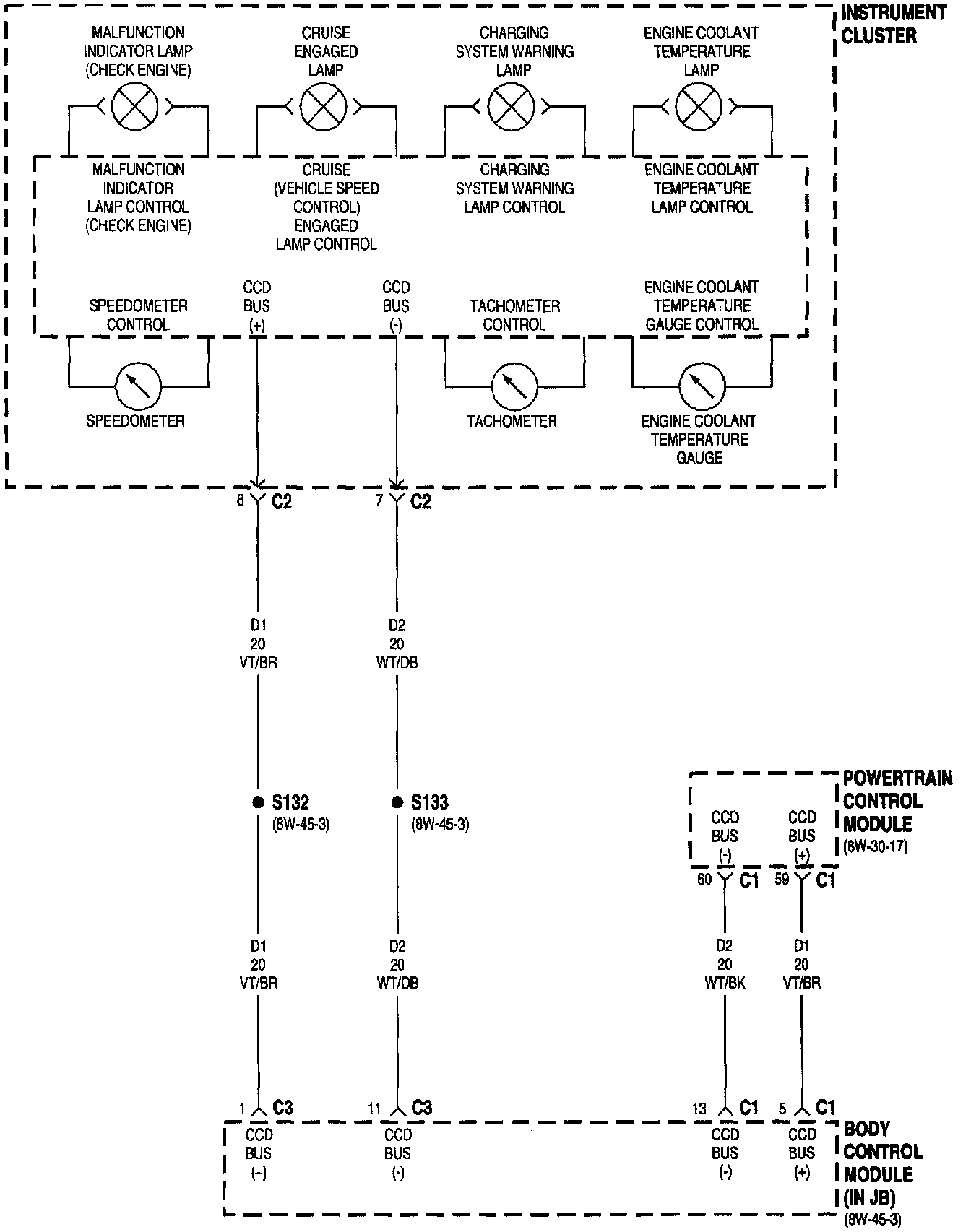

8w-40-3:

Body Control Module
Charging System Warning Lamp
Cruise Engaged Lamp
Engine Coolant Temperature
Gauge
Instrument Cluster
Lamp
Malfunction Indicator Lamp (Check Engine)
Powertrain Control Module
Speedometer
Tachometer

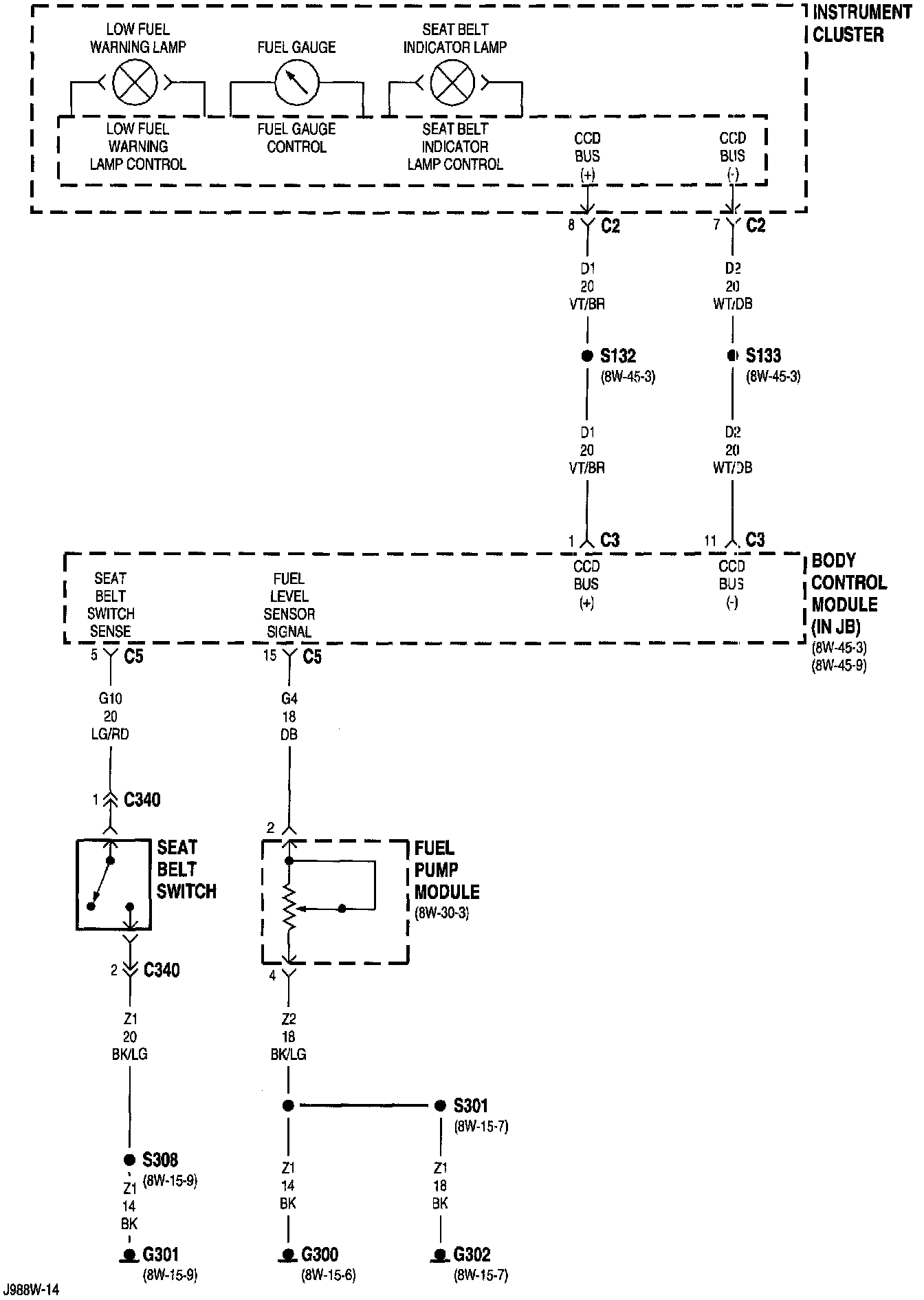

8w-40-4:

Body Control Module
Fuel Gauge
Fuel Pump Module
G300
G301
G302
Instrument Cluster
Low Fuel Warning Lamp
Seat Belt Indicator Lamp
Seat Belt Switch

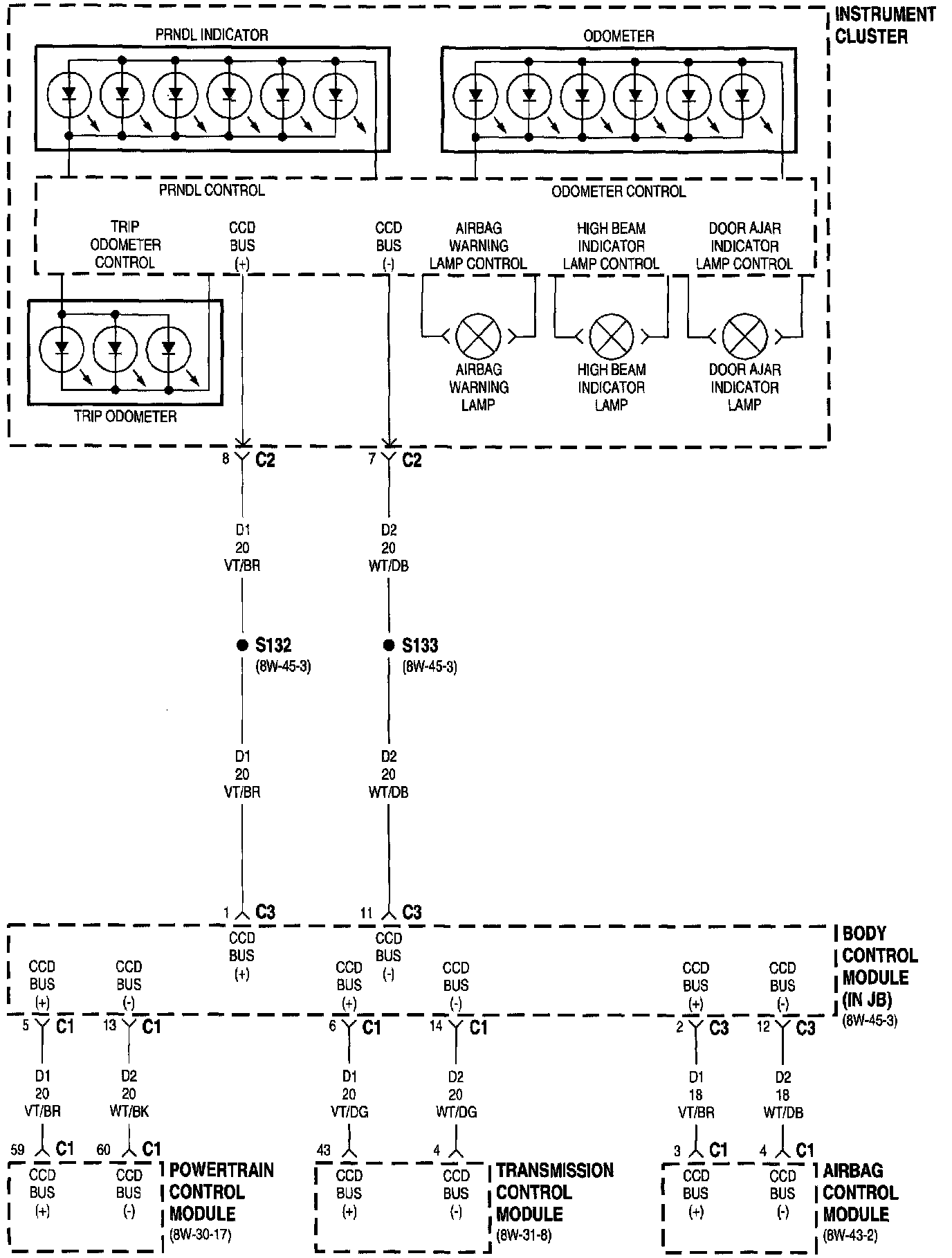

8w-40-5:

Airbag Control Module
Airbag Warning Lamp
Body Control Module
Door Ajar Indicator Lamp
High Beam Indicator Lamp
Instrument Cluster
Odometer
Powertrain Control Module
PRNDL Indicator
Transmission Control Module
Trip Odometer

8w-40-6:

ABS Warning Lamp
Body Control Module
Controller Anti-Lock Brake
Fuse 7 (JB)
Fuse 9 (PDC)
Instrument Cluster
Junction Block
Oil Pressure Lamp
Oil Pressure Switch
Power Distribution Center
Traveler
Vehicle Theft Security System Set Led

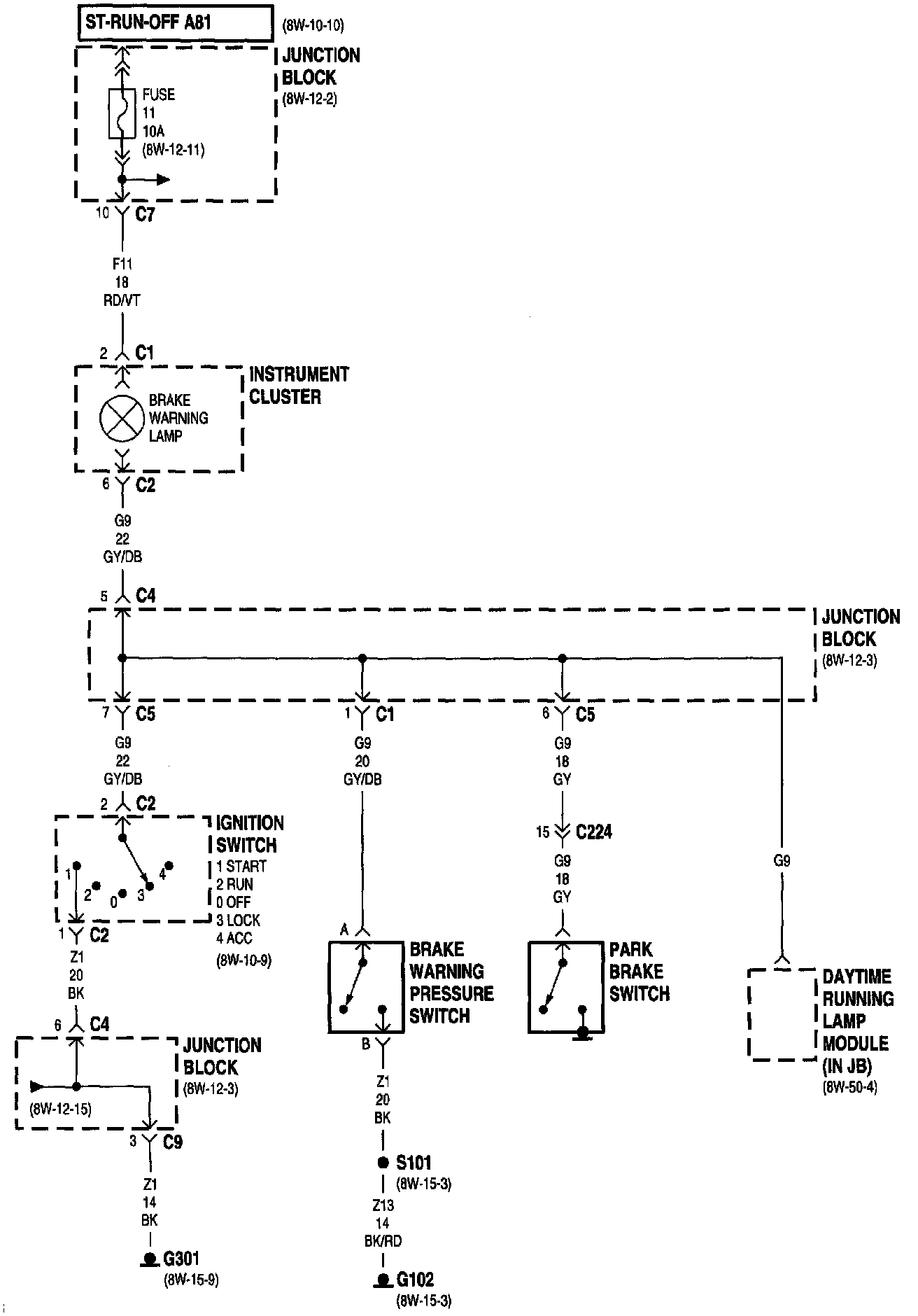

8w-40-7:

Brake Warning Lamp
Brake Warning Pressure Switch
Daytime Running Lamp Module
Fuse 11 (JB)
G102
G301
Ignition Switch
Instrument Cluster
Junction Block
Park Brake Switch

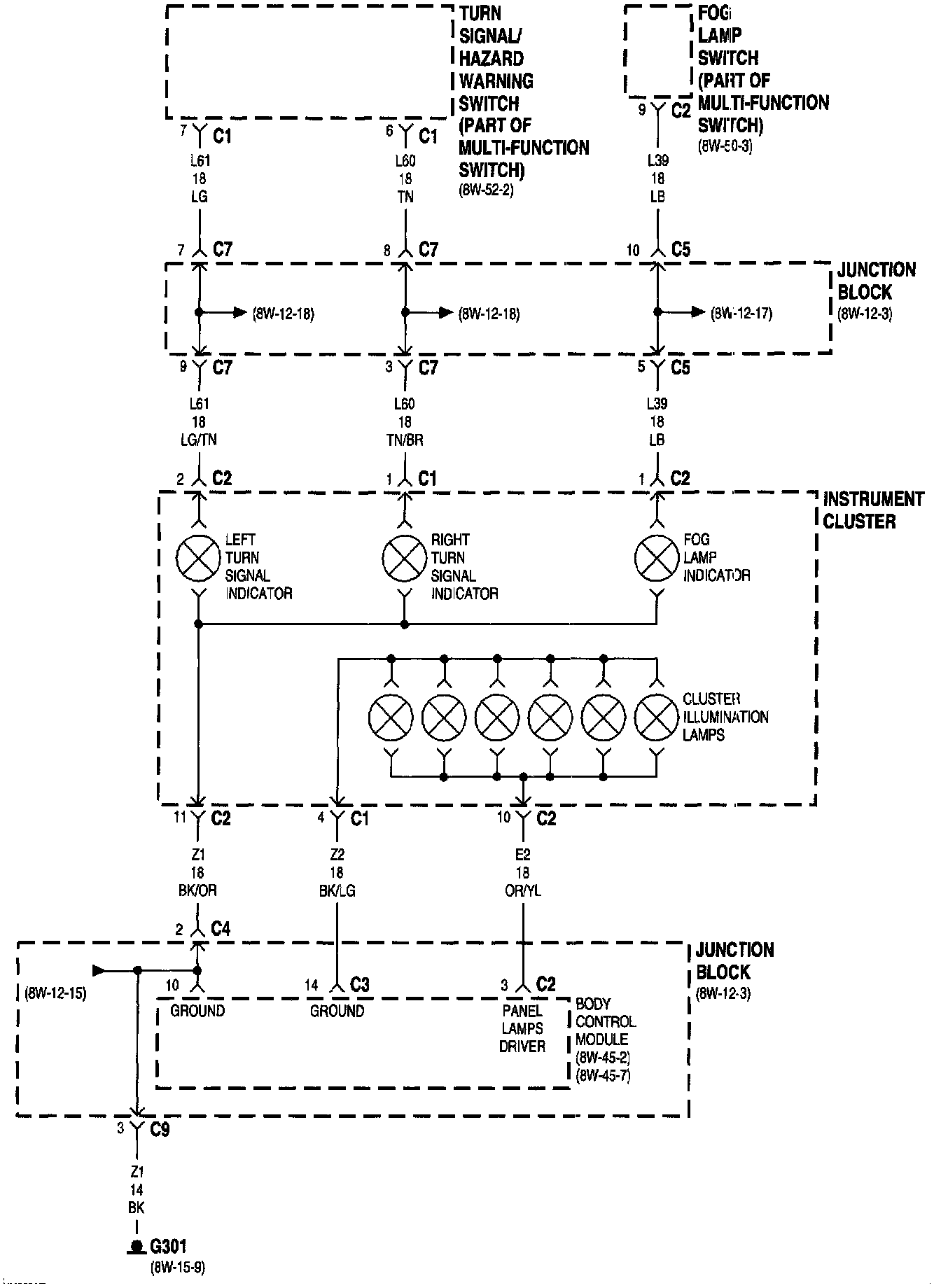

8w-40-8:

Body Control Module
Cluster Illumination Lamps
Fog Lamp Indicator
Fog Lamp Switch
G301
Instrument Cluster
Junction Block
Left Turn Signal Indicator
Right Turn Signal Indicator
Turn Signal/Hazard Warning Switch

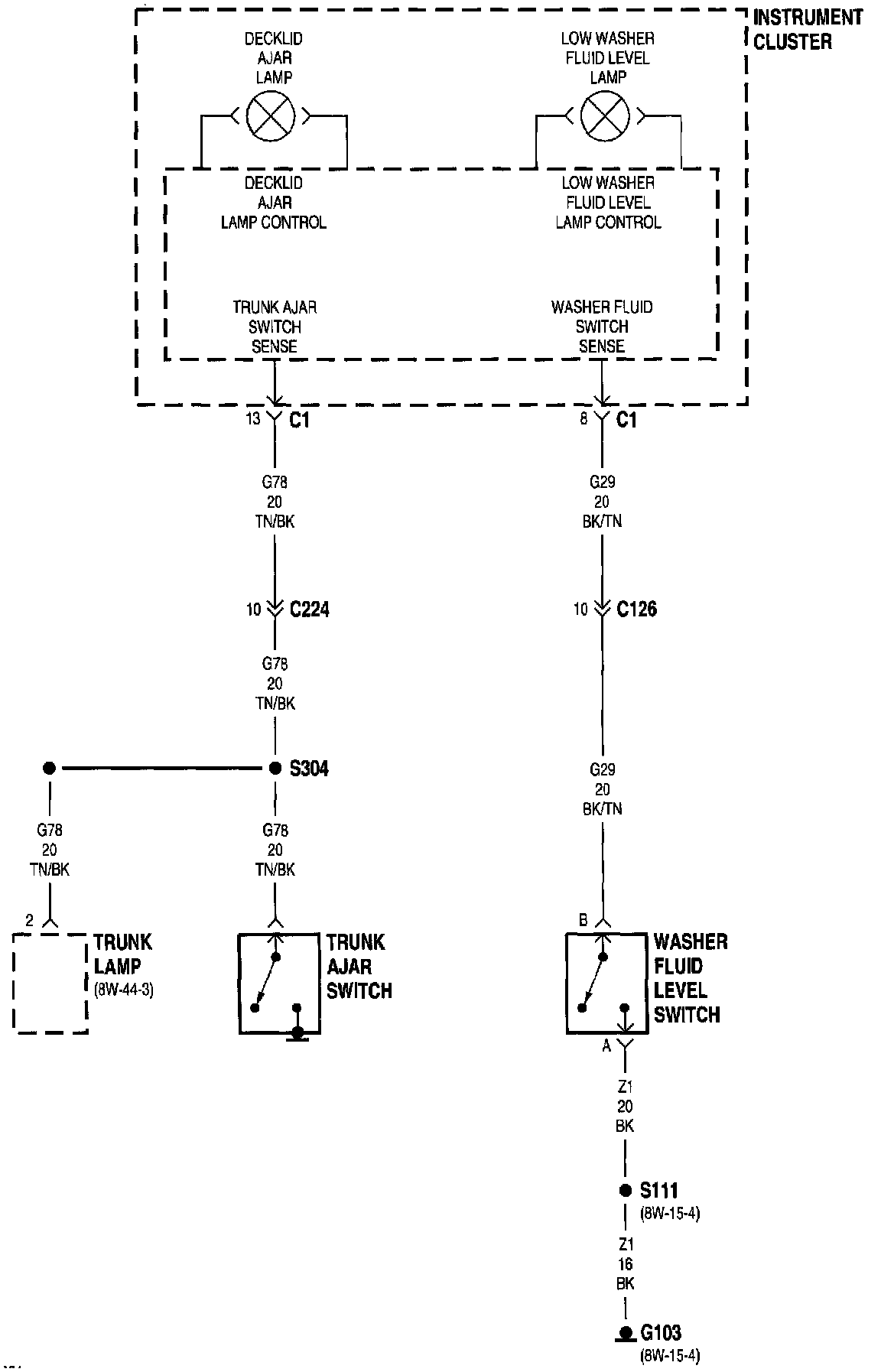

8w-40-9:

Decklid Ajar Lamp
G103
Instrument Cluster
Low Washer Fluid Level Lamp
Trunk Ajar Switch
Trunk Lamp
Washer Fluid Level Switch
S304


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
