FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chrysler
>>
1998
>>
Sebring Convertible V6-2.5L VIN H
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Connector Views
Connector Views

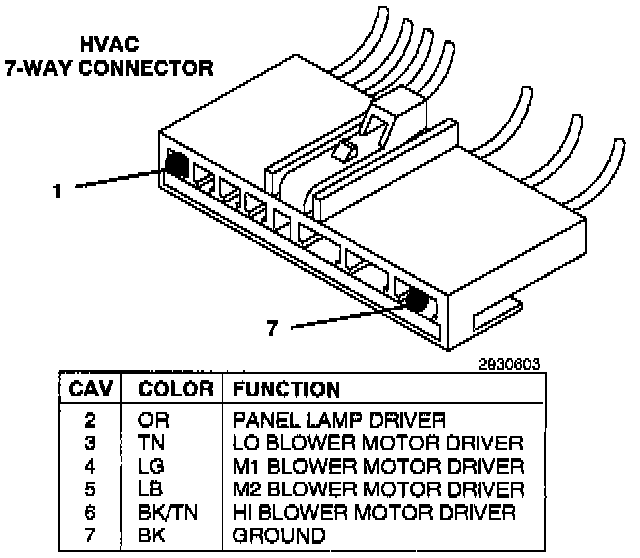

HVAC Connector:
HVAC Connector:
