Camshaft Gear/Sprocket: Service and Repair

REMOVAL

Camshaft Sprockets-Removal And Installation:

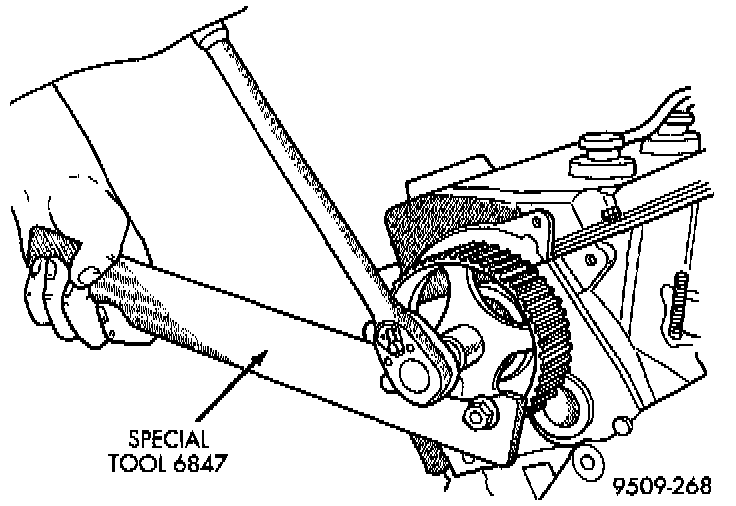

1. Hold camshaft sprocket with Special Tool 6847 loosen and remove bolt and washer.
2. Remove camshaft sprocket from camshaft.

INSTALLATION
1. Place camshaft sprocket on camshaft.
2. Install bolt and washer to camshaft. Using Special Tool 6847 hold camshaft sprocket and torque bolt to 88 Nm (65 ft. lbs.).
