Camshaft Oil Seal: Service and Repair

1. Apply light coat of engine oil to the camshaft oil seal lie.

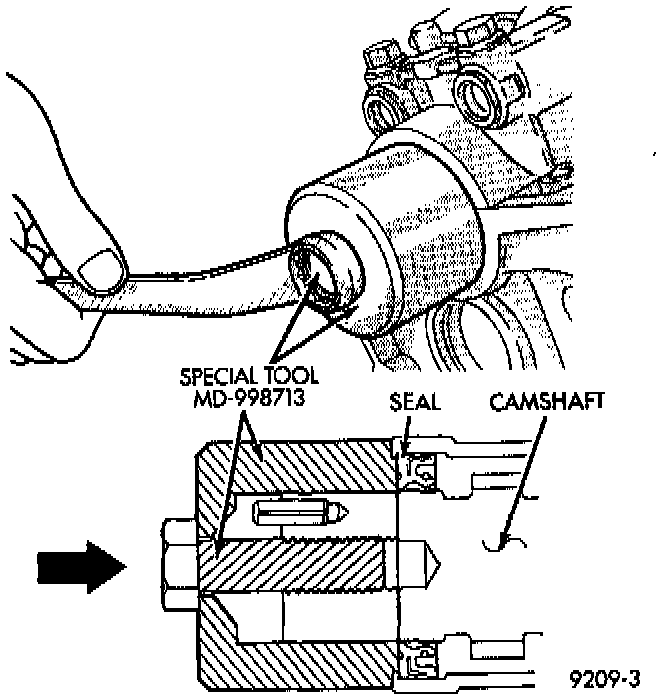

Right Cylinder Head-Installing Camshaft Oil Seal:

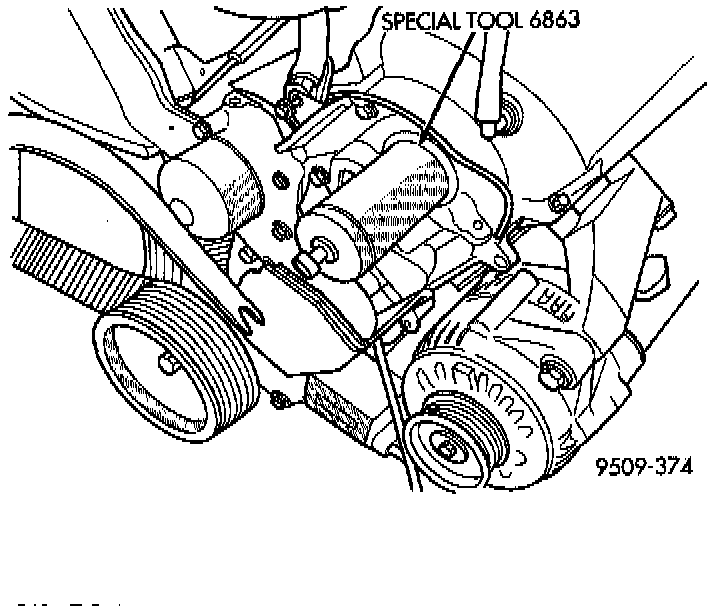

Left Cylinder Head-Installing Camshaft Oil Seal:

2. Install the oil seal using Special Tool MD998713 or 6863 camshaft oil seal installers.
