Disassembly and Assembly

Inner And Outer Rotor Alignment Marks:

1. Assemble pump, using new parts as required with clean oil. Align marks on the inner and outer rotors when assembling.
2. Install cover and tighten screws to 10 Nm (85 inch lbs.).

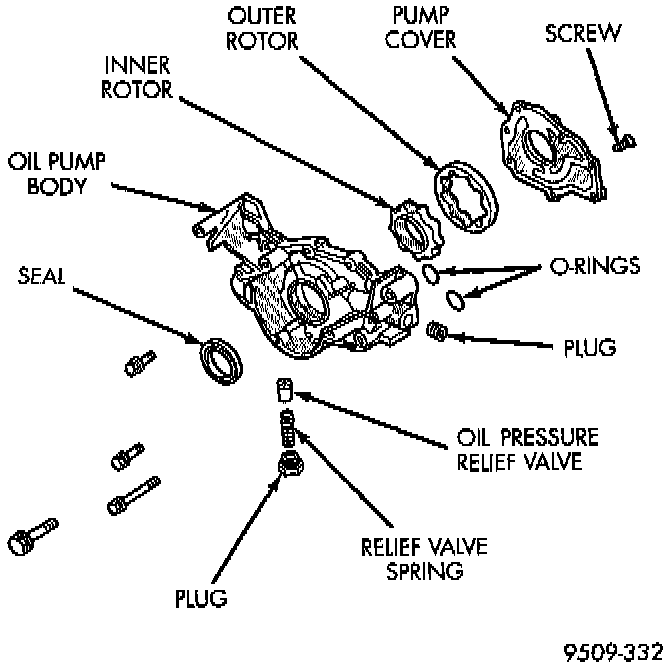

Oil Pump:

3. Install relief valve, spring, gasket and cap as shown. Tighten cap to 44 Nm (33 ft. lbs.).
