Harmonic Balancer - Crankshaft Pulley: Service and Repair

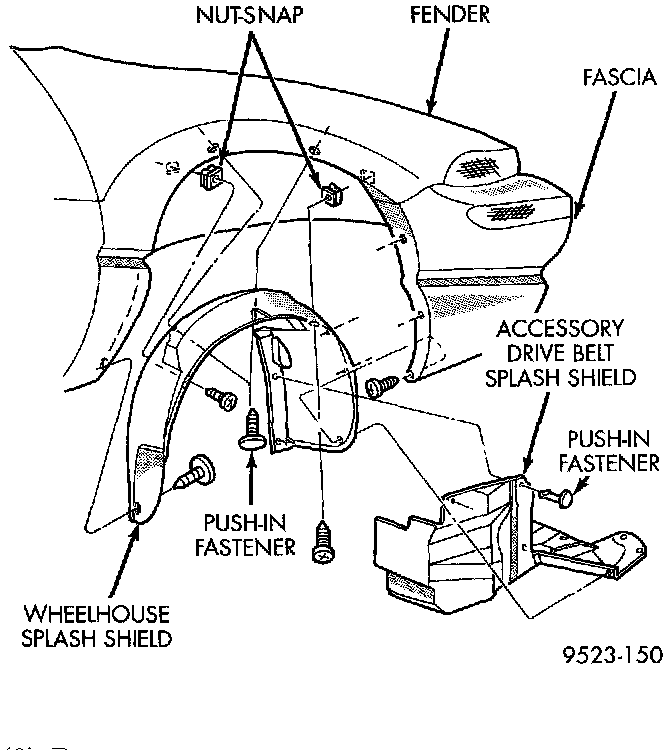

1. Remove drive belt splash shield.
2. Remove accessory drive belts. Refer to Cooling System for procedure.

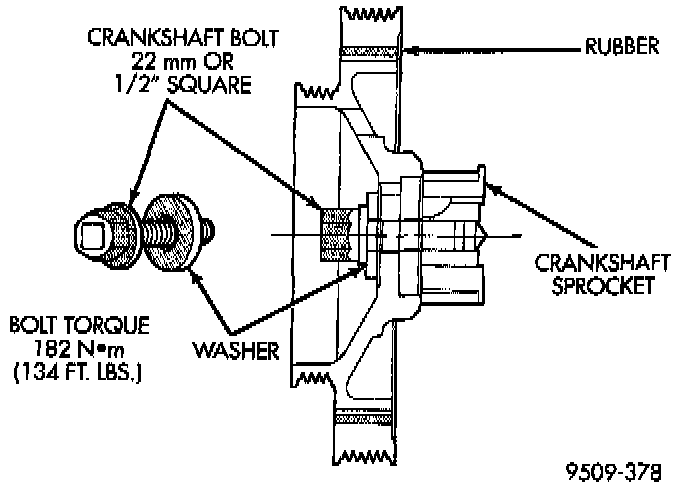

Crankshaft Damper:





3. Remove crankshaft center bolt and remove crankshaft damper.
4. Reverse procedure for installation. See for crankshaft bolt torque.
