Checking End Play

1. Oil camshaft journals and install camshaft without rocker arm assemblies.
2. Using a suitable tool, move camshaft as far rearward as it will go.

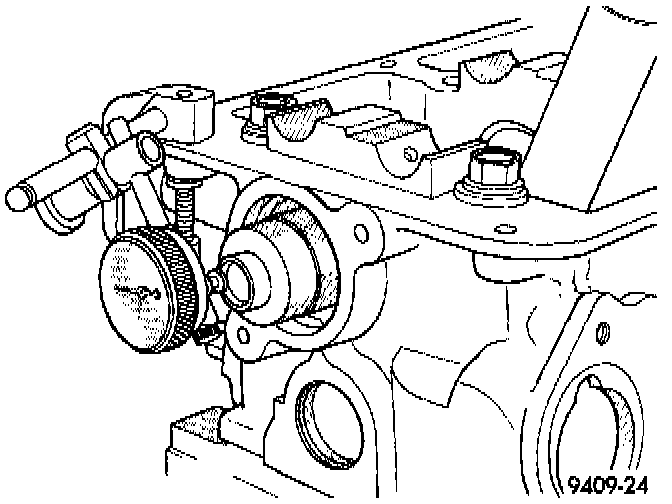

Camshaft End Play:

3. Zero dial indicator.
4. Move camshaft as far forward as it will go.
5. End play travel: 0.1 - 0.2 mm (0.004 - 0.008 inch). Max. Travel: 0.4 mm (0.016 inch).
