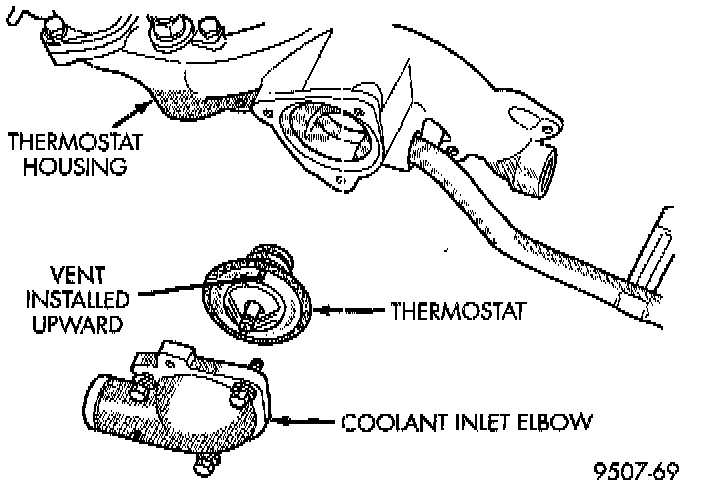

Thermostat, Housing And Inlet Elbow-2.5L Engine:
The 2.5L engine thermostat is located in a
thermostat housing
, located below the throttle body. This thermostat has an air bleed valve, located in the thermostat flange.
