Radio/Stereo

8w-47-2:

Base Antenna
Body Control Module
Fuse 5 (JB)
Fuse 14 (JB)
G200
G303
Headlamp Switch
Junction Block
Power Antenna
Radio

8w-47-3:

Left Door Speaker
Left Front Instrument Panel Speaker
Left Rear Speaker
Radio
Right Door Speaker
Right Front Instrument Panel Speaker
Right Rear Speaker

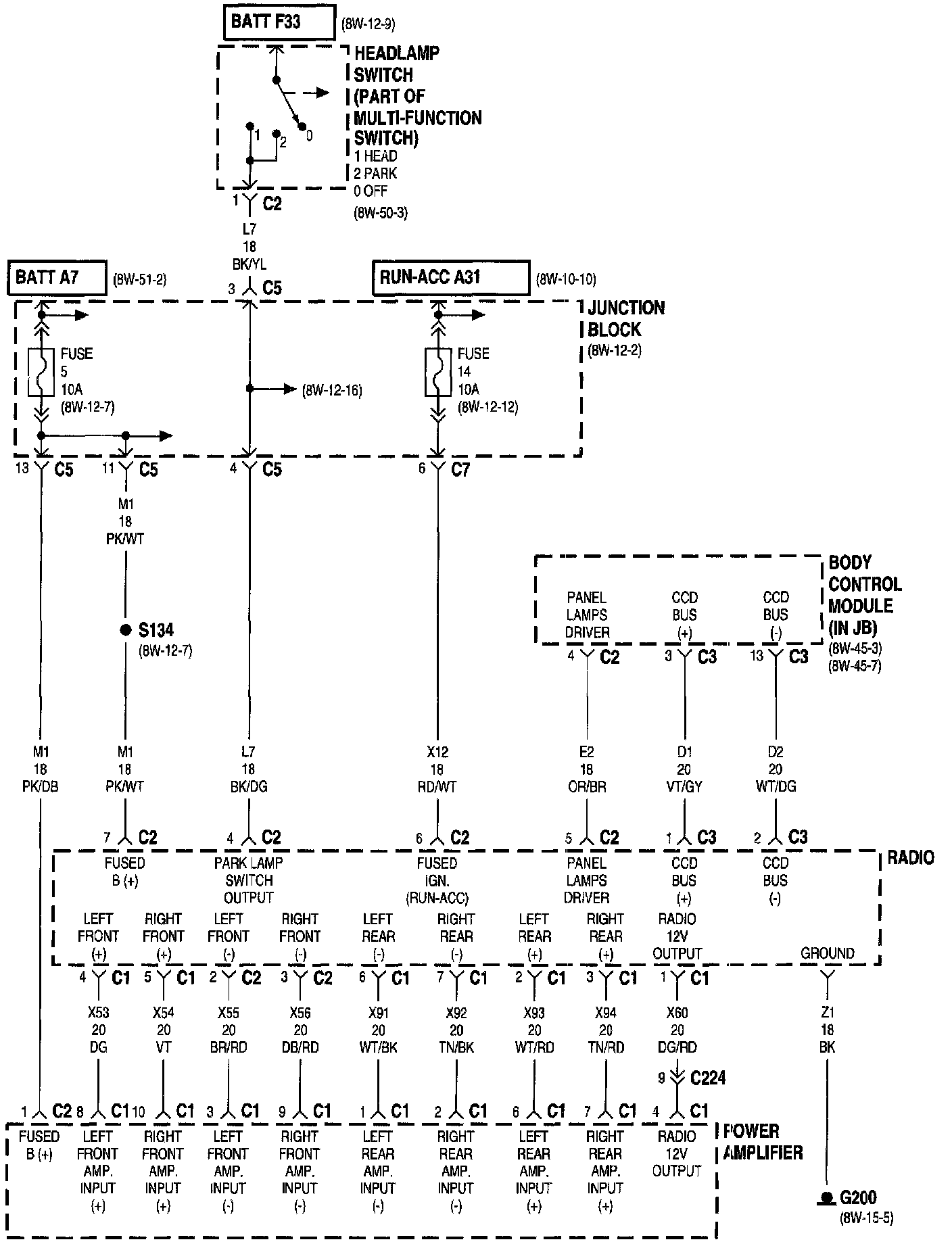

8w-47-4:

Body Control Module
Fuse 5 (JB)
Fuse 14 (JB)
G200
Headlamp Switch
Junction Block
Power Amplifier
Radio

8w-47-5:

Left Door Speaker
Left Front Instrument Panel Speaker
Left Rear Speaker
Power Amplifier
Right Door Speaker
Right Front Instrument Panel Speaker
Right Rear Speaker

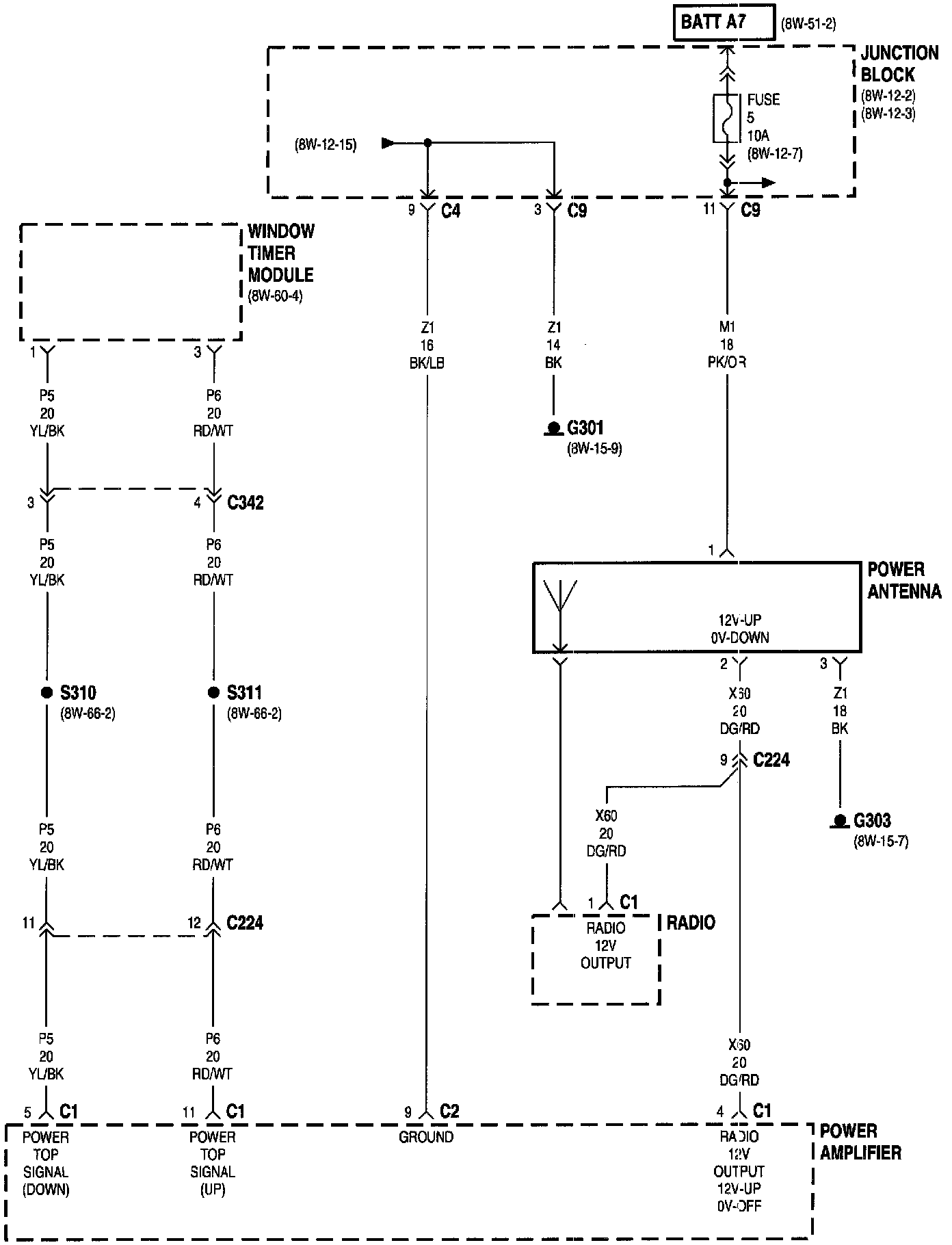

8w-47-6:

Fuse 5 (JB)
G301
G303
Junction Block
Power Amplifier
Power Antenna
Radio
Window Timer Module


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams Diagrams By Group Number.
