Rear Lighting

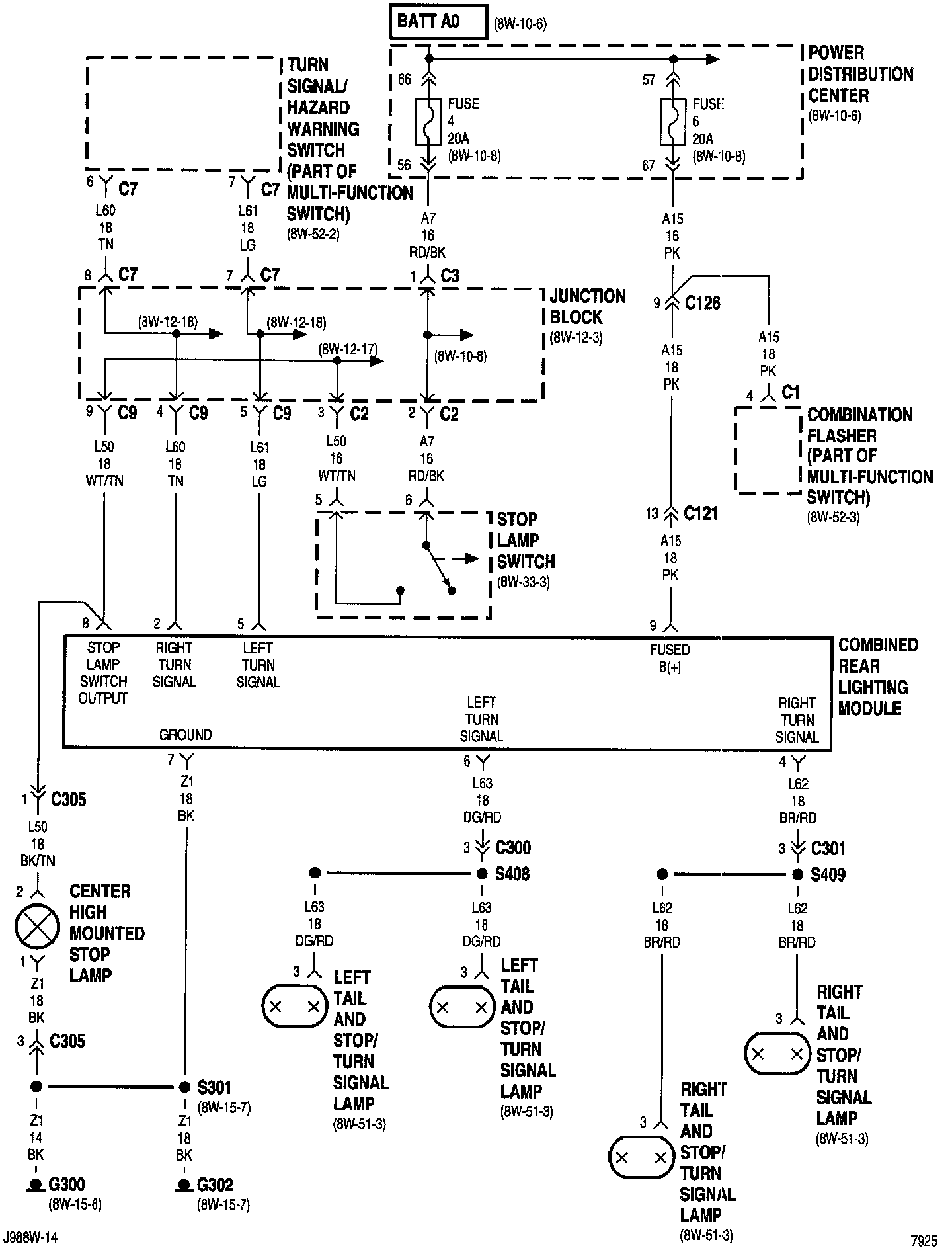

8w-51-2:

Center High Mounted Stop Lamp
Combination Flasher
Combined Rear Lighting Module
Fuse 4 (PDC)
Fuse 6 (PDC)
G300
G302
Junction Block
Left Tail And Stop/Turn Signal Lamp
Power Distribution Center
Turn Signal/Hazard Warning Switch
S408
S409

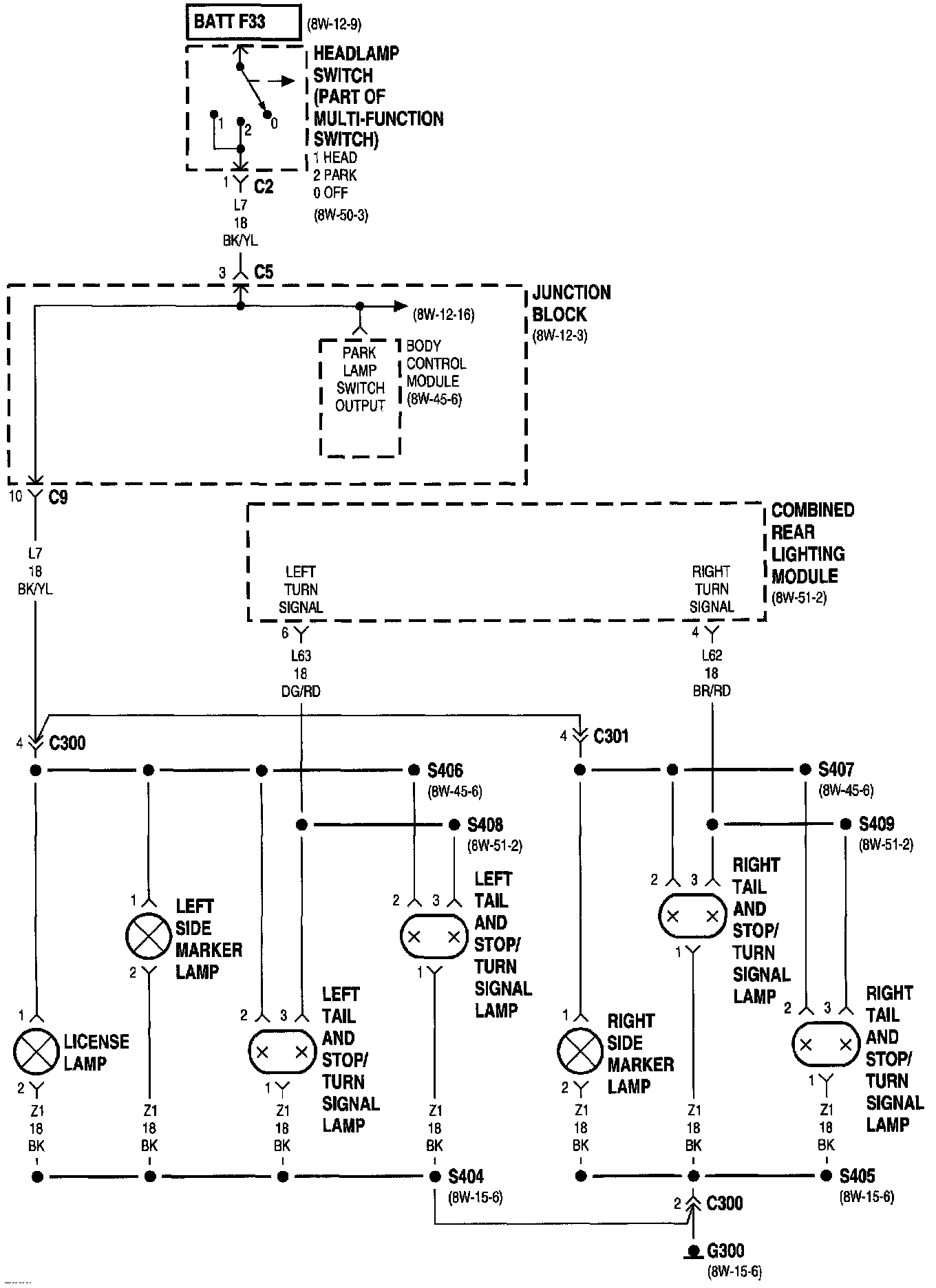

8w-51-3:

Body Control Module
Combined Rear Lighting Module
G300
Headlamp Switch
Junction Block
Left Side Marker Lamp
Left Tail And Stop/Turn Signal Lamp
License Lamp
Right Side Marker Lamp

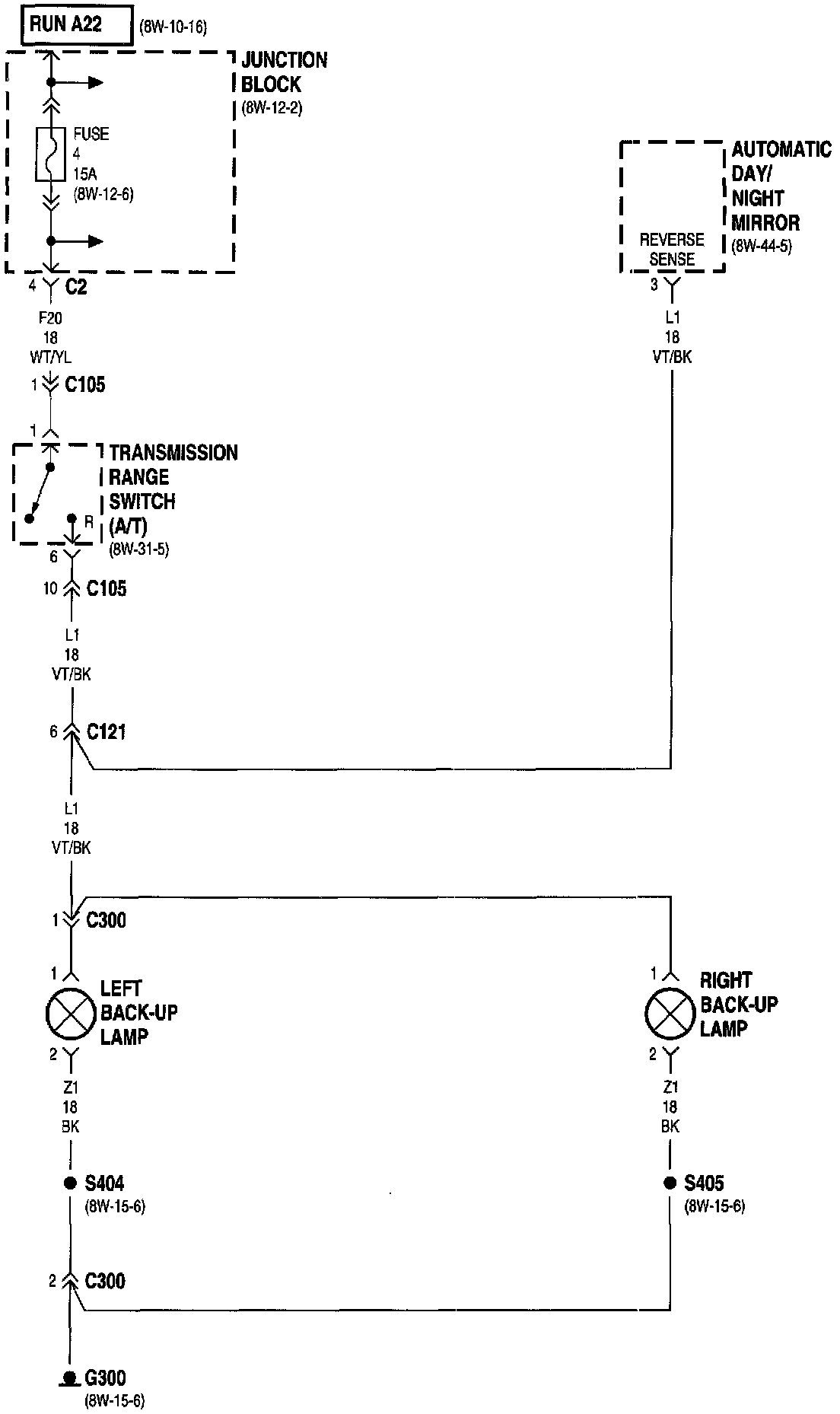

8w-51-4:

Automatic Day/Night Mirror
Combined Rear Lighting Module
Fuse 4 (JB)
G300
Junction Block
Left Back-Up Lamp
Right Back-Up Lamp
Transmission Range Switch


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams Diagrams By Group Number.
