Without Antilock Brakes

REMOVE

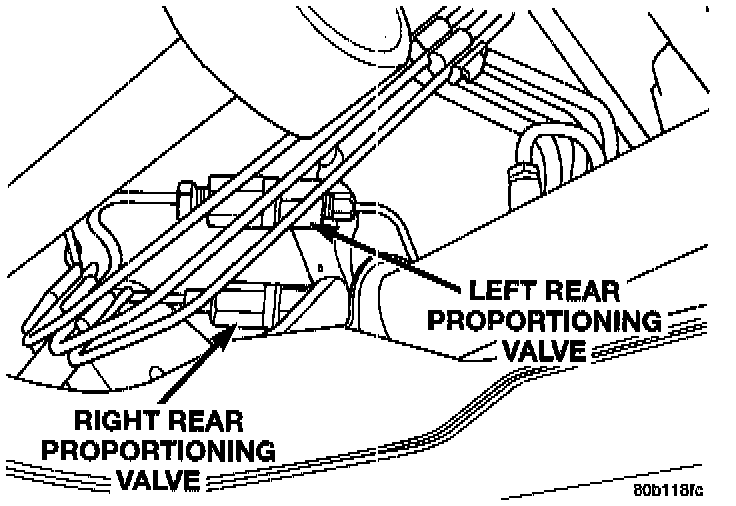

Non-ABS Brake Proportioning Valve Location:

1. Remove hydraulic brake line from proportioning valve controlling the rear wheel of the vehicle which has premature wheel skid.
2. Then remove the proportioning valve from the rear brake line.

INSTALL
1. Install proportioning valve in rear brake line and hand tighten both tube nuts until they are fully seated in proportioning valve.
2. Tighten both brake line tube nuts at the proportioning valve to a torque of 17 Nm (145 inch lbs.).
3. Bleed the affected brake line.
