Junction Block Replacement

REMOVAL

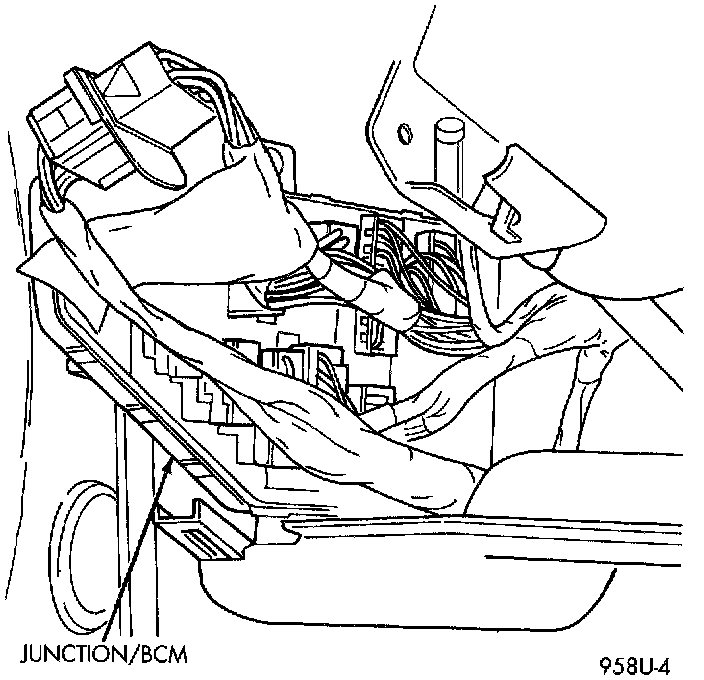

Junction Block/BCM Location:

The Junction Block and Body Control Module (BCM) are attached to each other. After removal they can be separated. Junction Block and Body Control Module assemblies are located on the driver's side of the vehicle.
1. Open the front driver's door and remove end cap.
2. Remove center bezel.
3. Remove instrument cluster hood.
4. Remove silencer.
5. Remove wire harness connectors from Junction Block.
6. Remove Junction Block three mounting screws.
7. Remove Junction Block/BCM by pulling straight down from the mounting bayonet.
8. Disconnect BCM wire connectors and remove the assembly.
9. Remove Junction Block (BCM) from vehicle.

INSTALLATION
For installation reverse the above procedures. Ensure that the wire terminals and connectors are in good condition and connectors are properly installed.
