Radio/Stereo: Service and Repair

REMOVAL

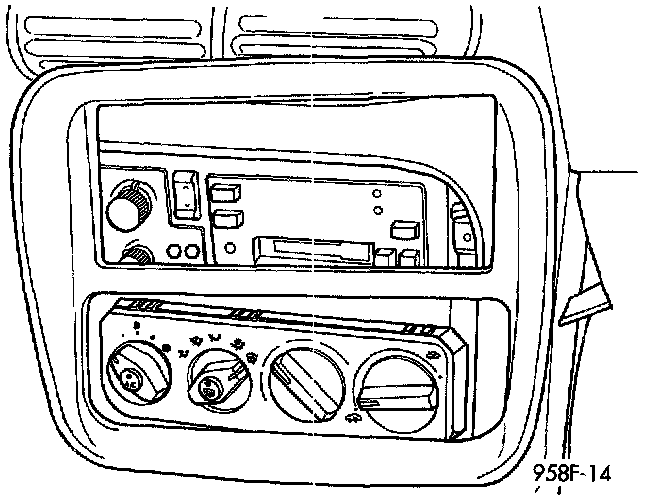

Center Bezel Removal:

1. Remove center bezel by pulling straight back.

Radio Assembly:

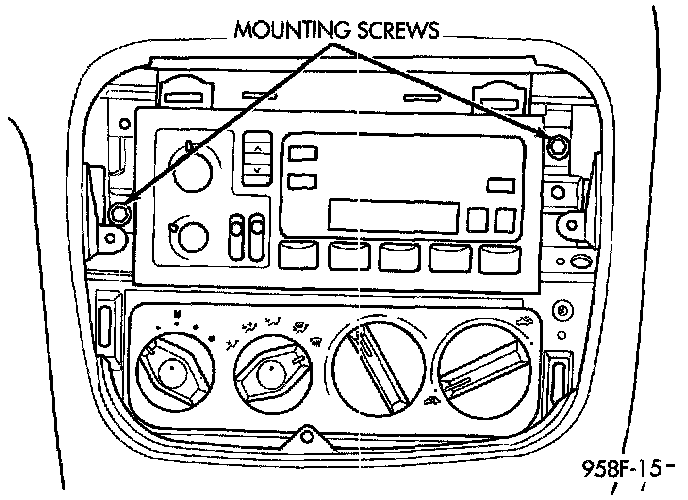

2. Remove two radio mounting screws.
3. Turn OFF radio and ignition switch. DO NOT disconnect the radio with ignition switch ON.
4. Pull radio from panel and disconnect wire connectors and antenna lead from radio.
5. Remove radio.

INSTALLATION
For installation, reverse the above procedure.
