Amplifier: Service and Repair

REMOVAL

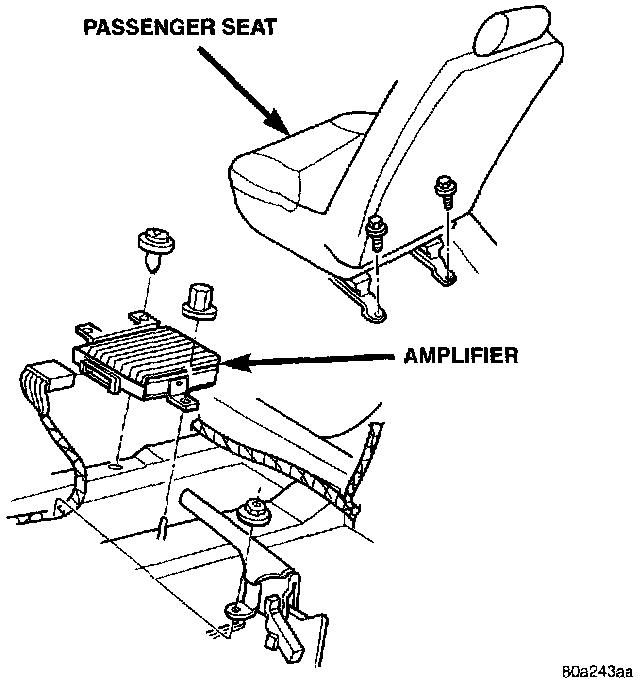

Amplifier Location:

1. Loosen the two attaching screws and the nut.
2. Disconnect the electrical connector and remove amplifier.

INSTALLATION
For installation, reverse the above procedure. Tighten fasteners to 4 N.m (40 in. lbs.) torque.
