Home >> Chrysler >> 1998 >> Sebring Convertible V6-2.5L VIN H >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Vehicle Communication Tests >> 13A

13A

Part 1 of 3:

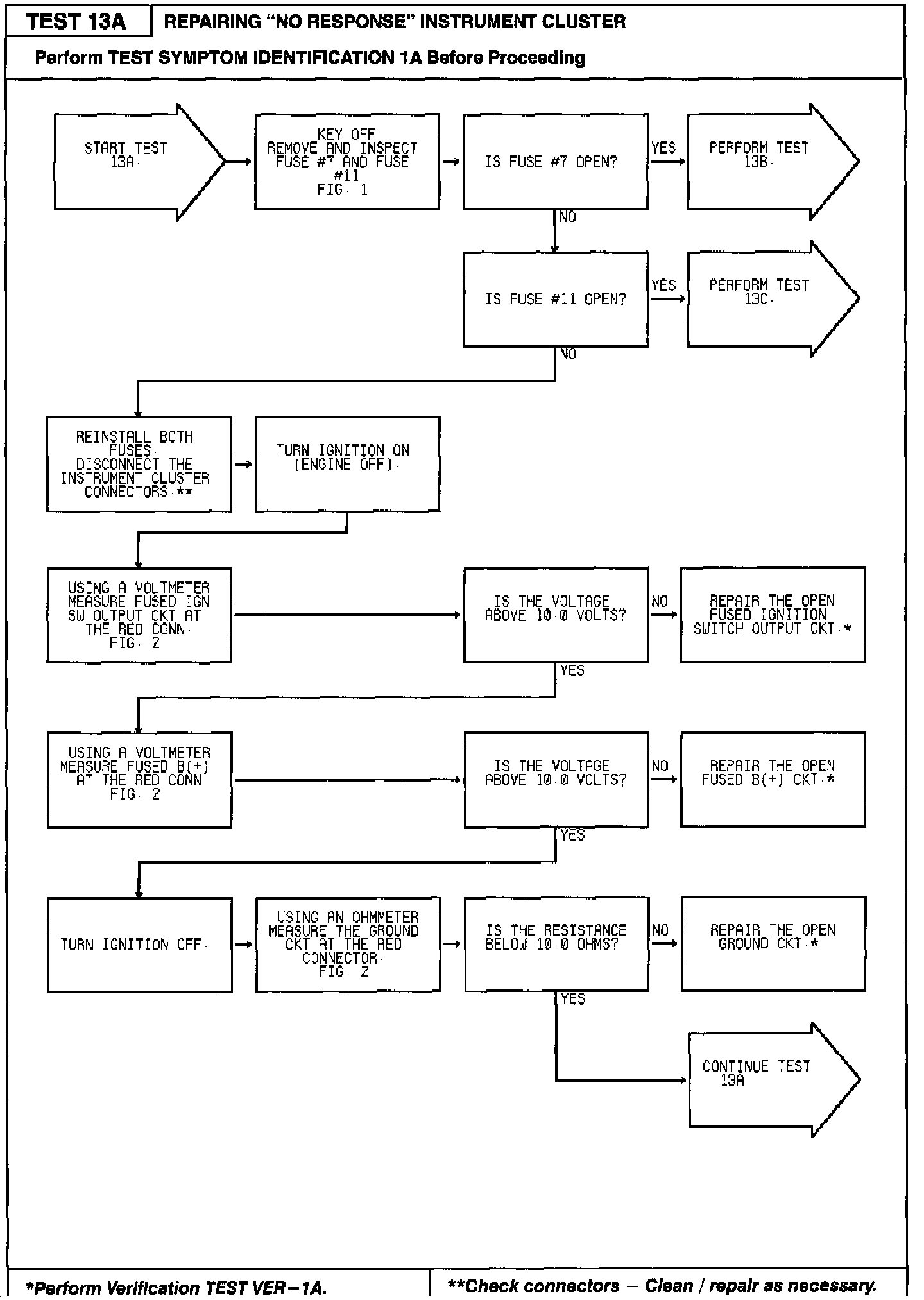

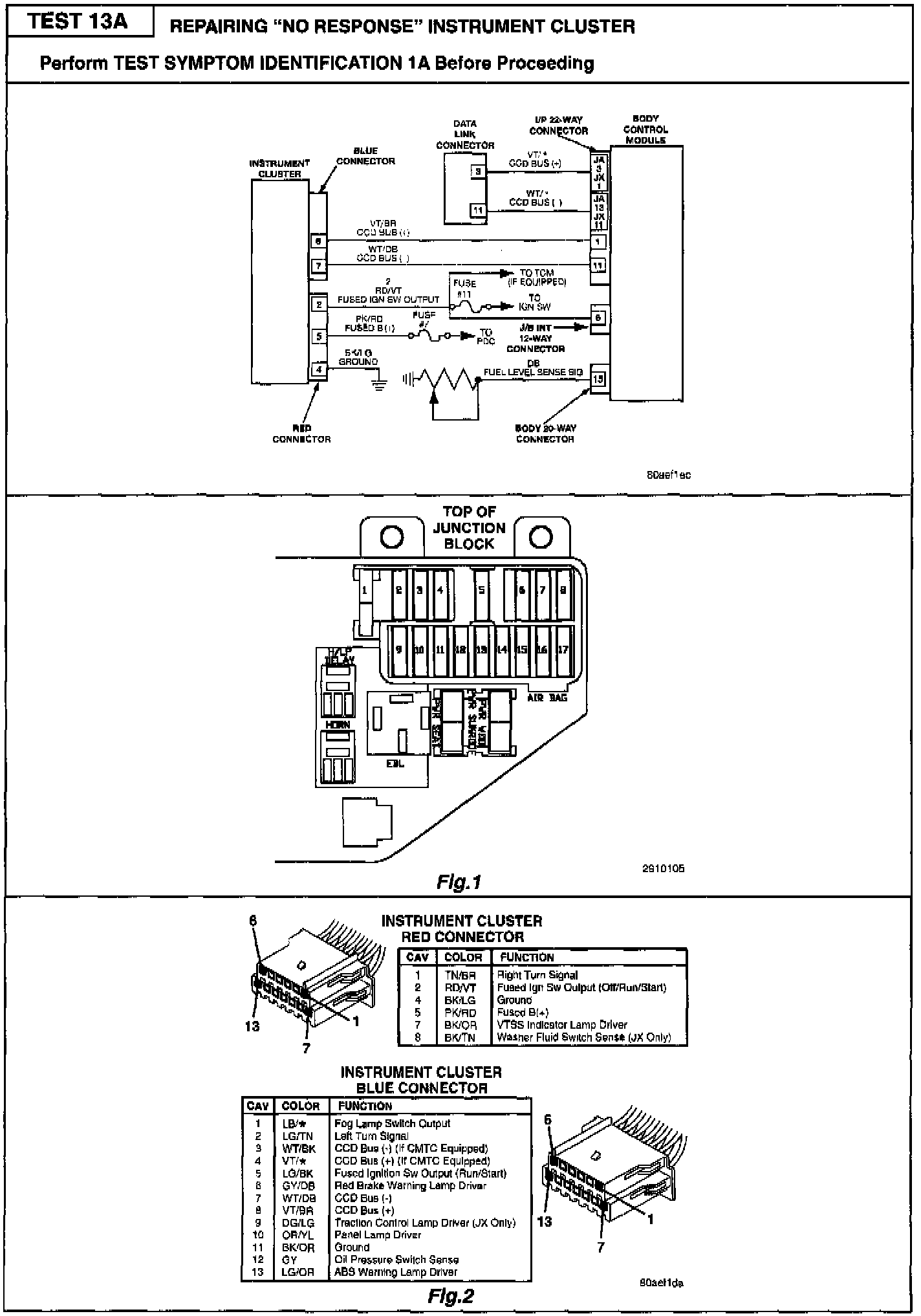

Part 1 figures:






Part 2 of 3:

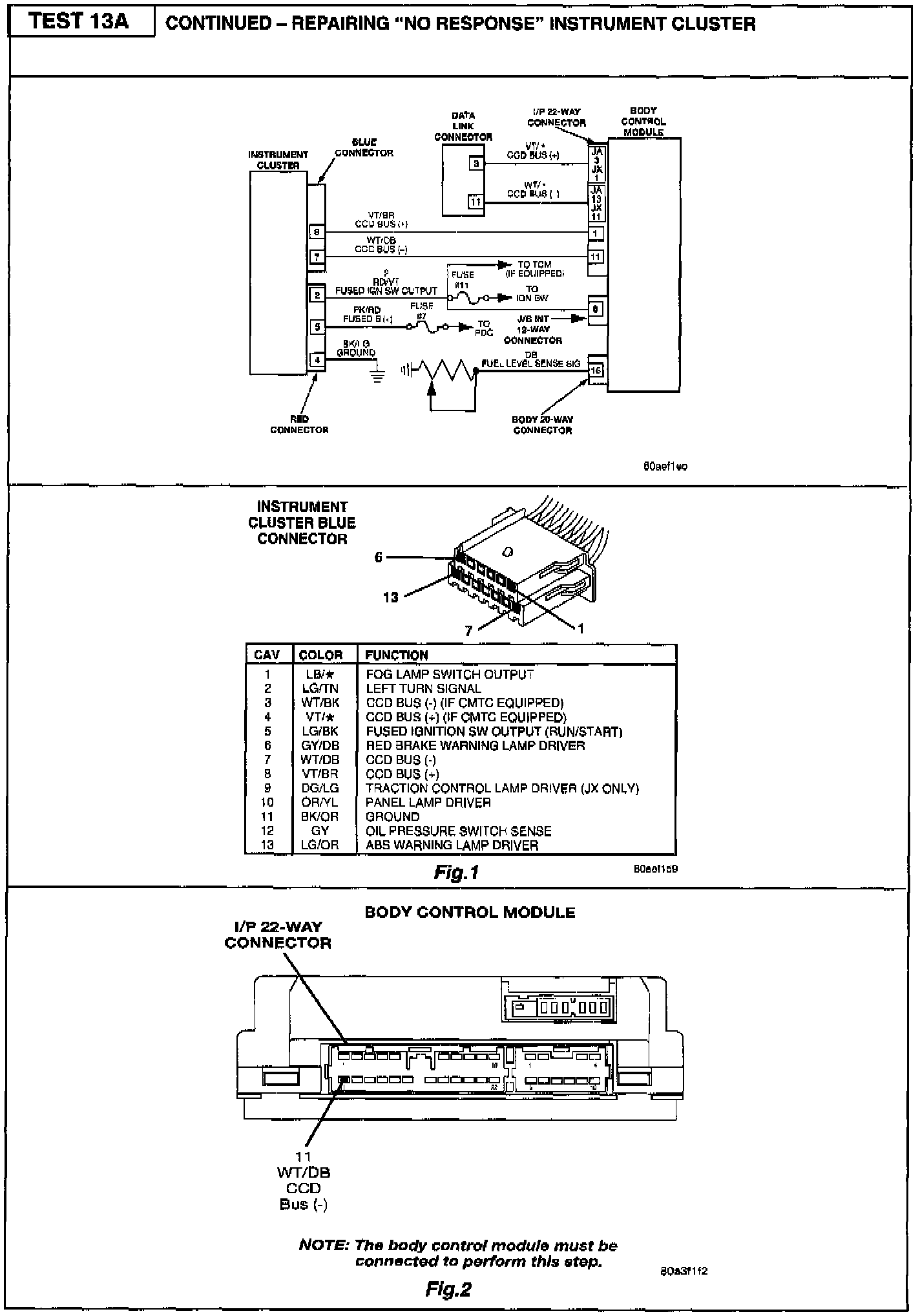

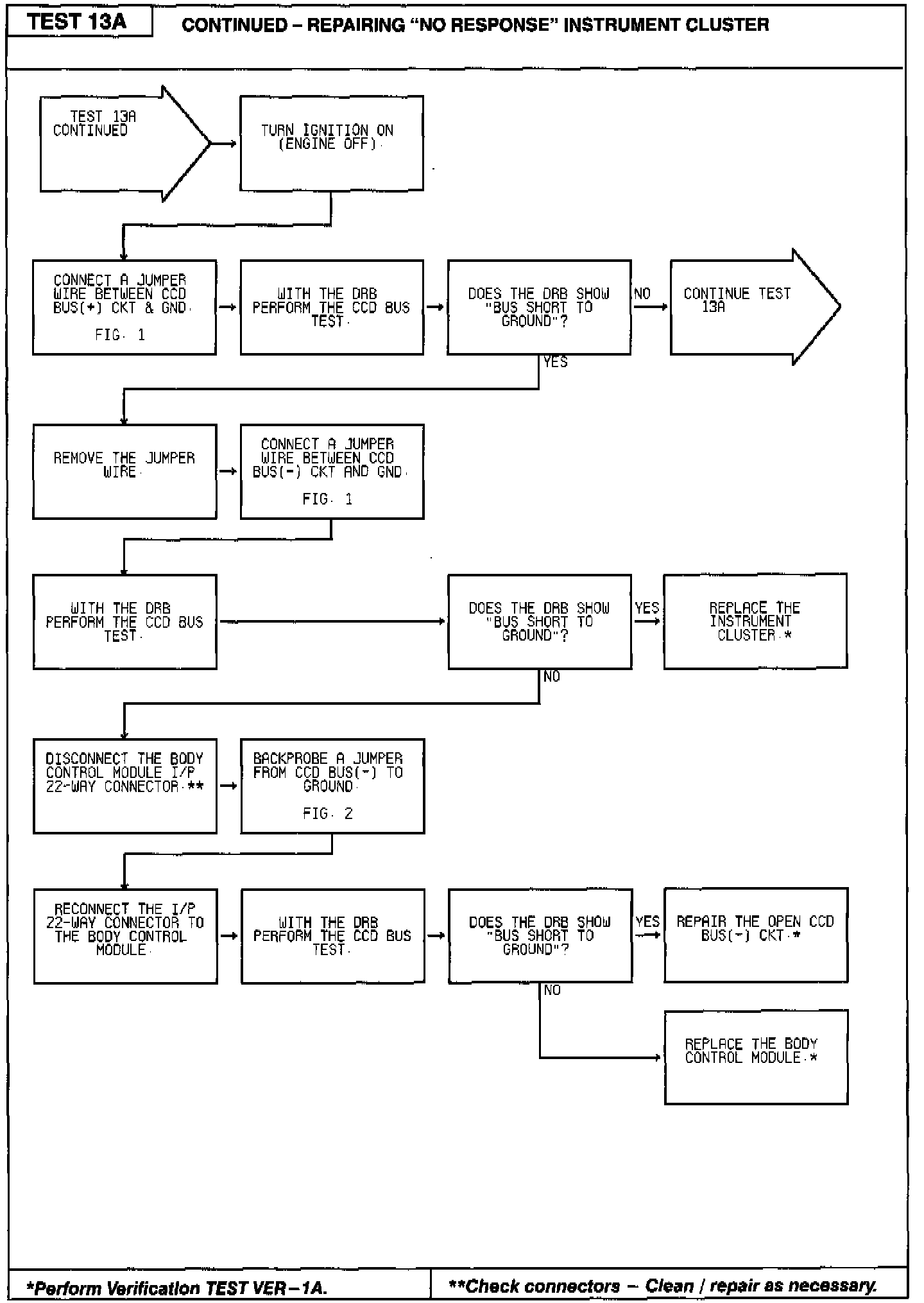

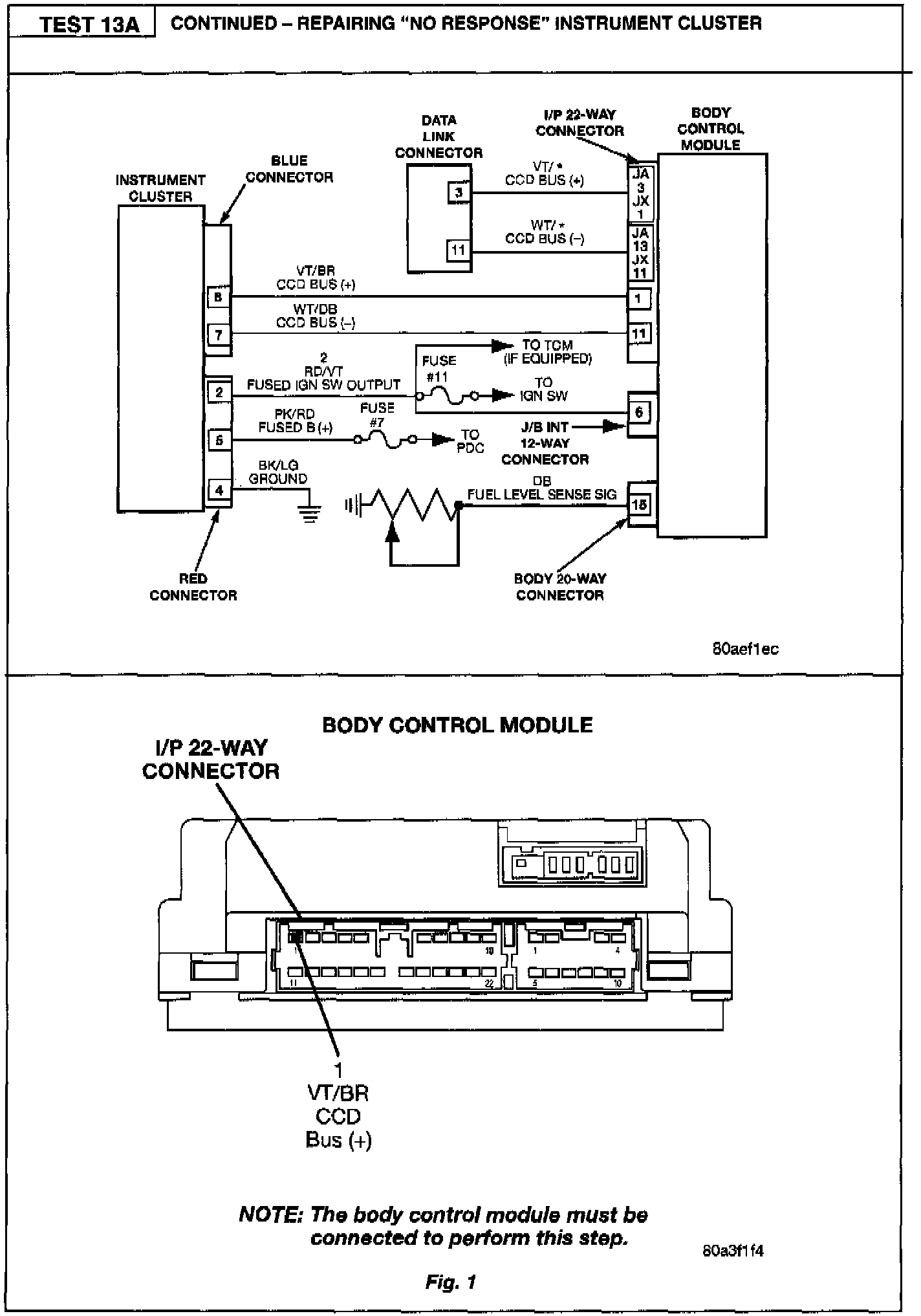

Part 2 figures:






Part 3 of 3:

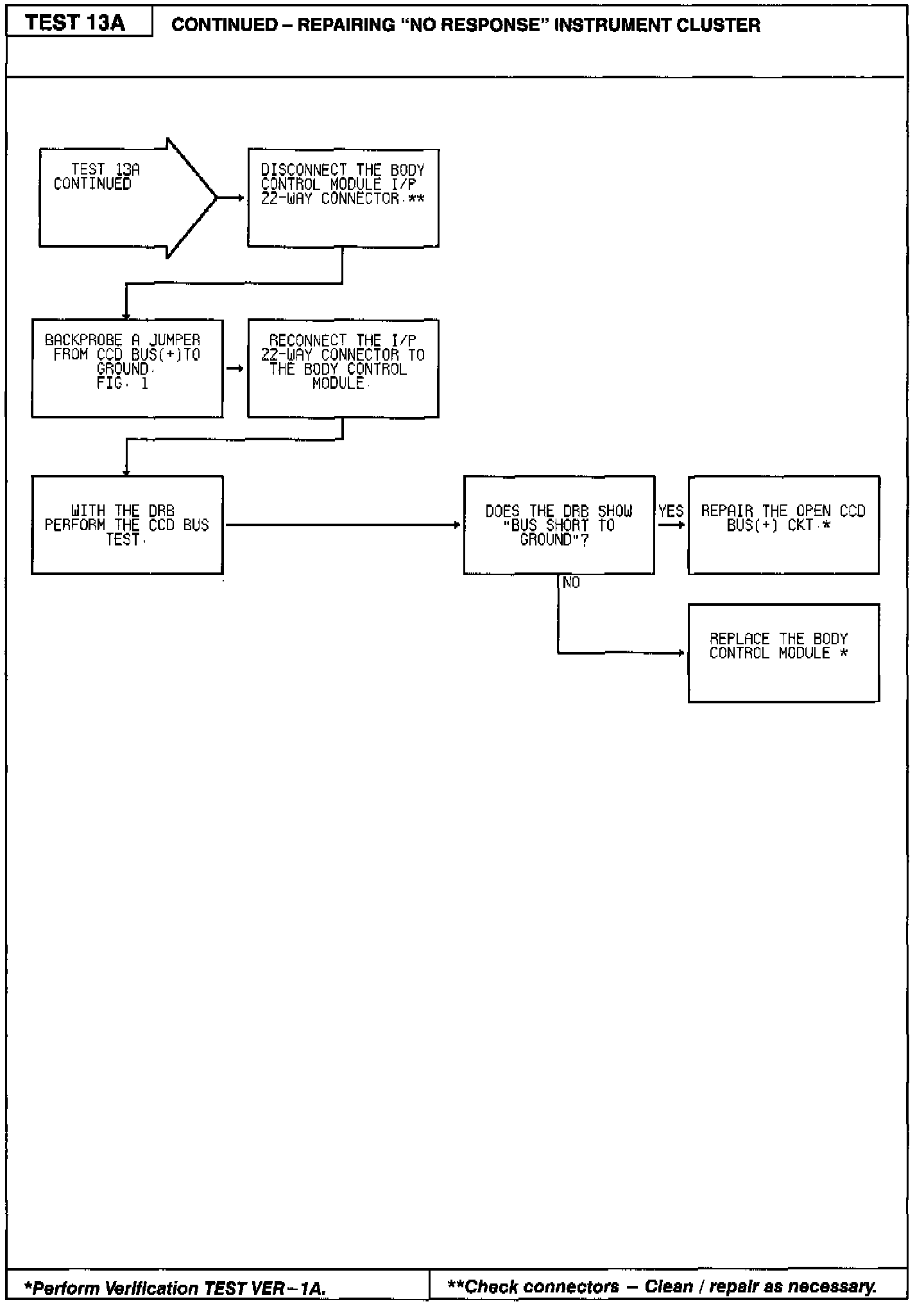

Part 3 figures:
