Sebring Convertible V6-2.5L VIN H
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Trouble Code (TC) Tests
>>
TC-182A O2 Sensor 2/2 Shorted to Ground
TC-182A O2 Sensor 2/2 Shorted to Ground

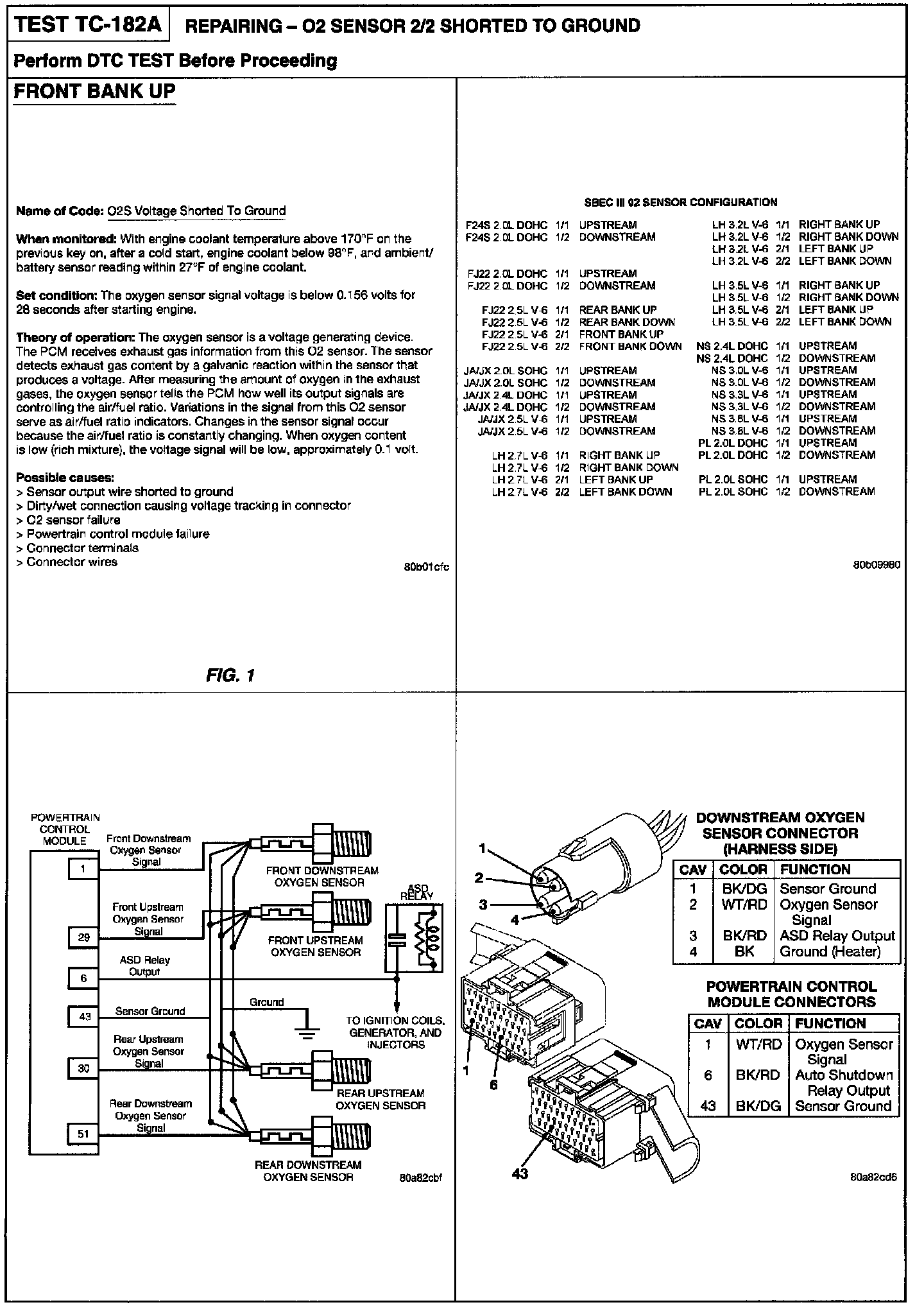

Related Image:

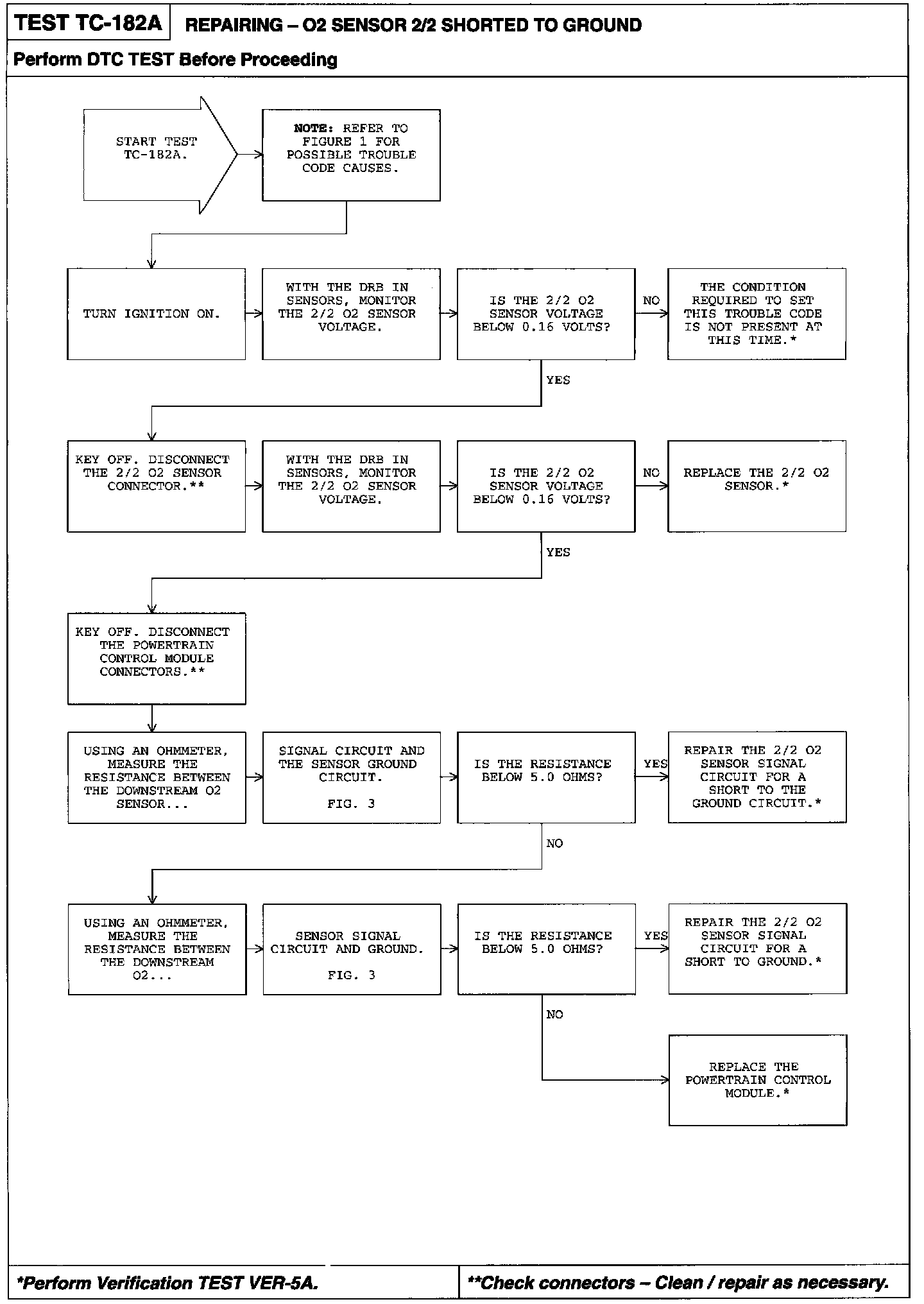

Diagnostic Chart:
