Home >> Chrysler >> 1998 >> Sebring Convertible V6-2.5L VIN H >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Trouble Code (TC) Tests >> TC-160A EVAP Leak Monitor Small Leak Detected

TC-160A EVAP Leak Monitor Small Leak Detected

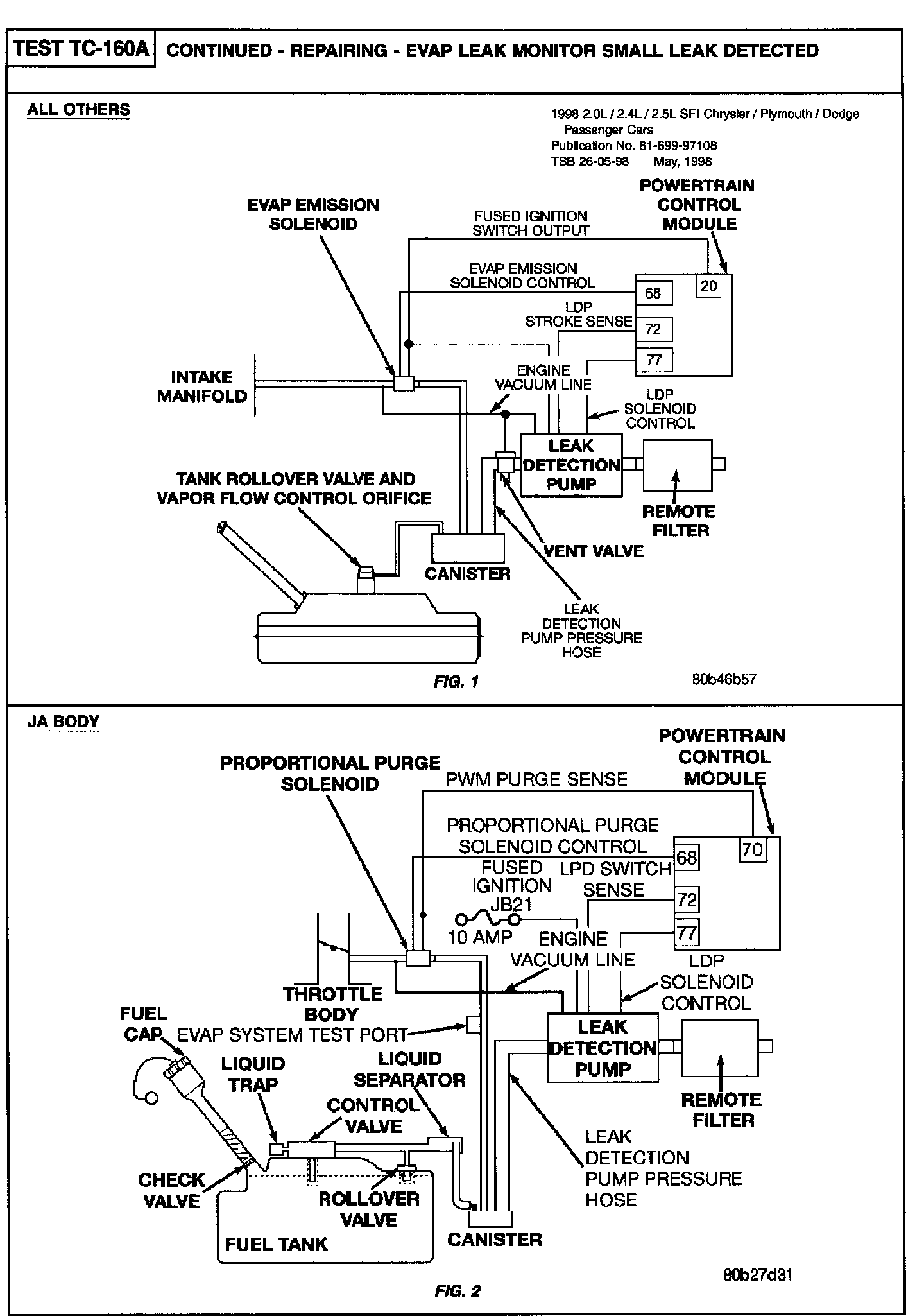

��B Related Image:

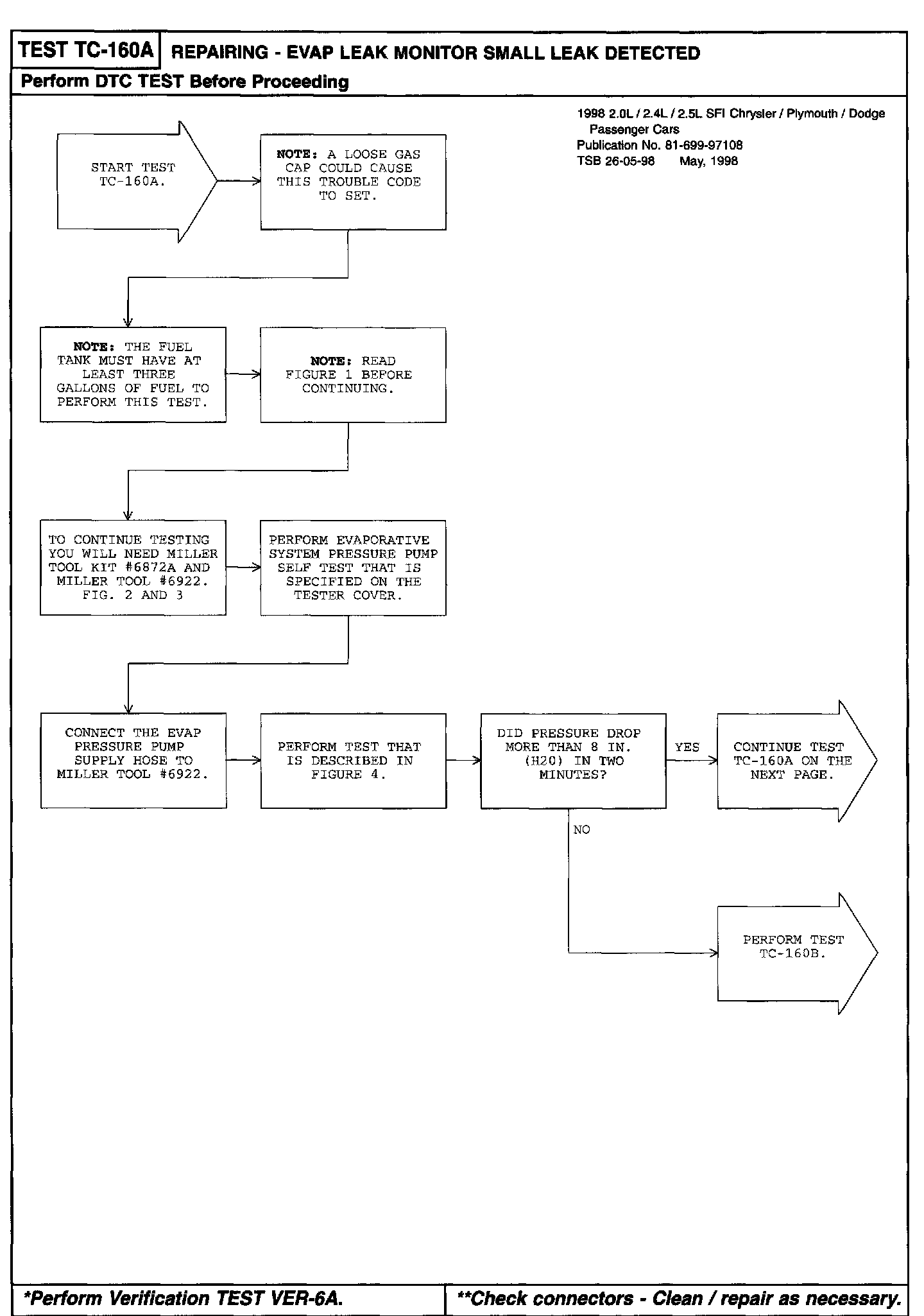

r�B Diagnostic Chart:

��B Related Image:

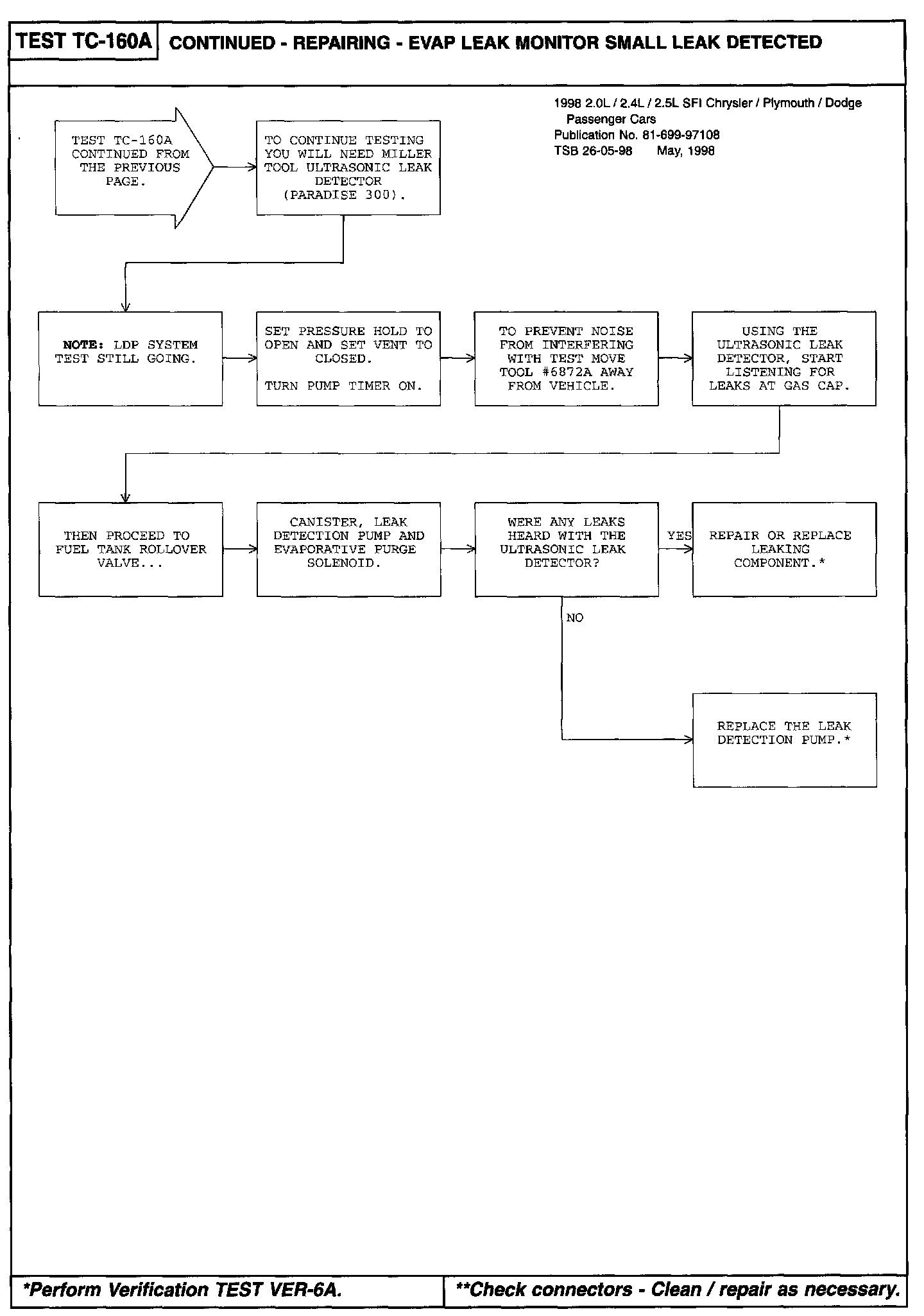

Diagnostic Chart:
