Home >> Chrysler >> 1998 >> Sebring Convertible V6-2.5L VIN H >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Trouble Code (TC) Tests >> TC-130A O2 Sensor 2/2 Stays at Center

TC-130A O2 Sensor 2/2 Stays at Center

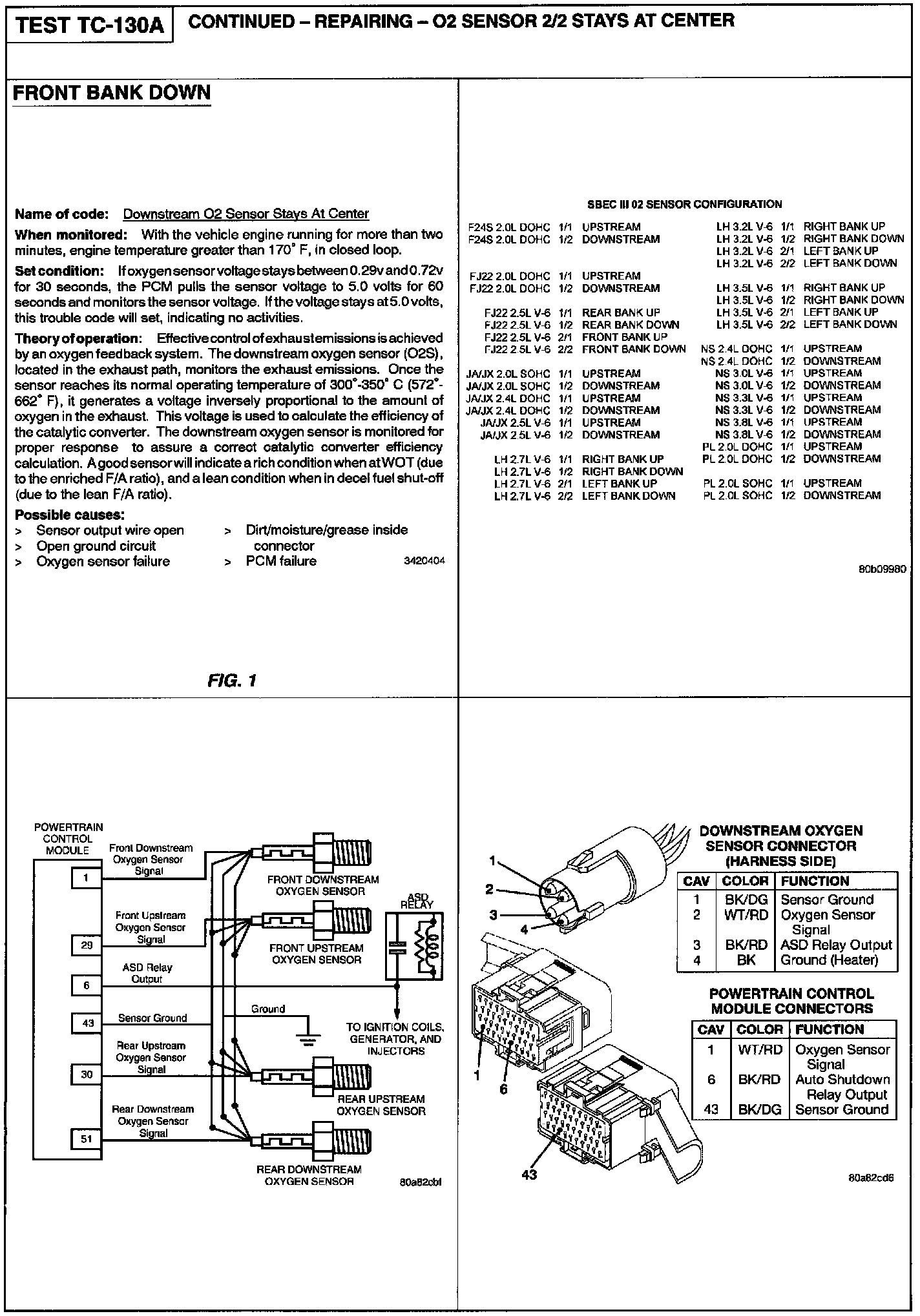

Related Image:

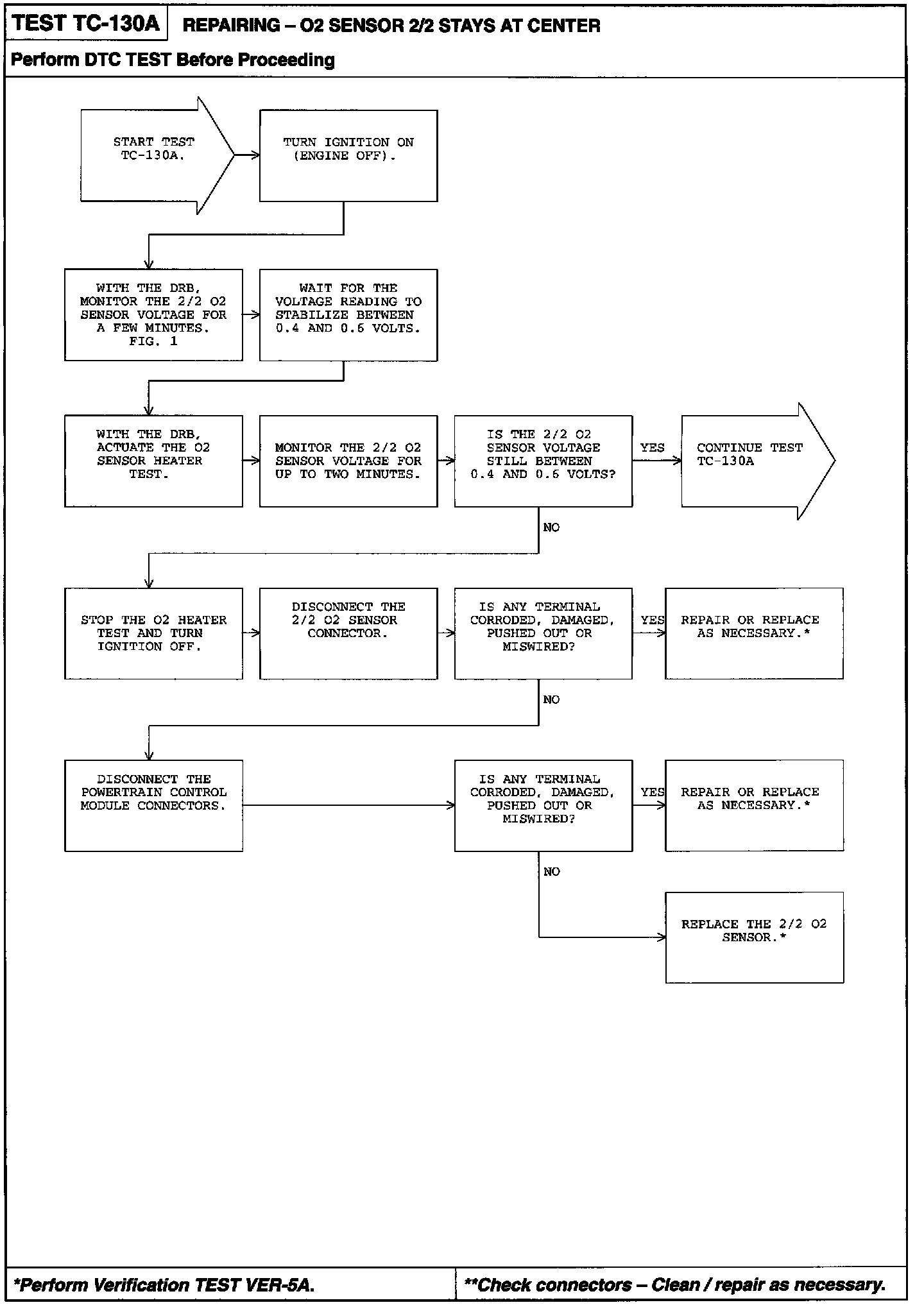

Diagnostic Chart:

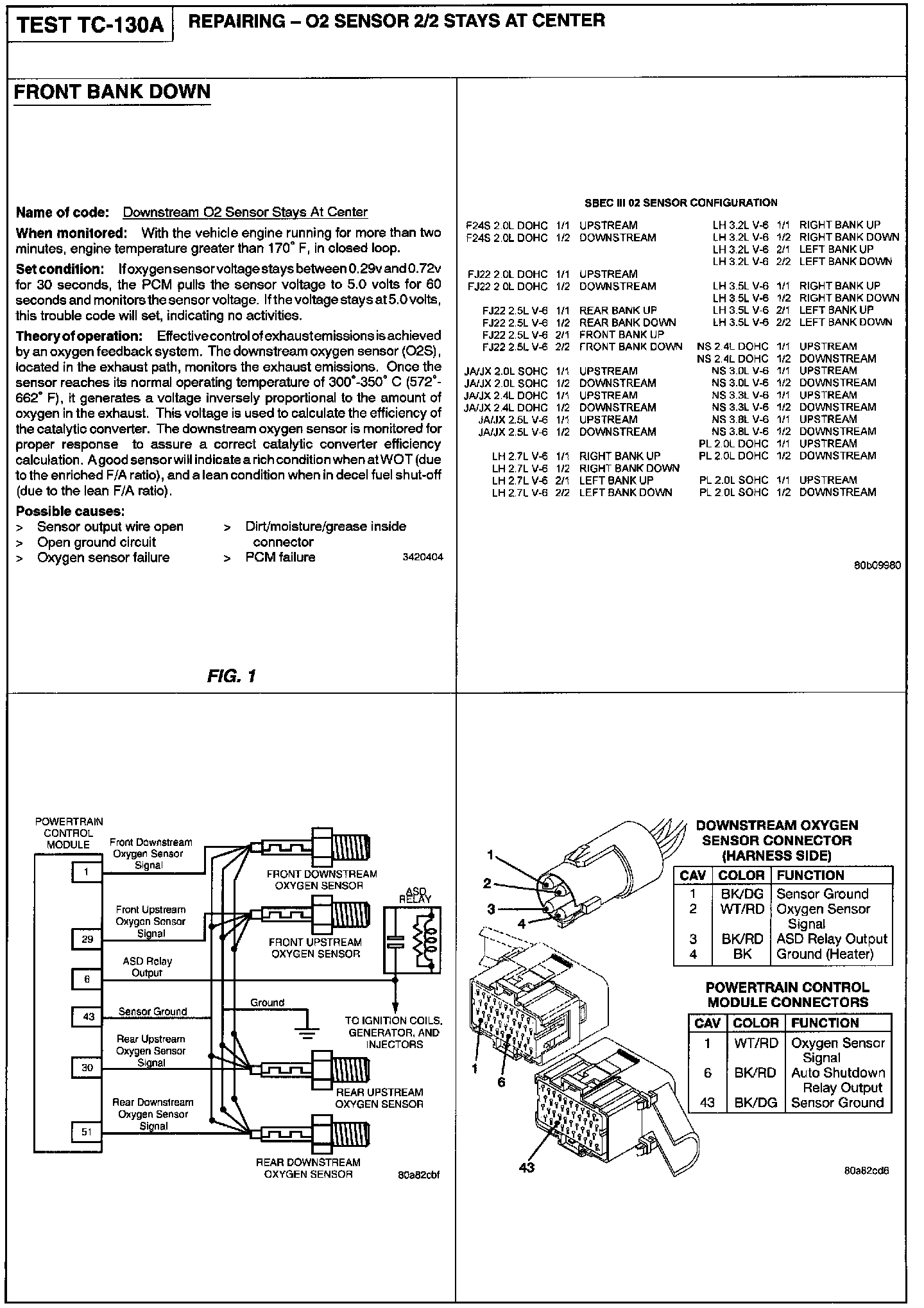

Related Image:



Diagnostic Chart:
