TC-105A 1/2 O2 Sensor Heater Failure

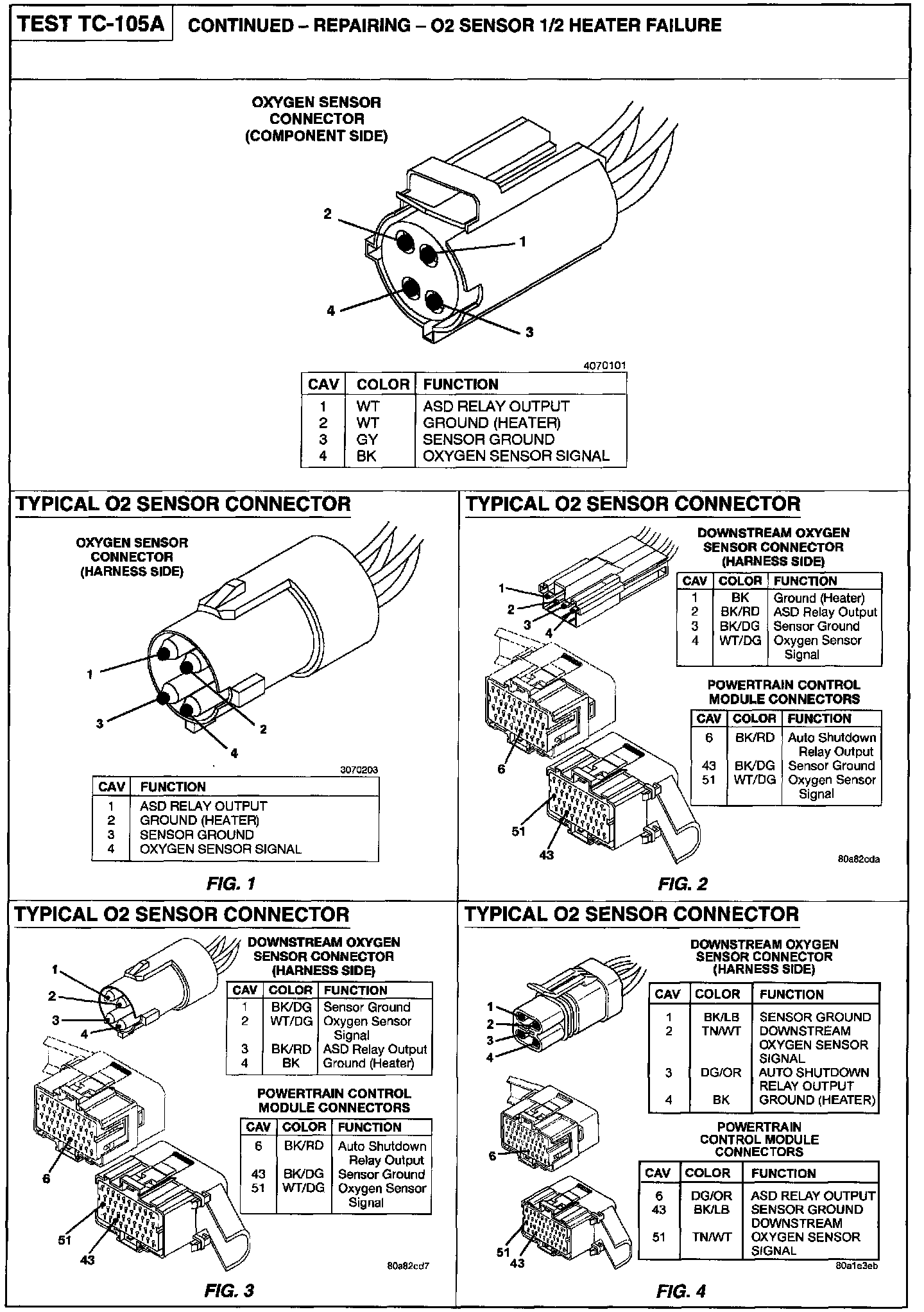

Related Image:

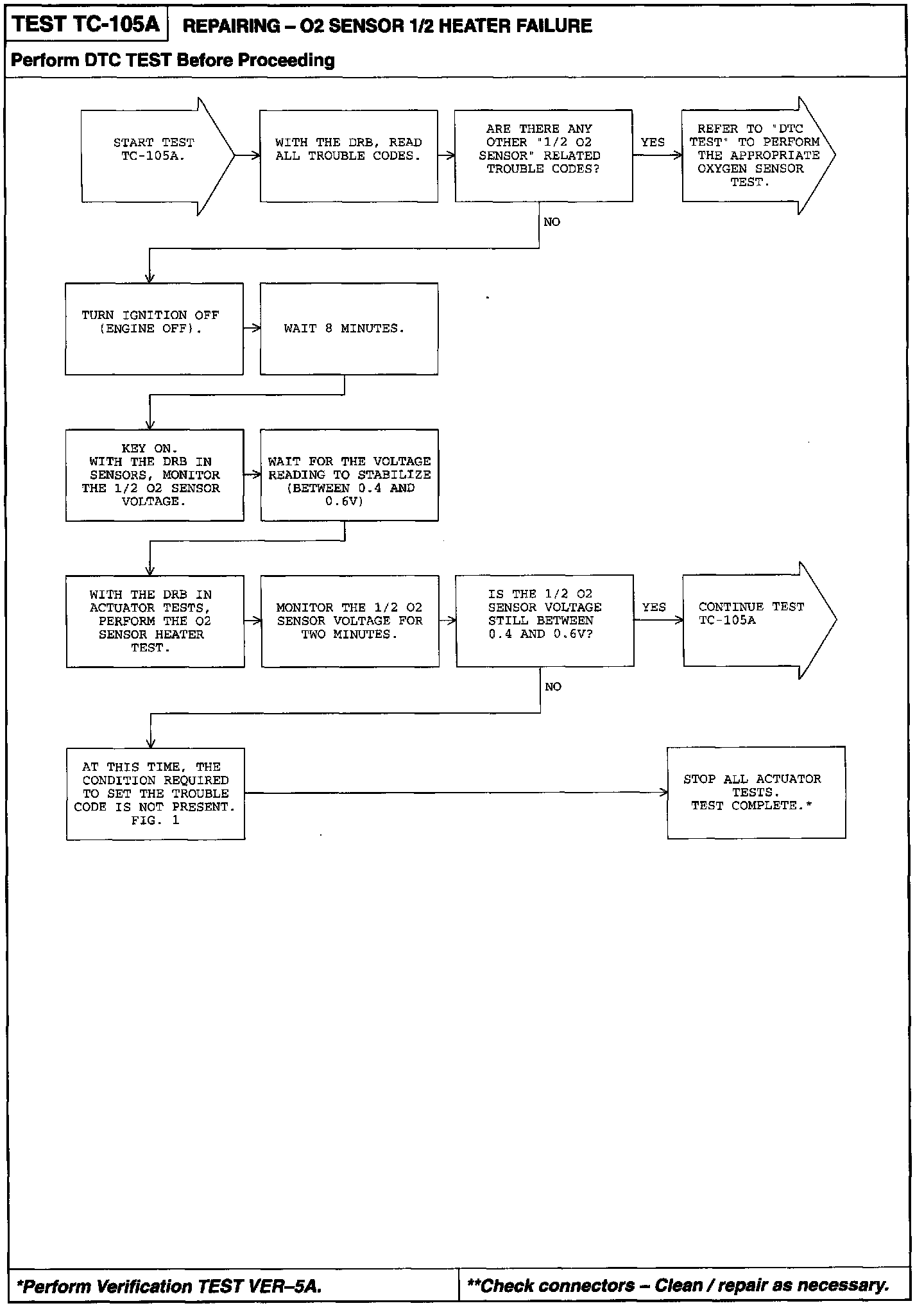

Diagnostic Chart:

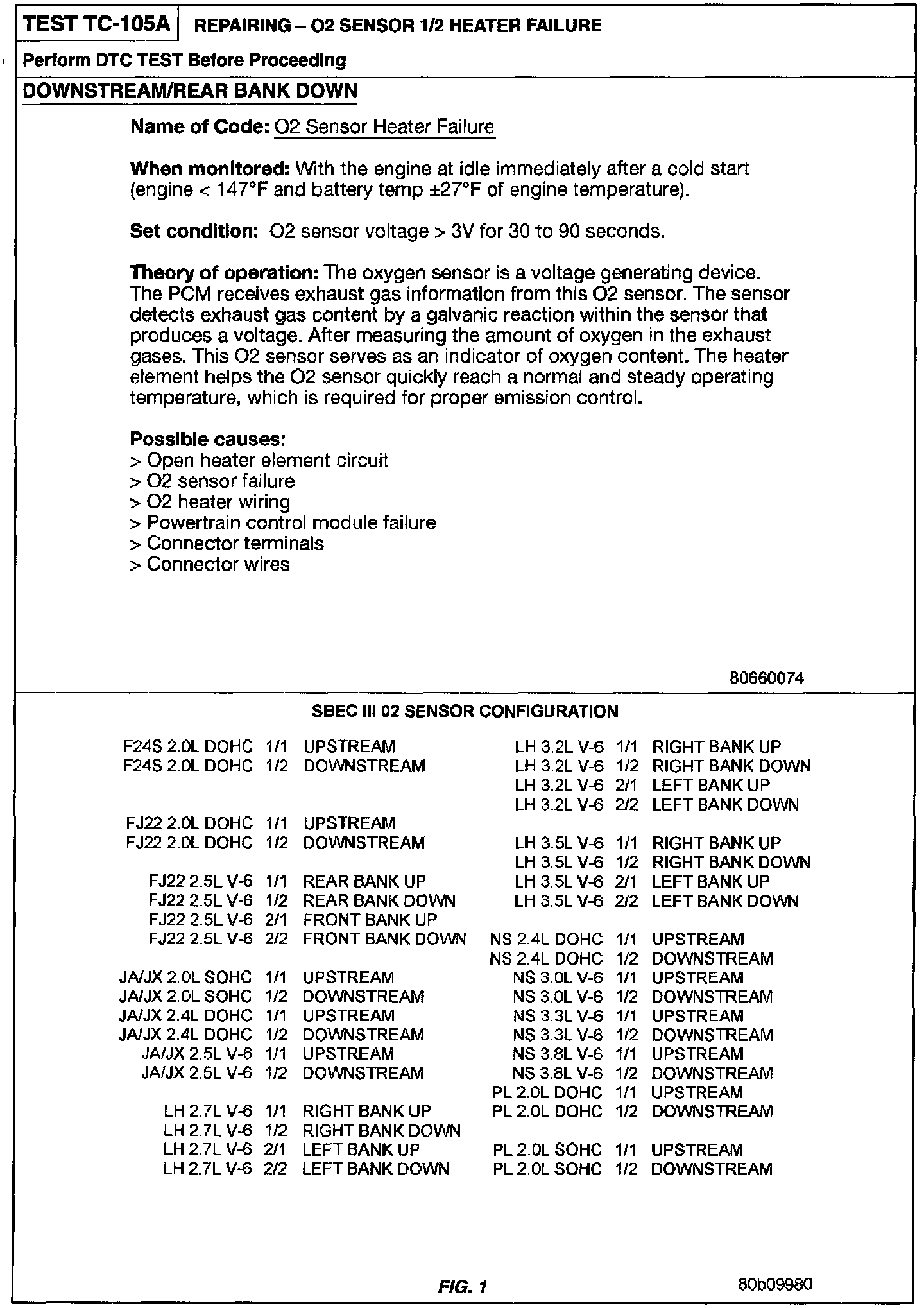

Related Image:

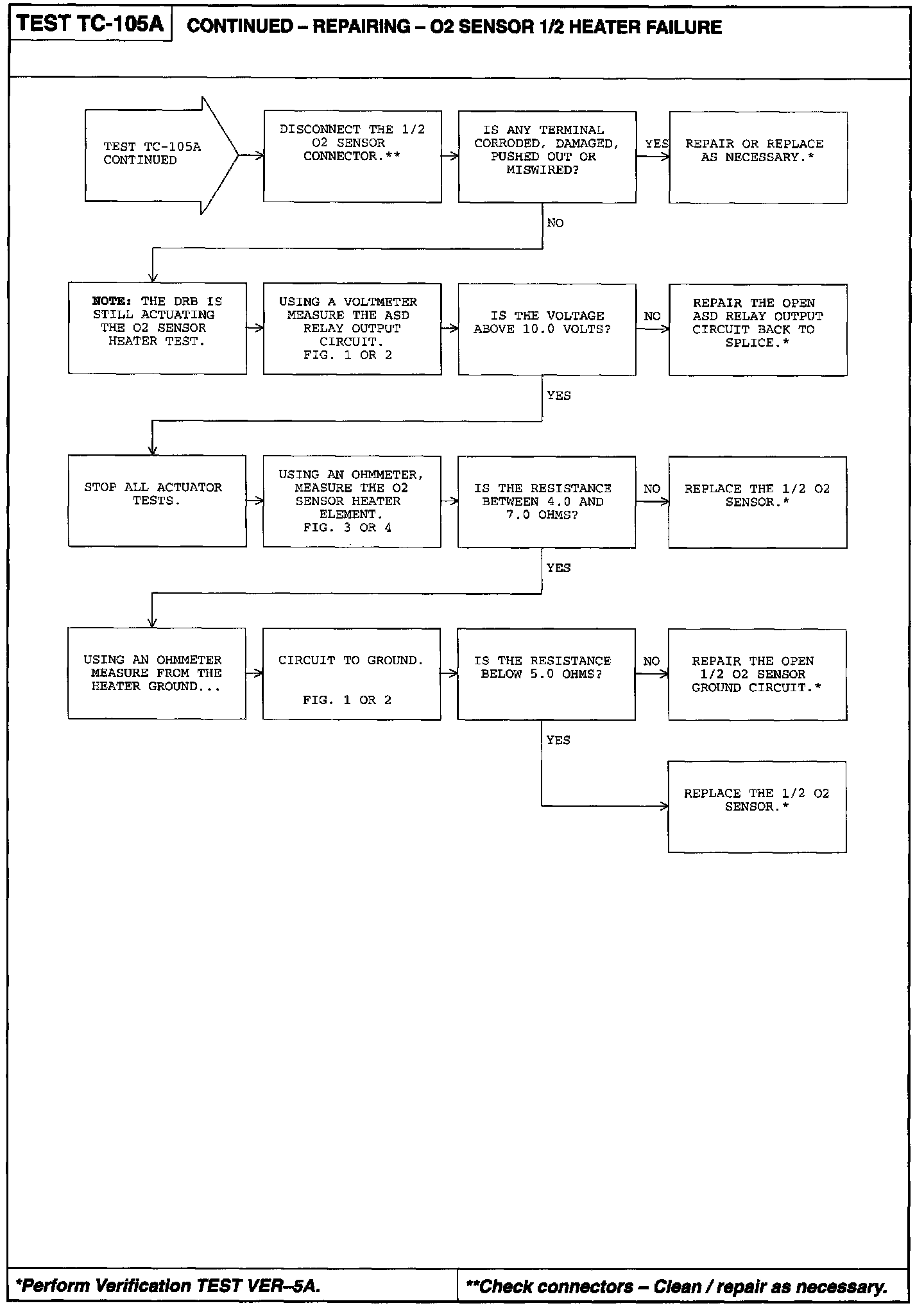

Diagnostic Chart:
