Home >> Chrysler >> 1998 >> Sebring Convertible V6-2.5L VIN H >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Trouble Code (TC) Tests >> TC-103A O2 Sensor 1/1 Heater Failure

TC-103A O2 Sensor 1/1 Heater Failure

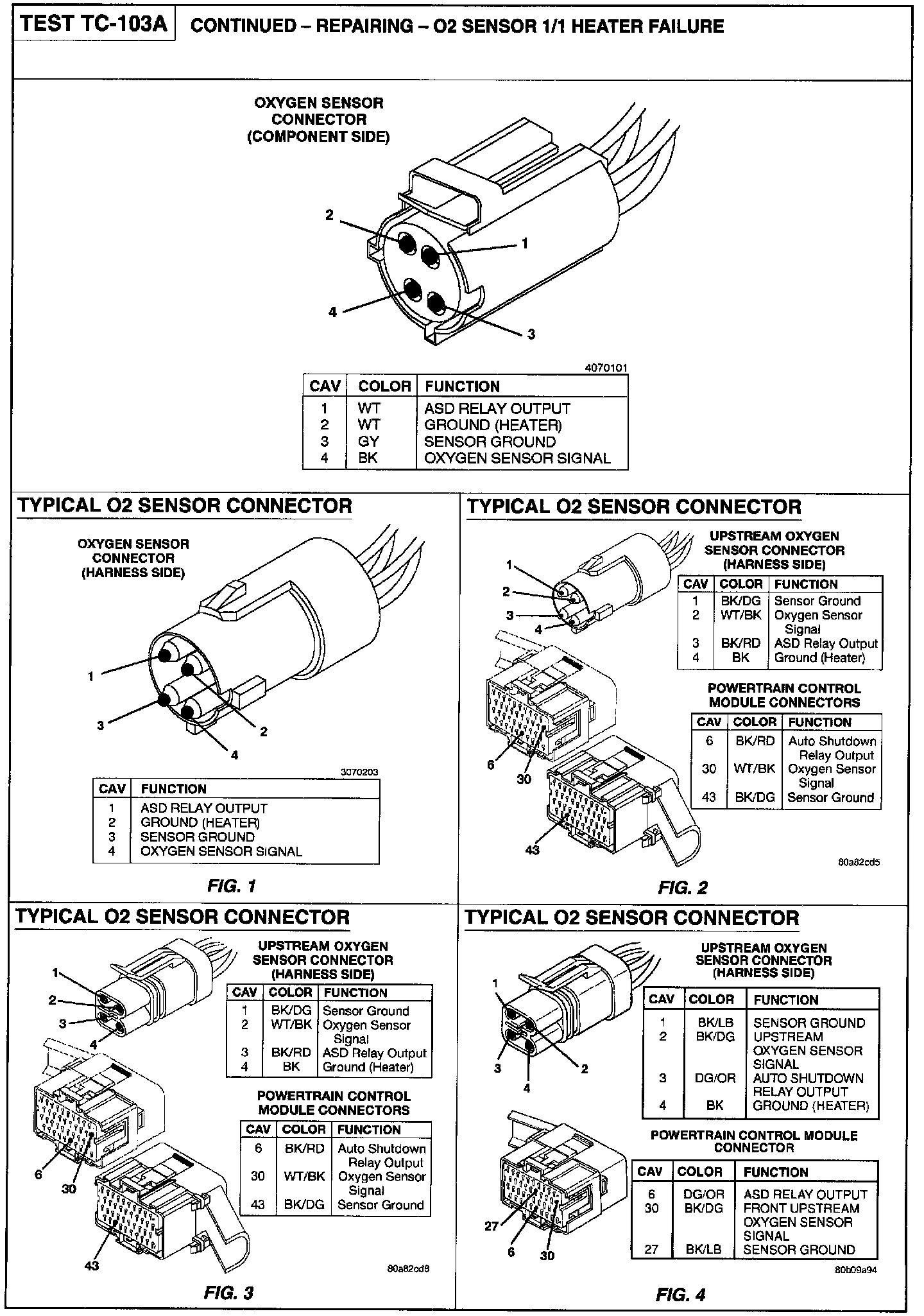

Related Image:

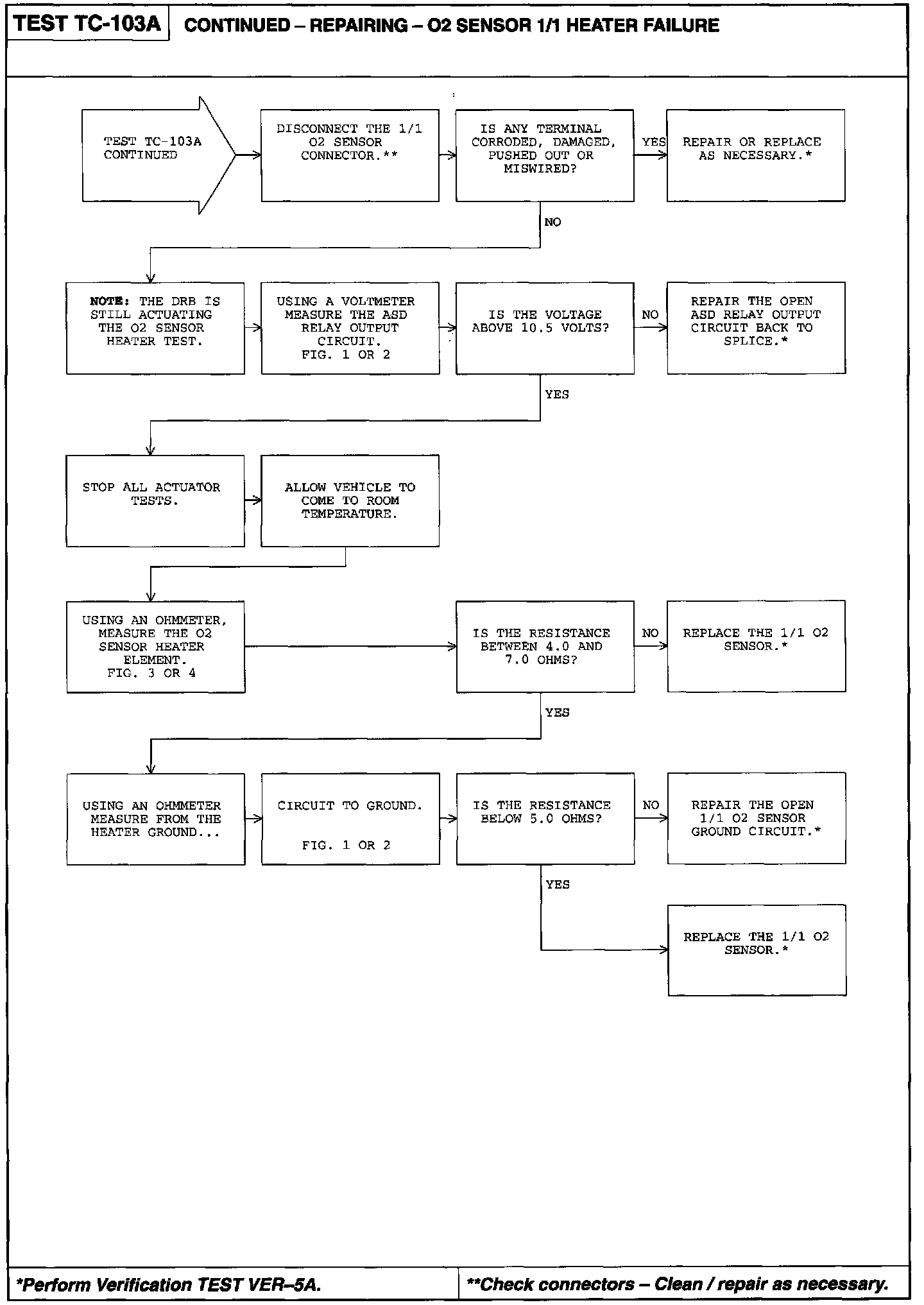

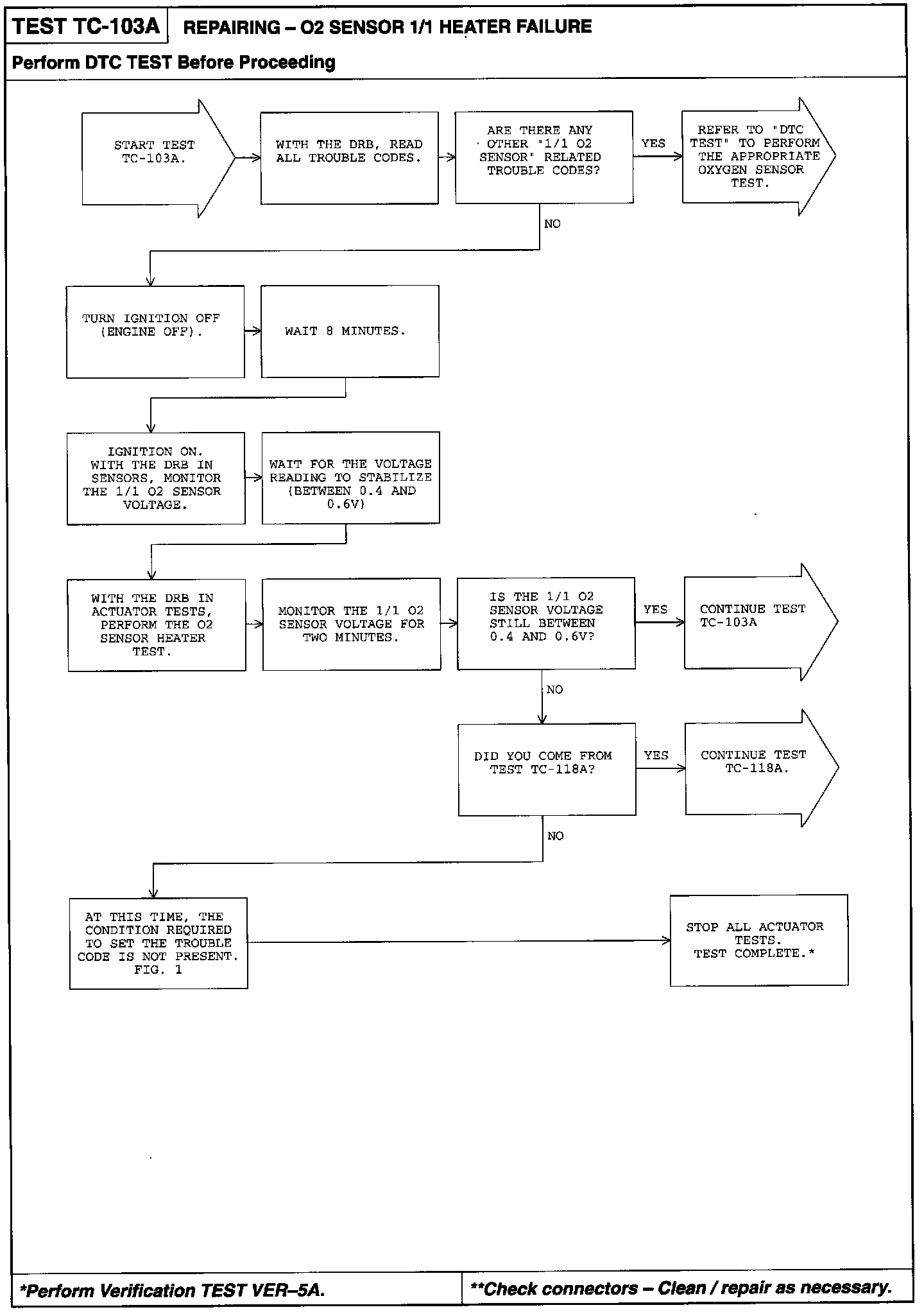

Diagnostic Chart:

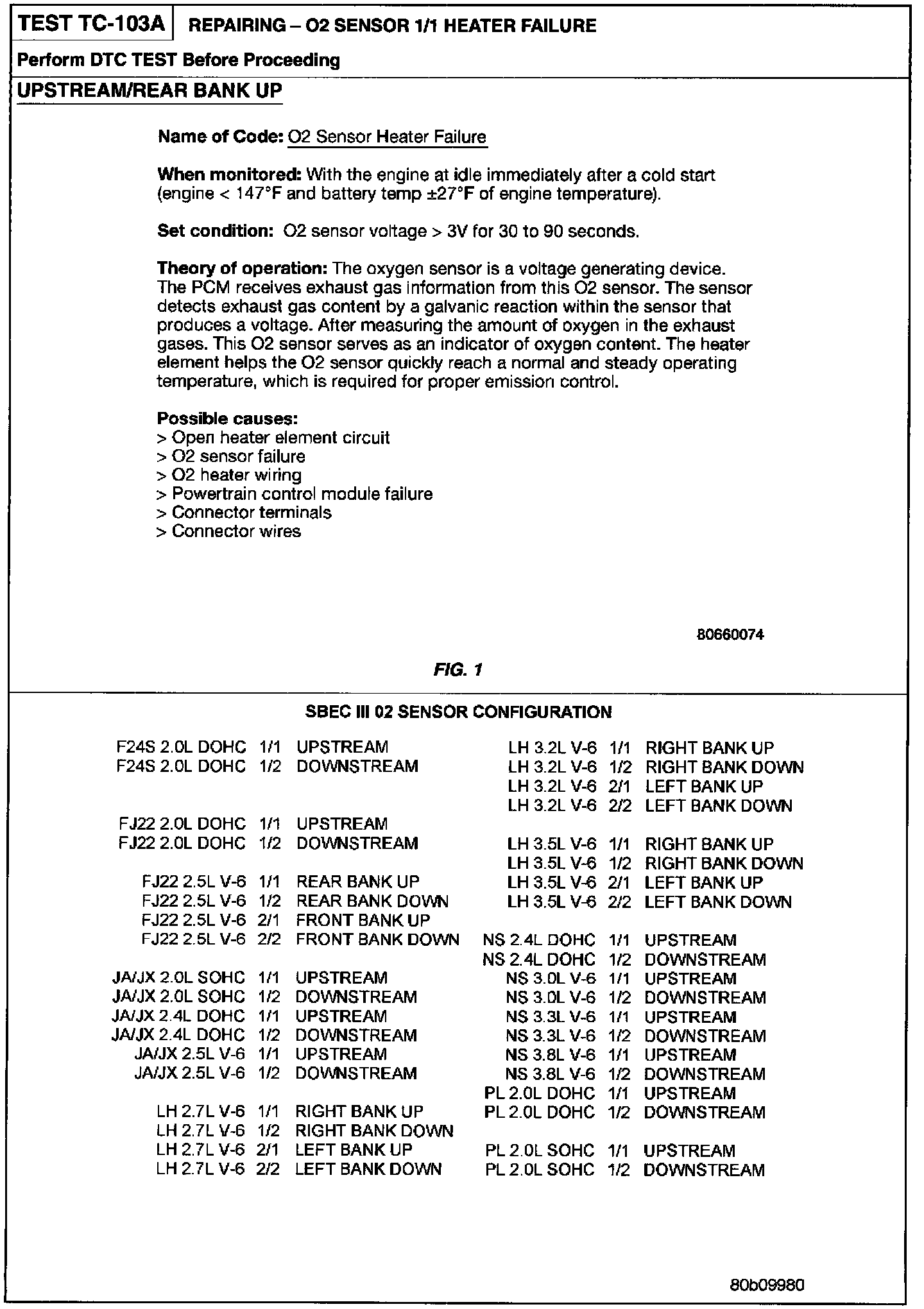

Related Image:

Diagnostic Chart:
