A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Speed Control (SC) Tests
>>
SC-5A Checking the Park/Neutral Position Switch
SC-5A Checking the Park/Neutral Position Switch

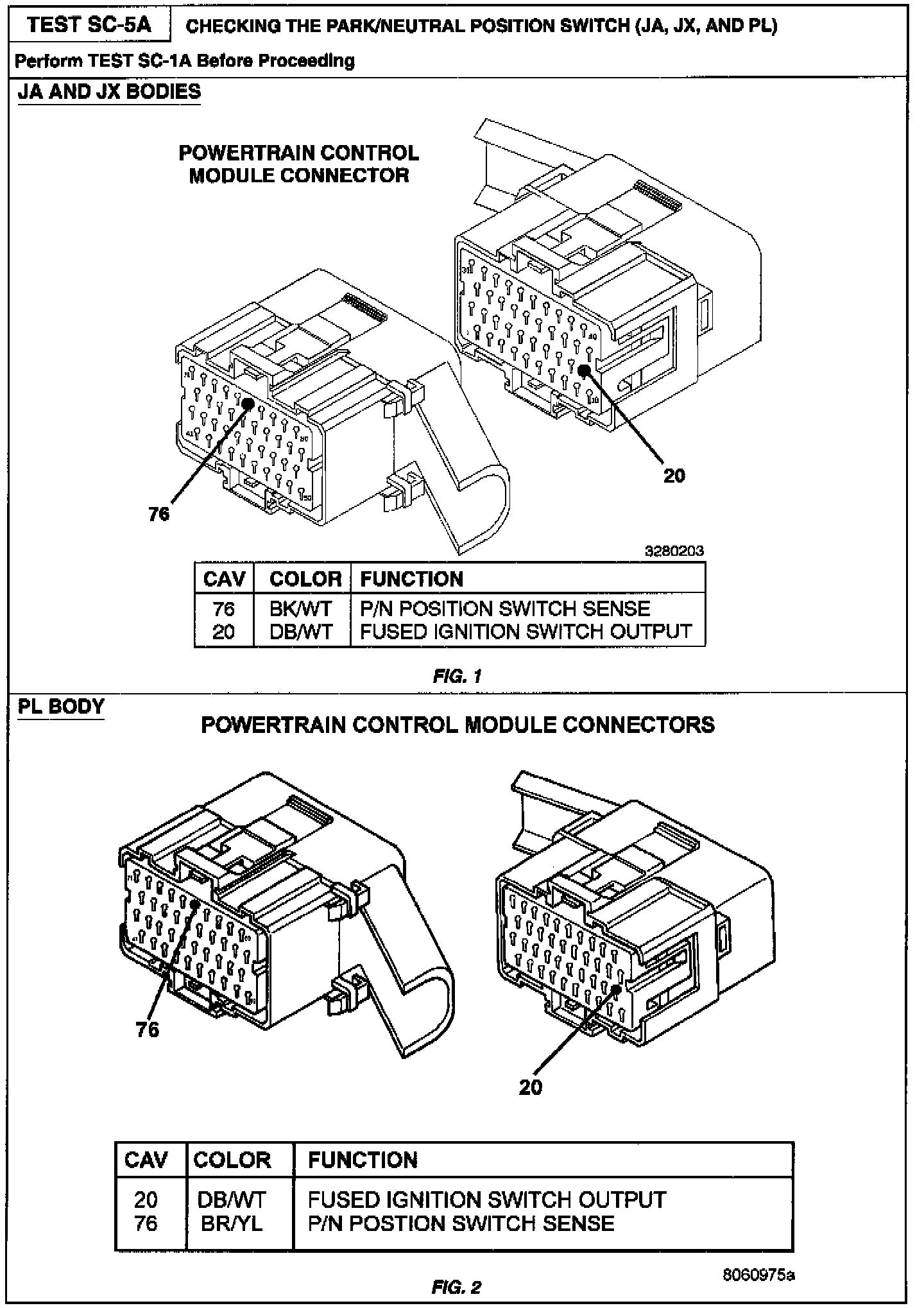

Related Image:

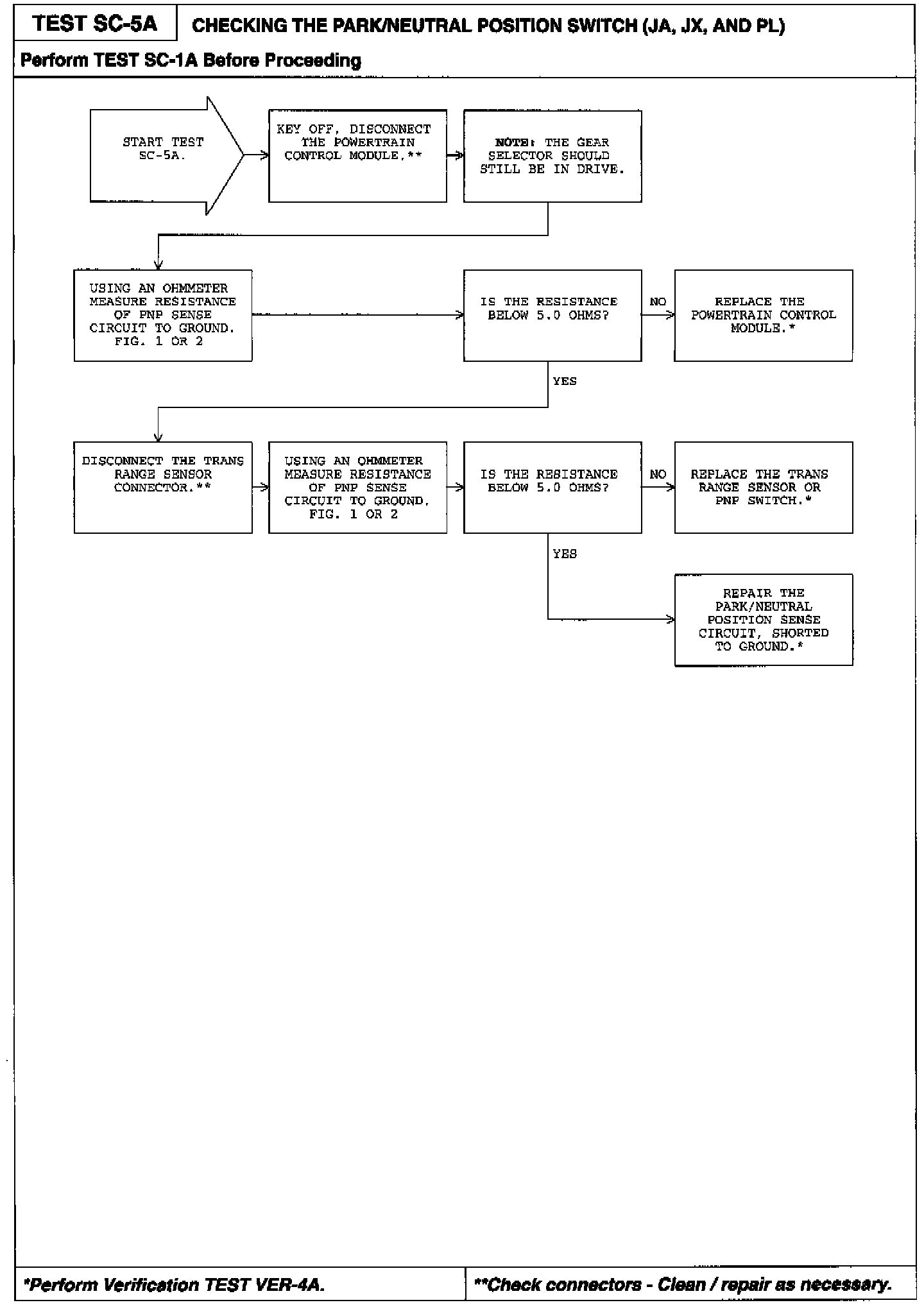

Diagnostic Chart:
