SC-4A Checking the Speed Control Brake Switch Sense
SC-4A Checking the Speed Control Brake Switch Sense

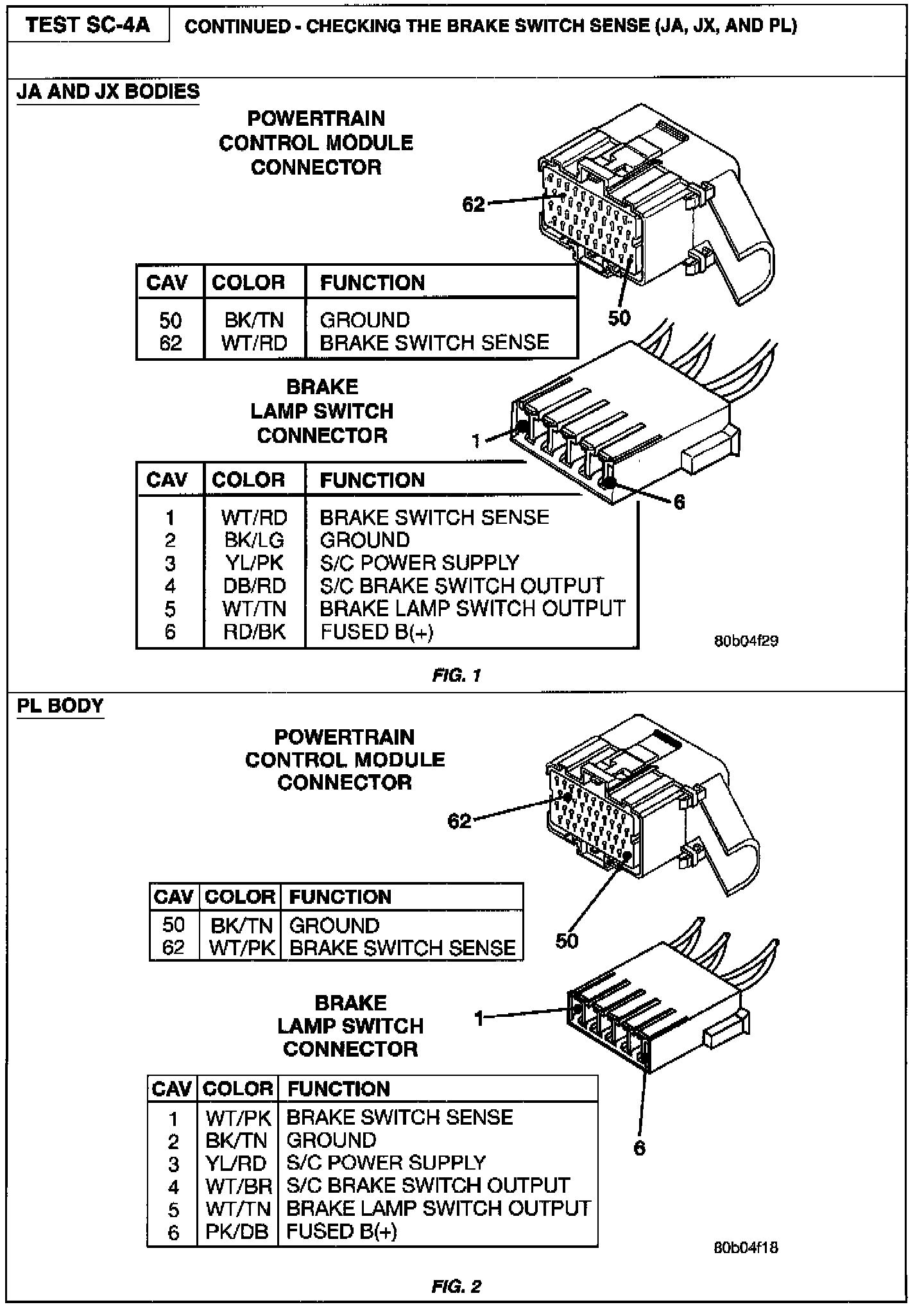

Related Image:

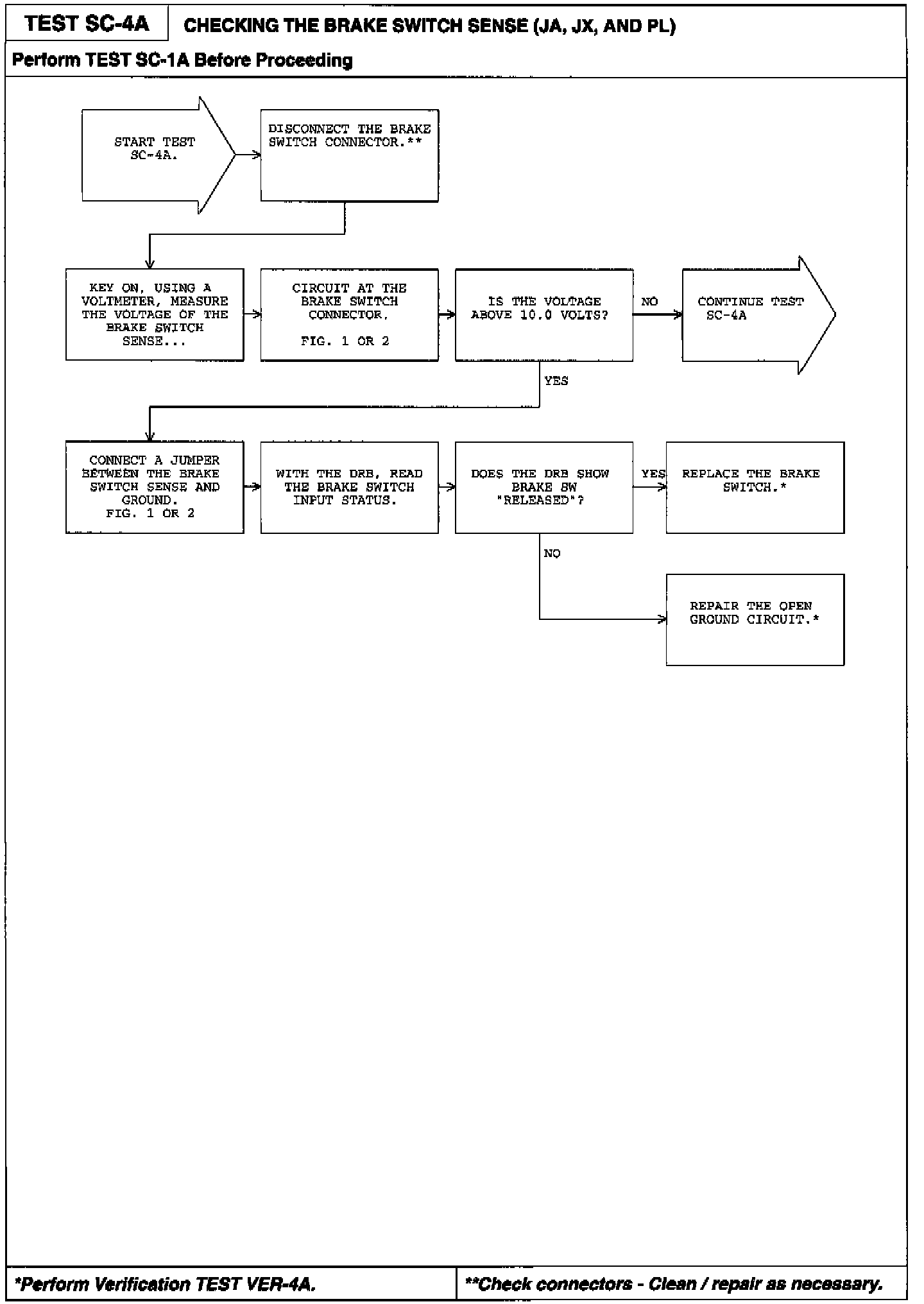

Diagnostic Chart:

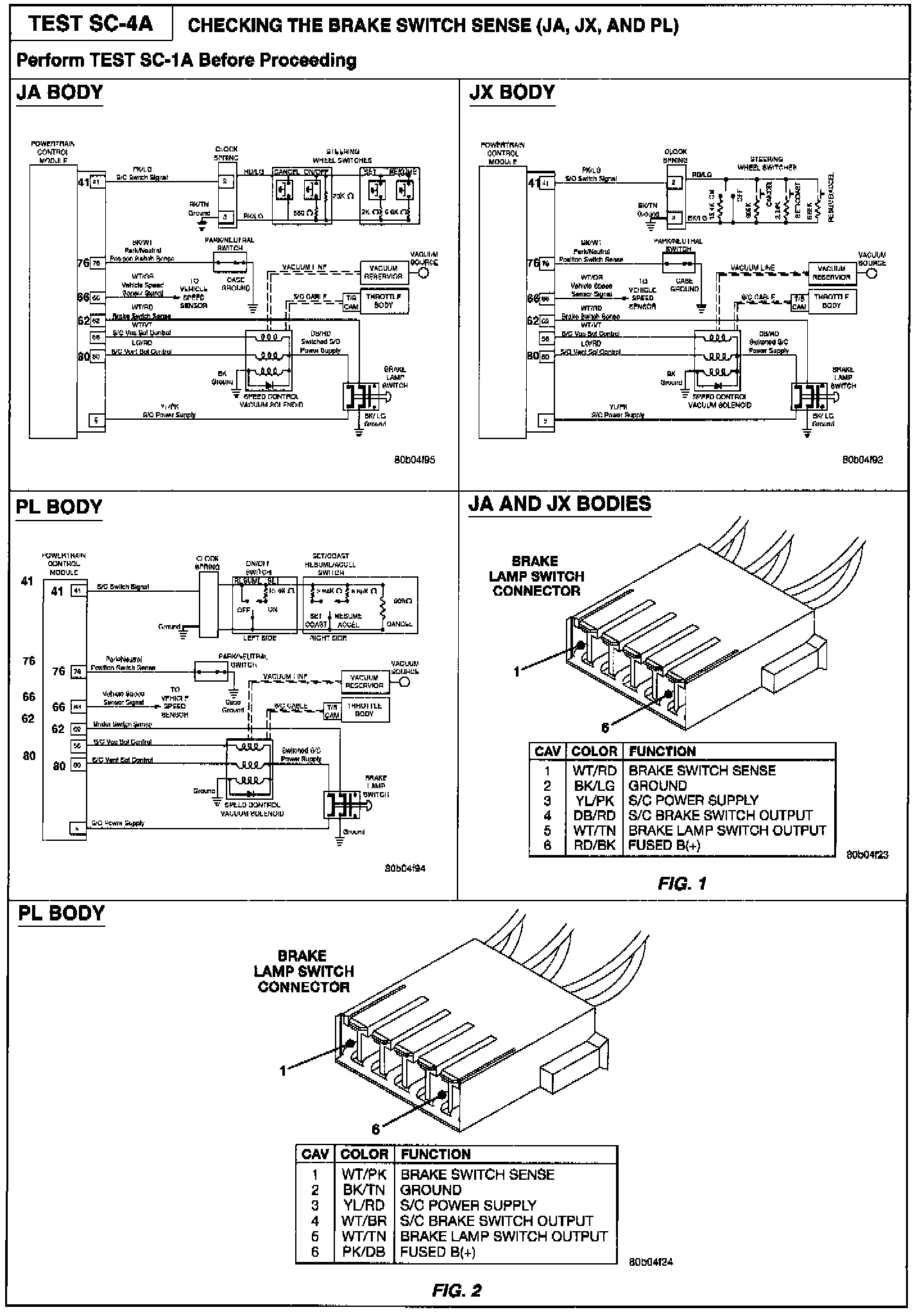

Related Image:

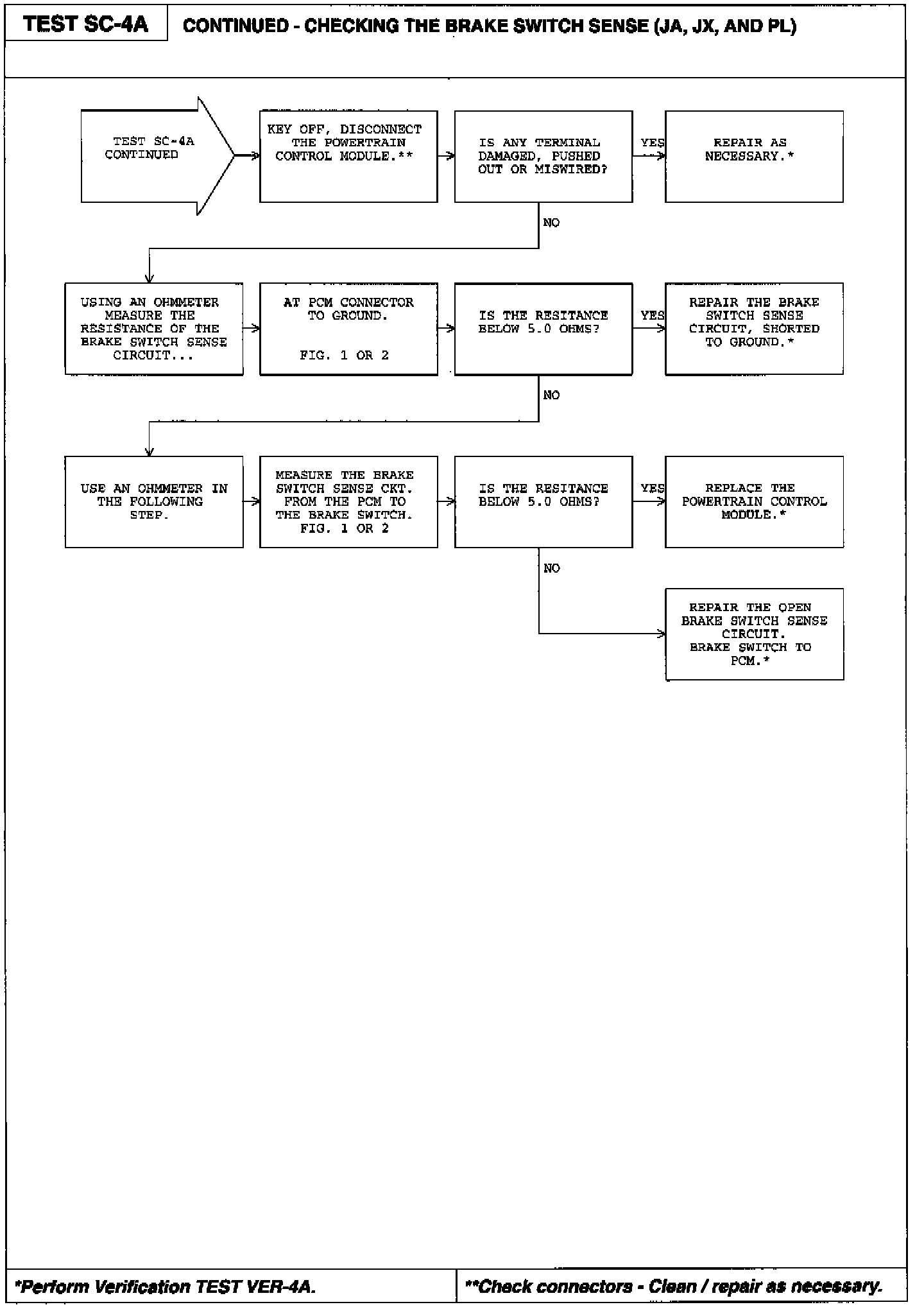

Diagnostic Chart:
