Home >> Chrysler >> 1998 >> Sebring Convertible V6-2.5L VIN H >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Instrument Cluster >> 5F Repairing Park Lamp Switch Input Circuit to Body Control Module

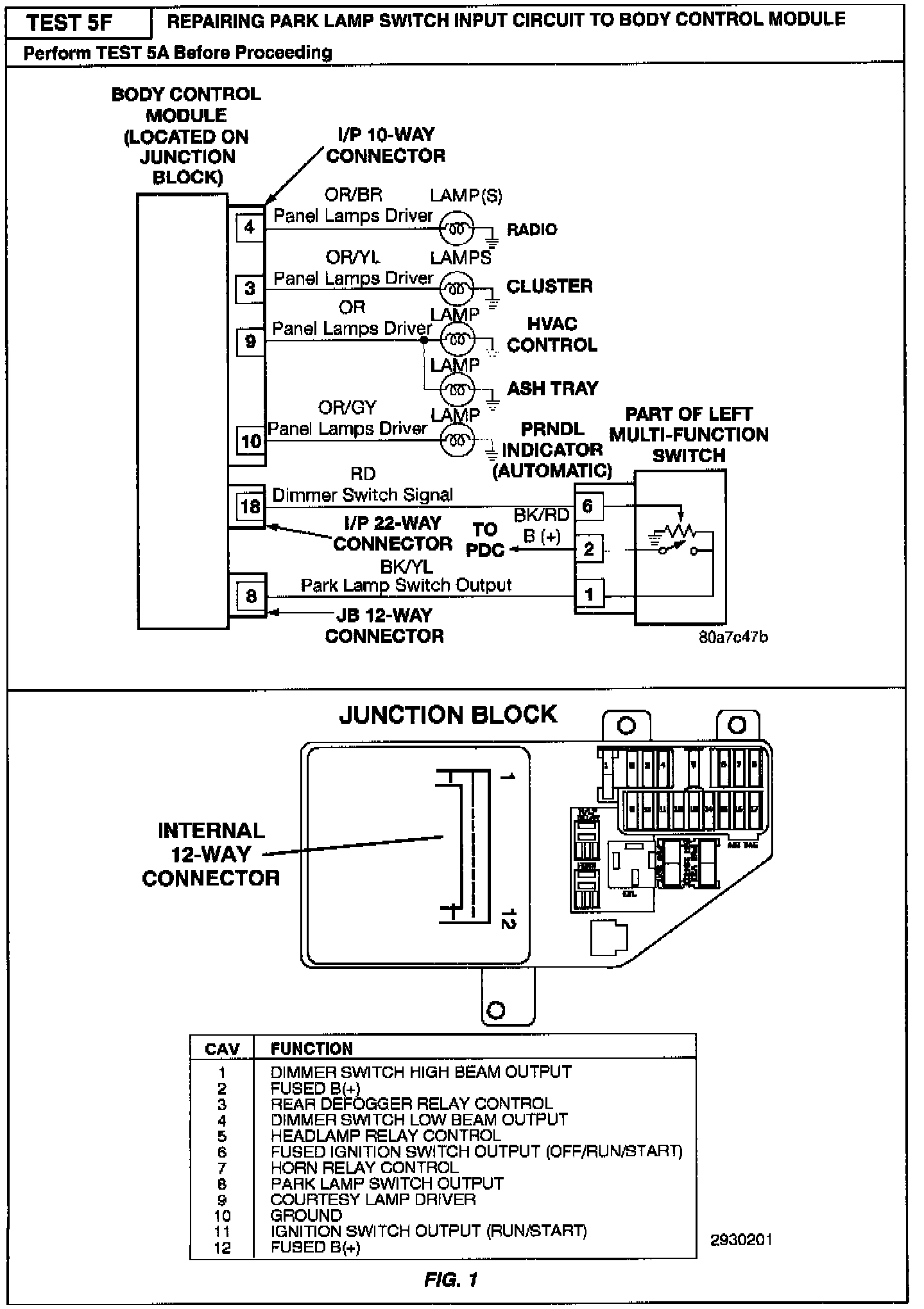

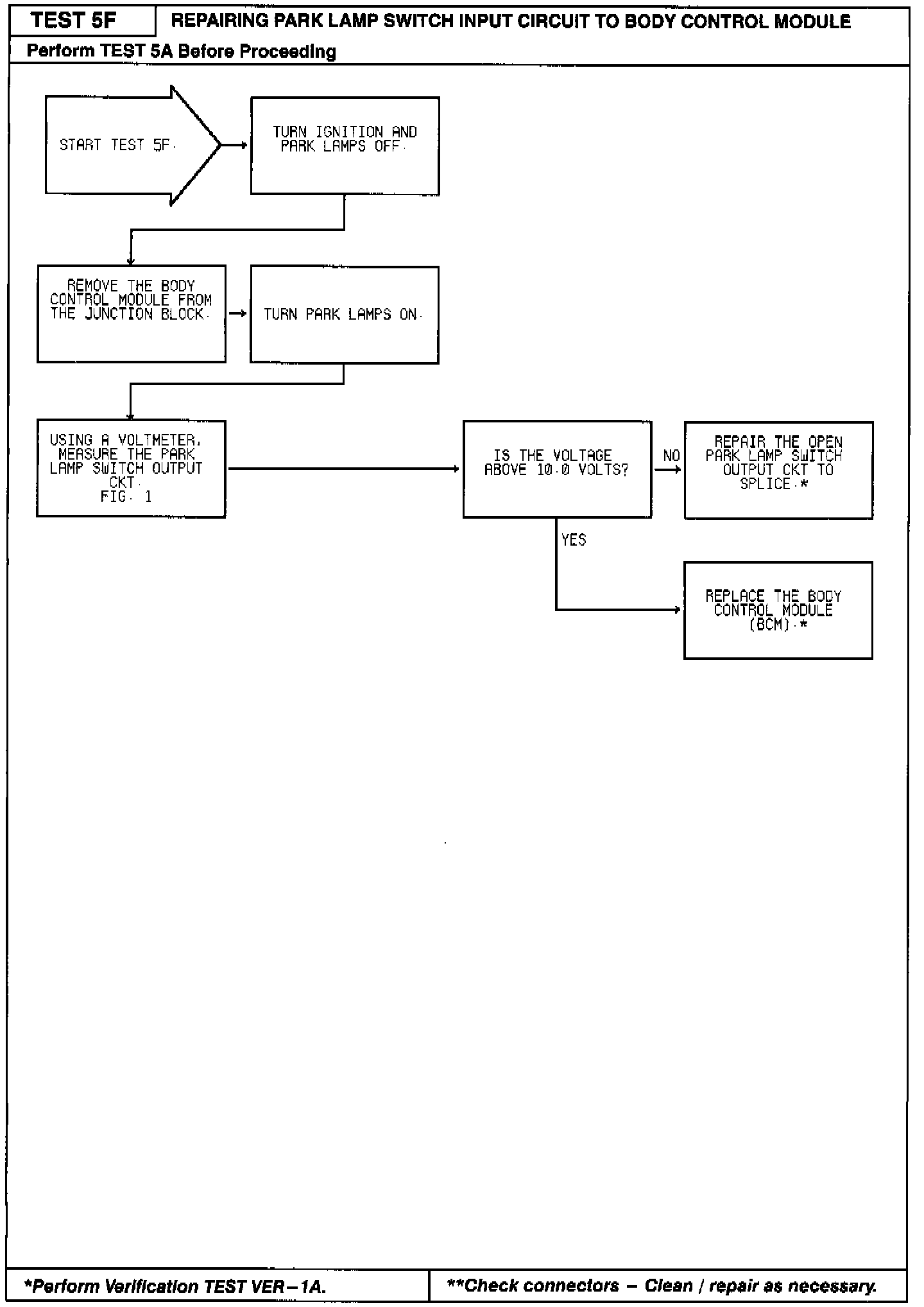

5F Repairing Park Lamp Switch Input Circuit to Body Control Module

Part 1 of 1:






Part 1 figures:
