Home >> Chrysler >> 1998 >> Sebring Convertible V6-2.5L VIN H >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Instrument Cluster >> 12A Repairing Brake Warning Lamp

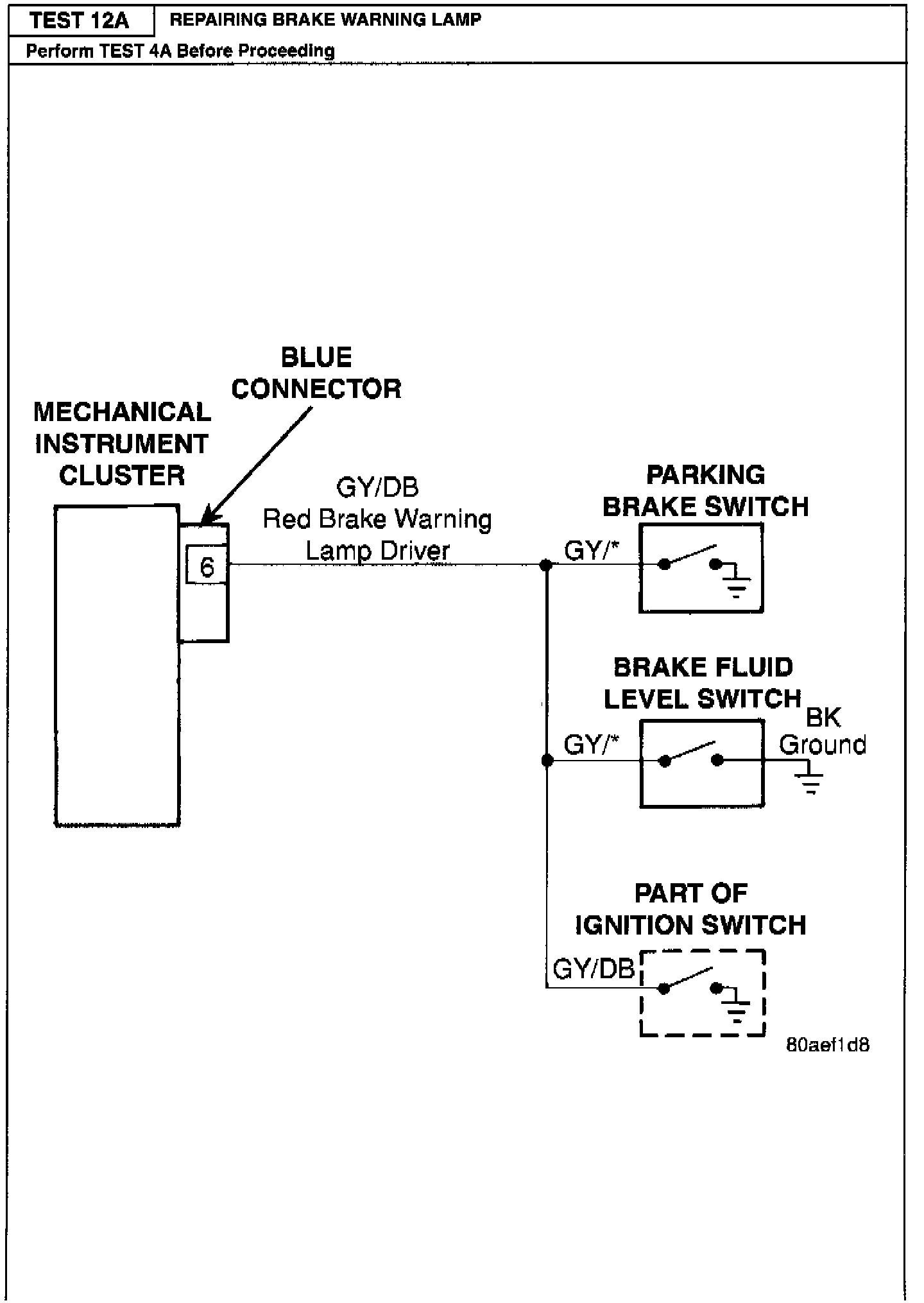

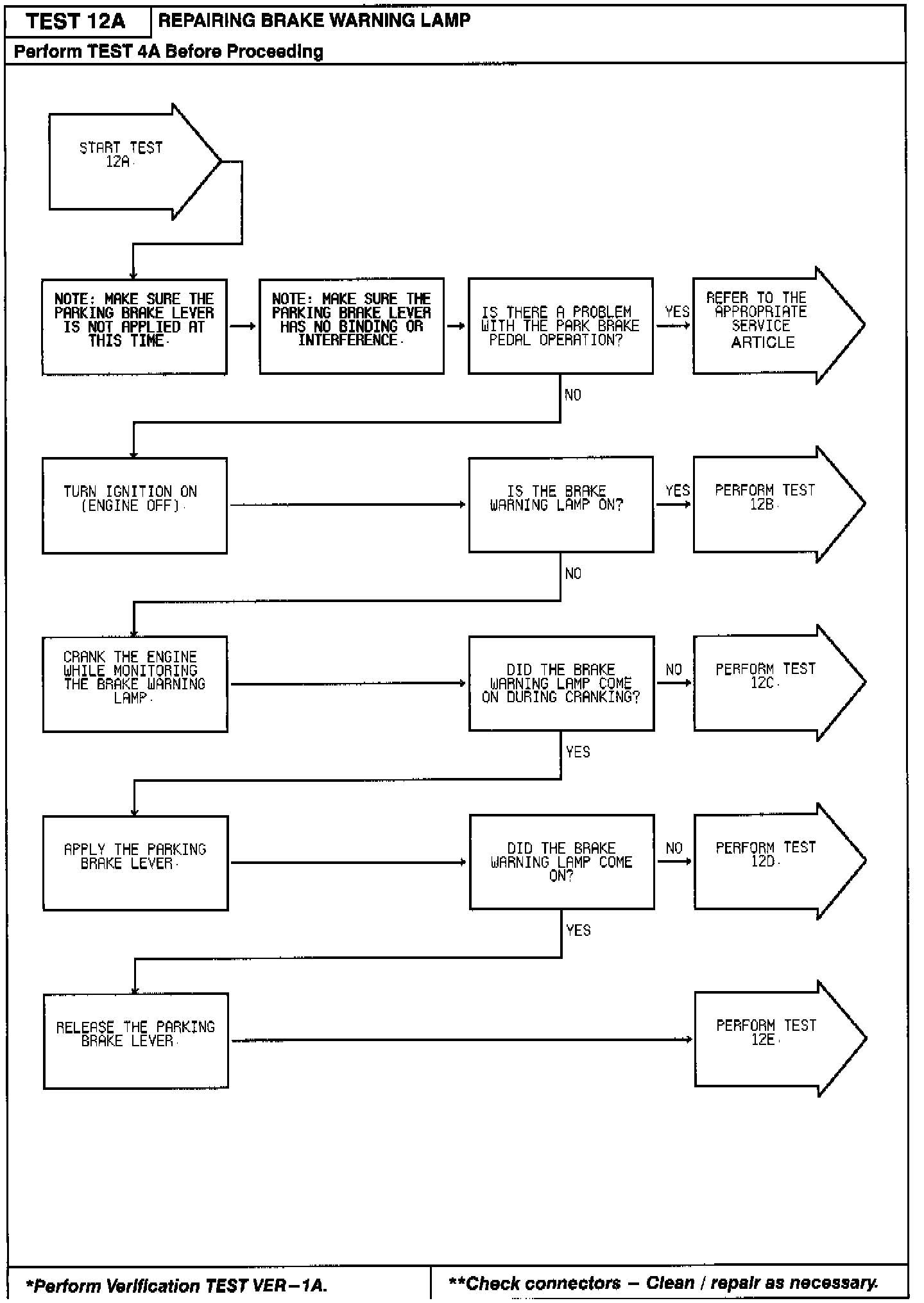

12A Repairing Brake Warning Lamp

Part 1 of 1:






Part 1 figures:
