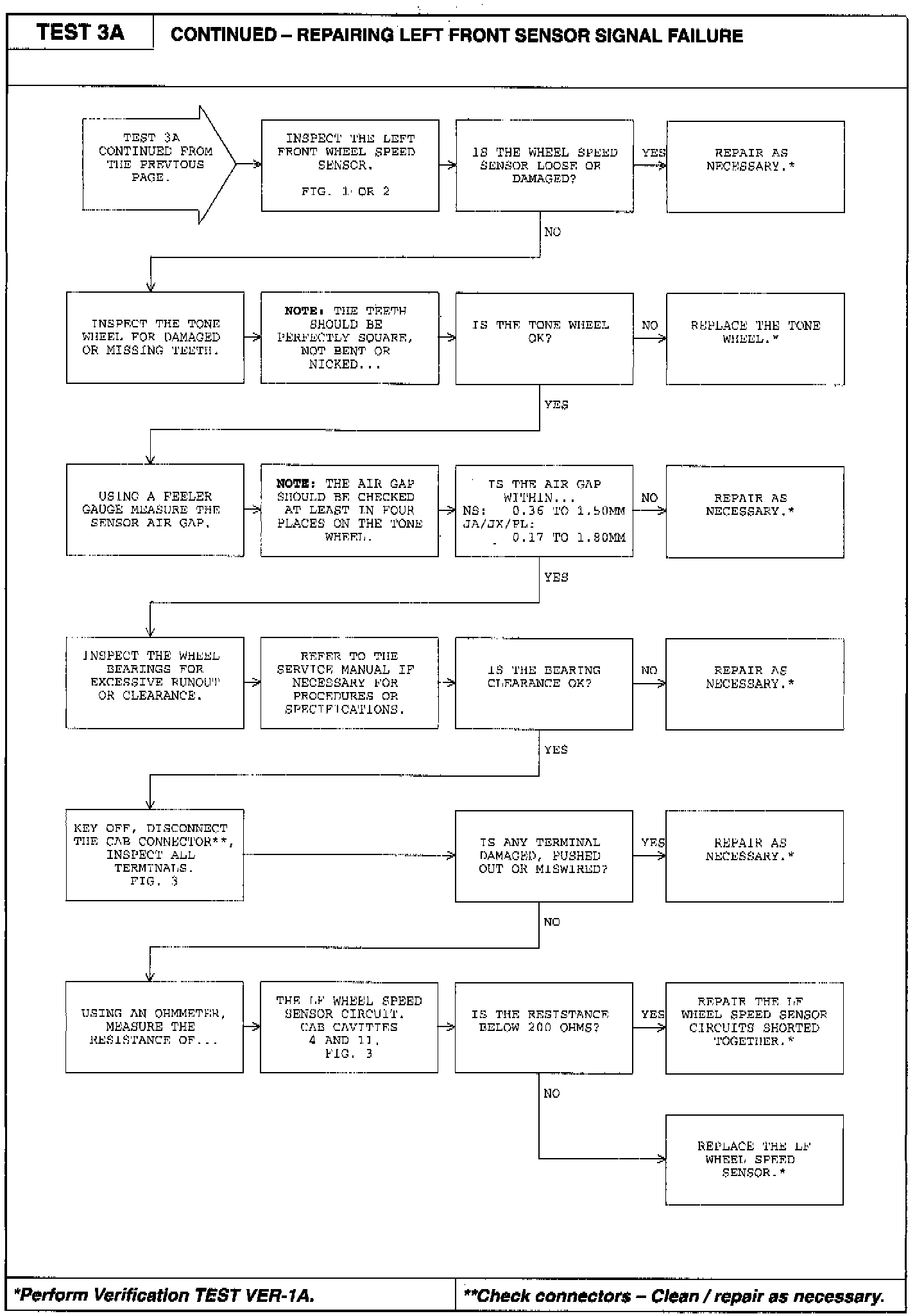

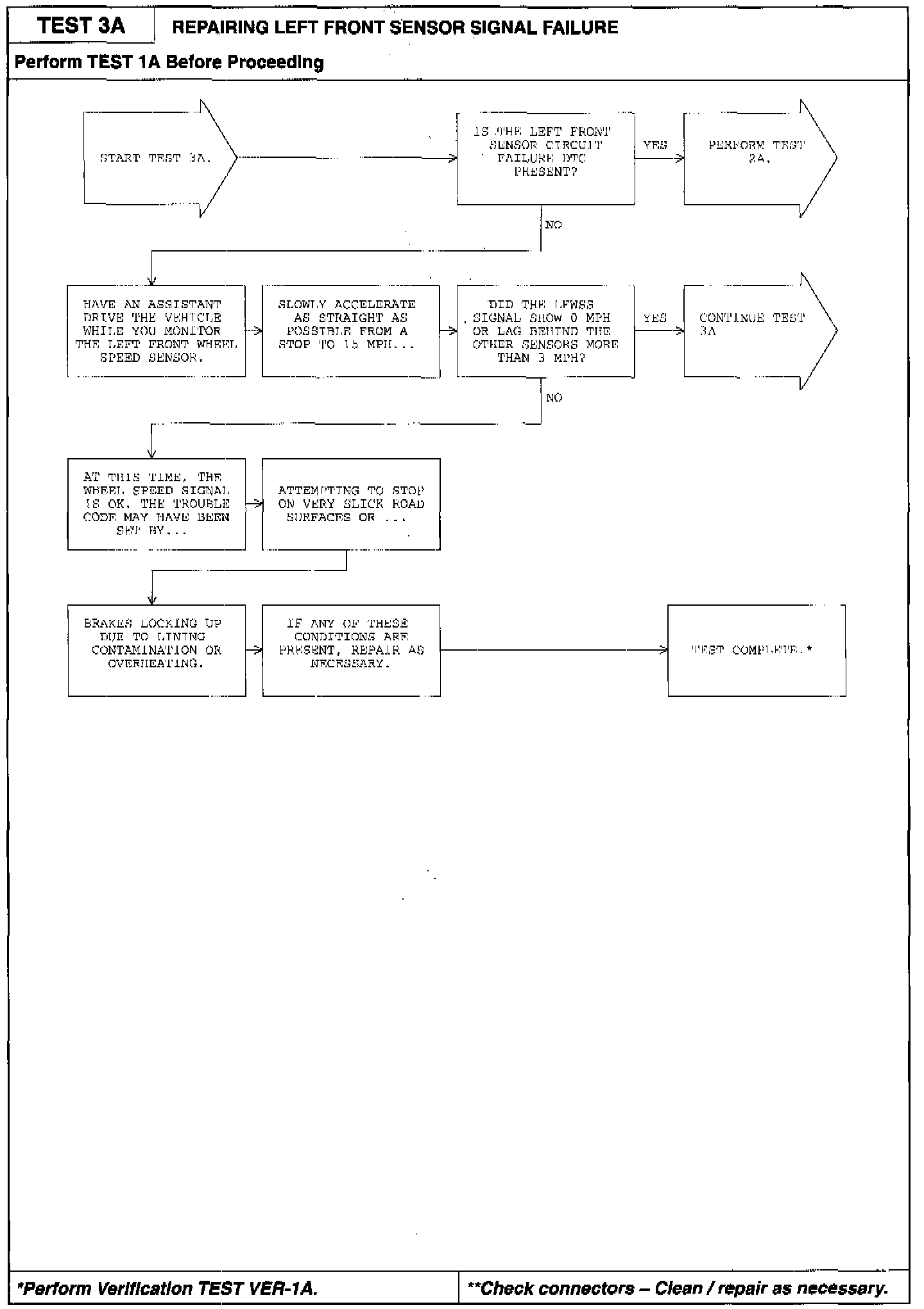

Test 3A - Left Front Sensor Signal Failure
Test 3A - Left Front Sensor Signal Failure
Related Figures:
Diagnostic Chart:
Related Figures:
Diagnostic Chart:
