Sebring Convertible V6-2.5L VIN H
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Antilock Brakes / Traction Control Systems
>>
Diagnostic Charts (By Test or Chart Number)
>>
Test 22 - DRB "No Response" Message
>>

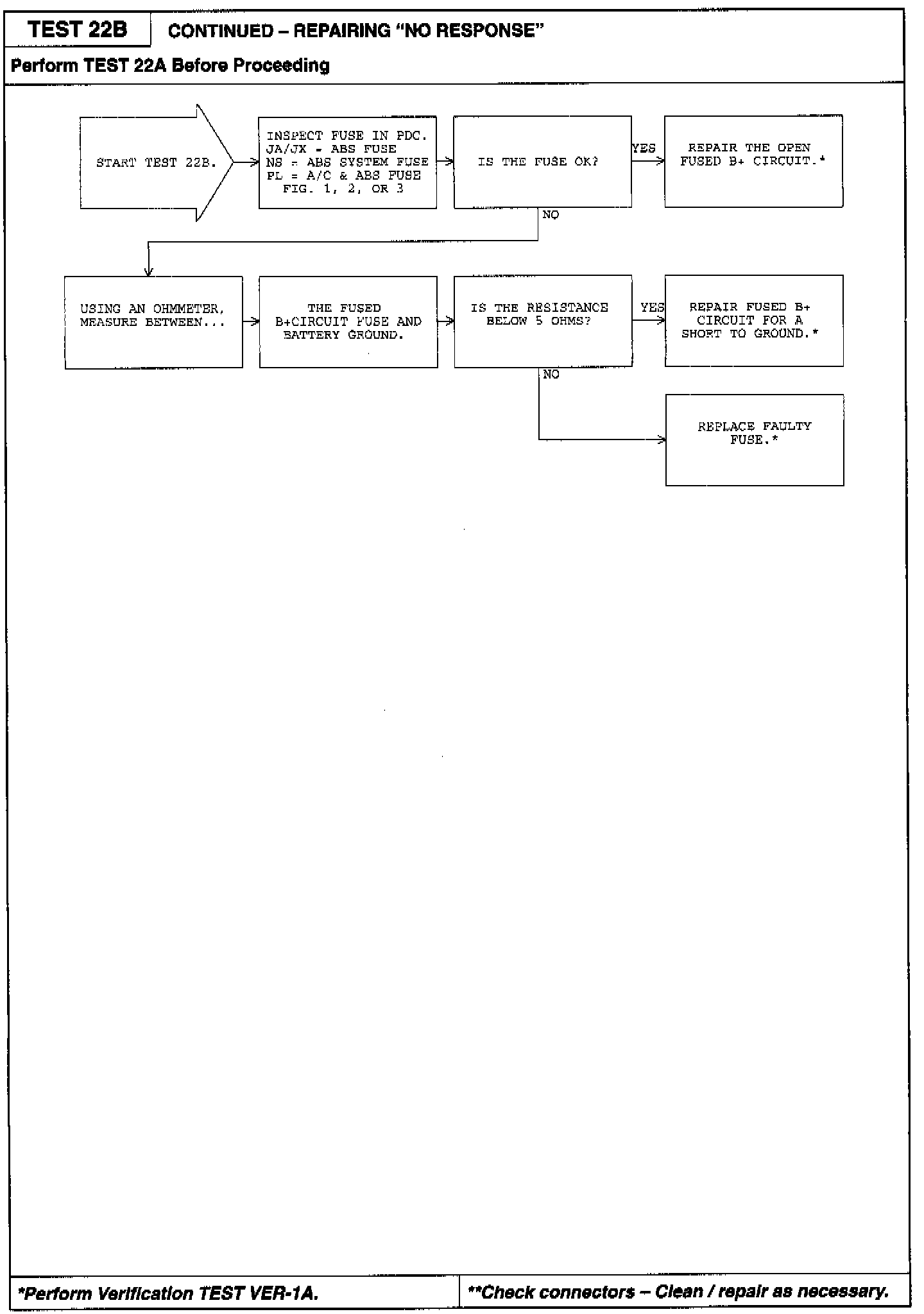

Test 22B

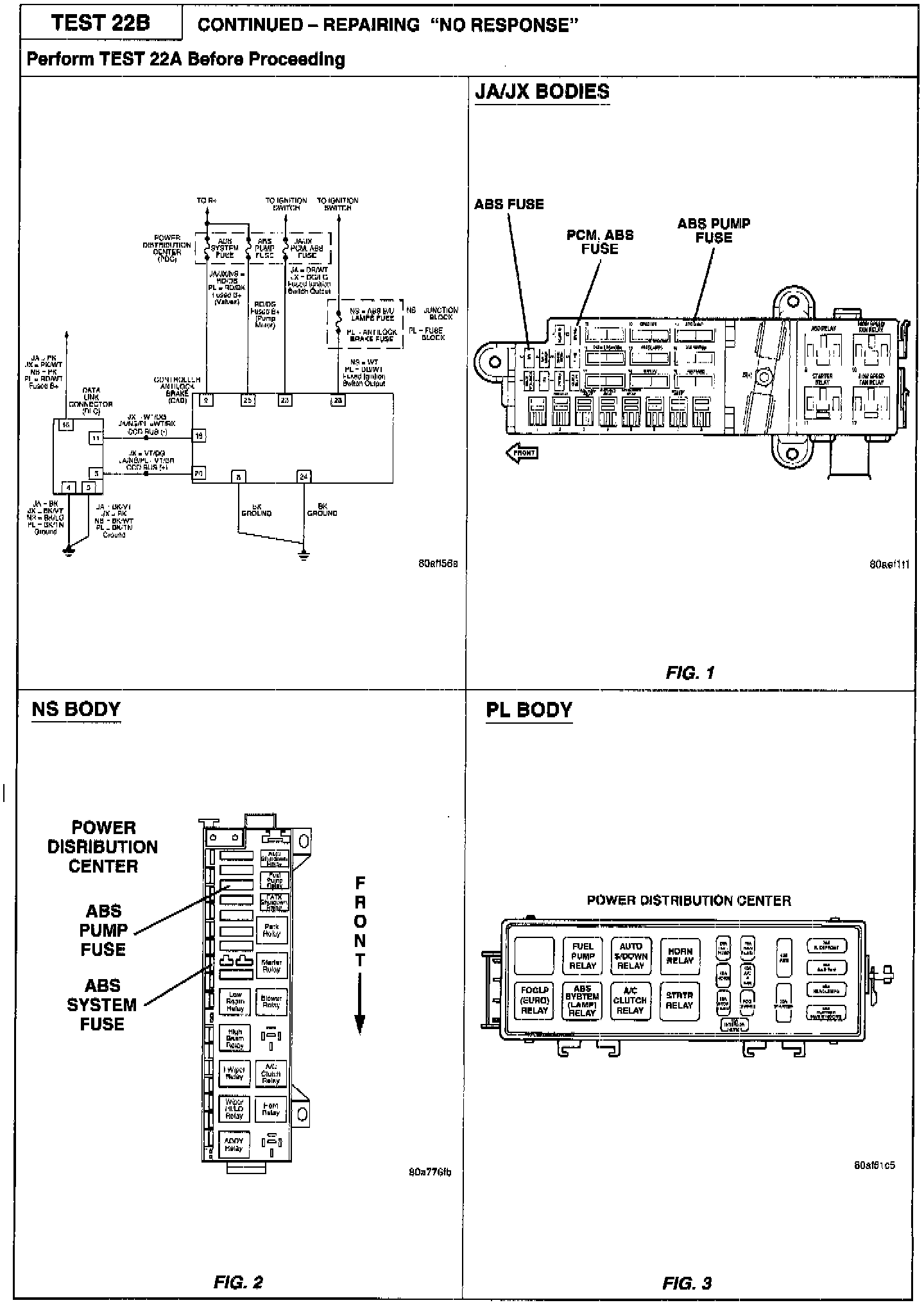

Test 22B
Related Figures:
Diagnostic Chart:
