Home >> Chrysler >> 1998 >> Sebring Convertible V6-2.5L VIN H >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Airbag System >> 4A Repairing Driver Squib Circuit Shorted

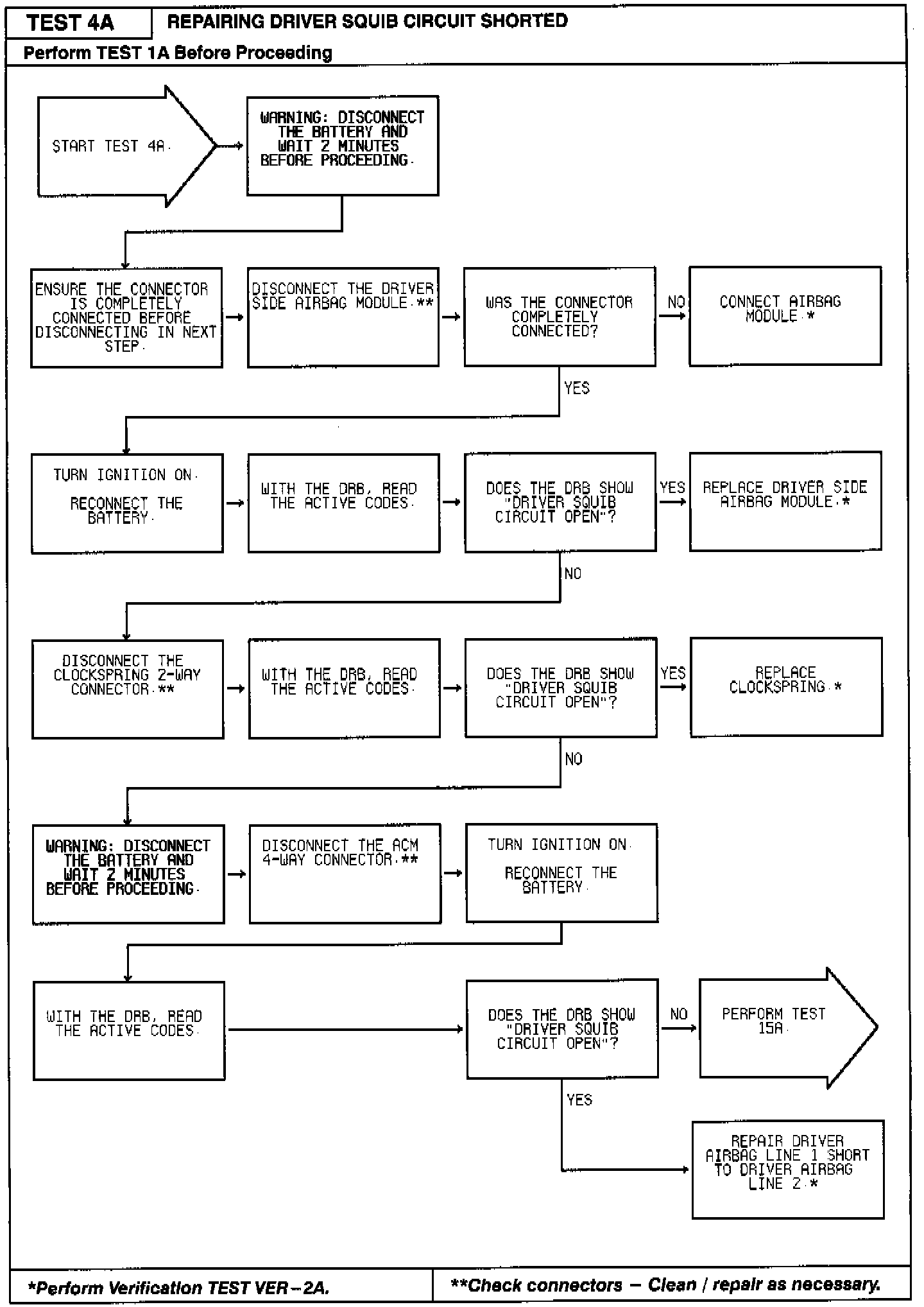

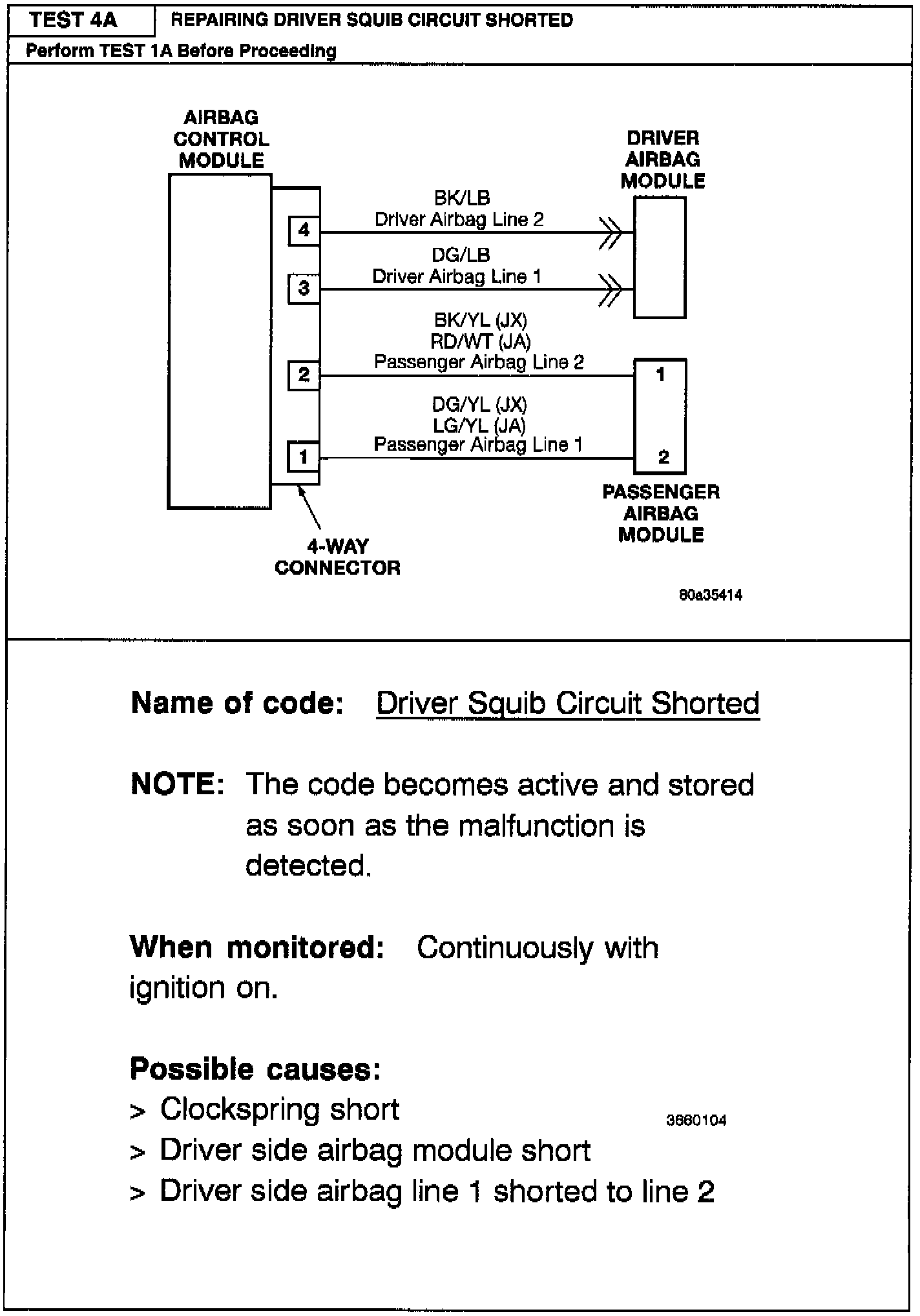

4A Repairing Driver Squib Circuit Shorted

Part 1 of 1:






Part 1 figures:
