FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chrysler
>>
1998
>>
Sebring Convertible V6-2.5L VIN H
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Airbag System
>>
3A Repairing Driver Squib Circuit Open
3A Repairing Driver Squib Circuit Open

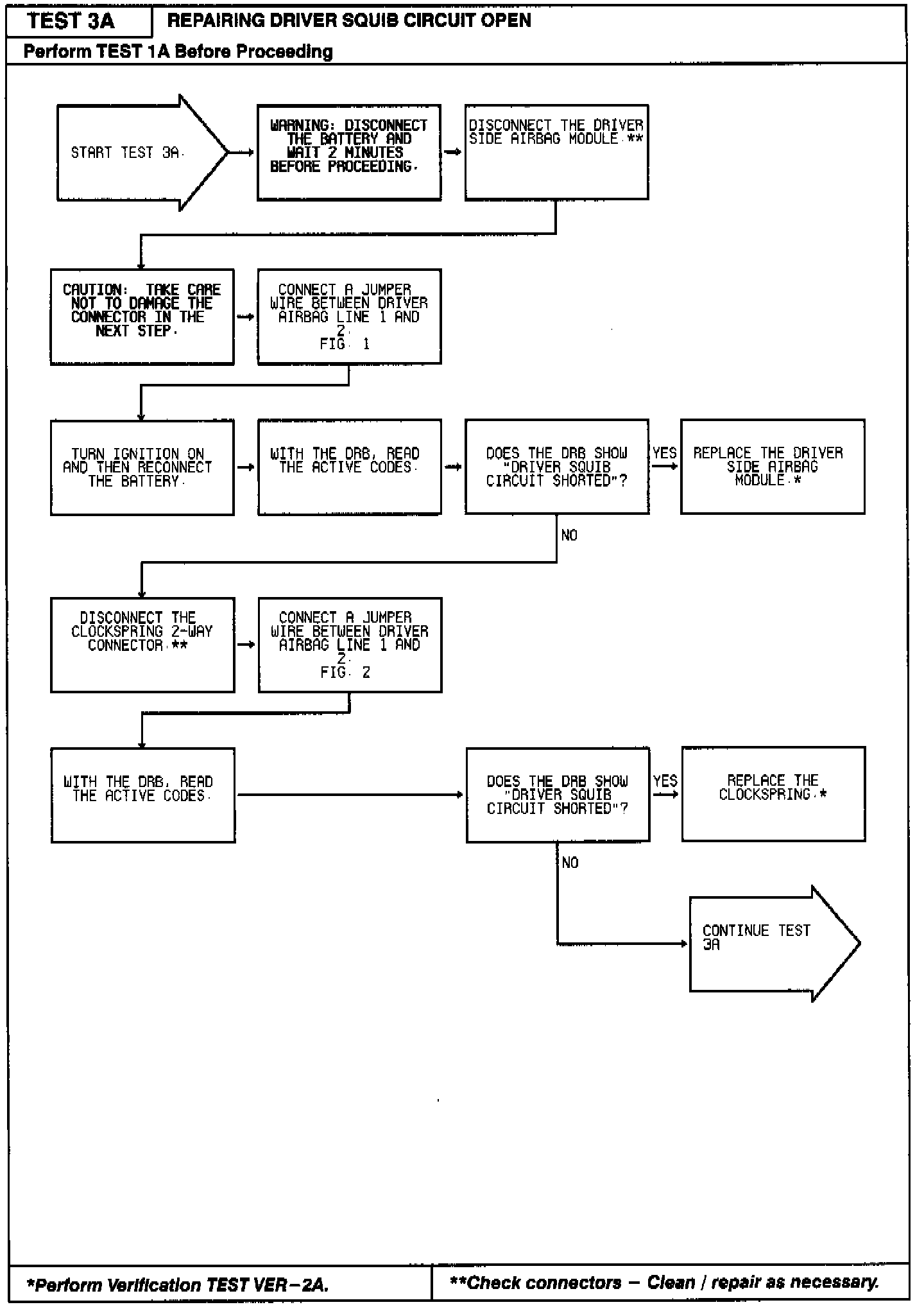

Part 1 of 2:

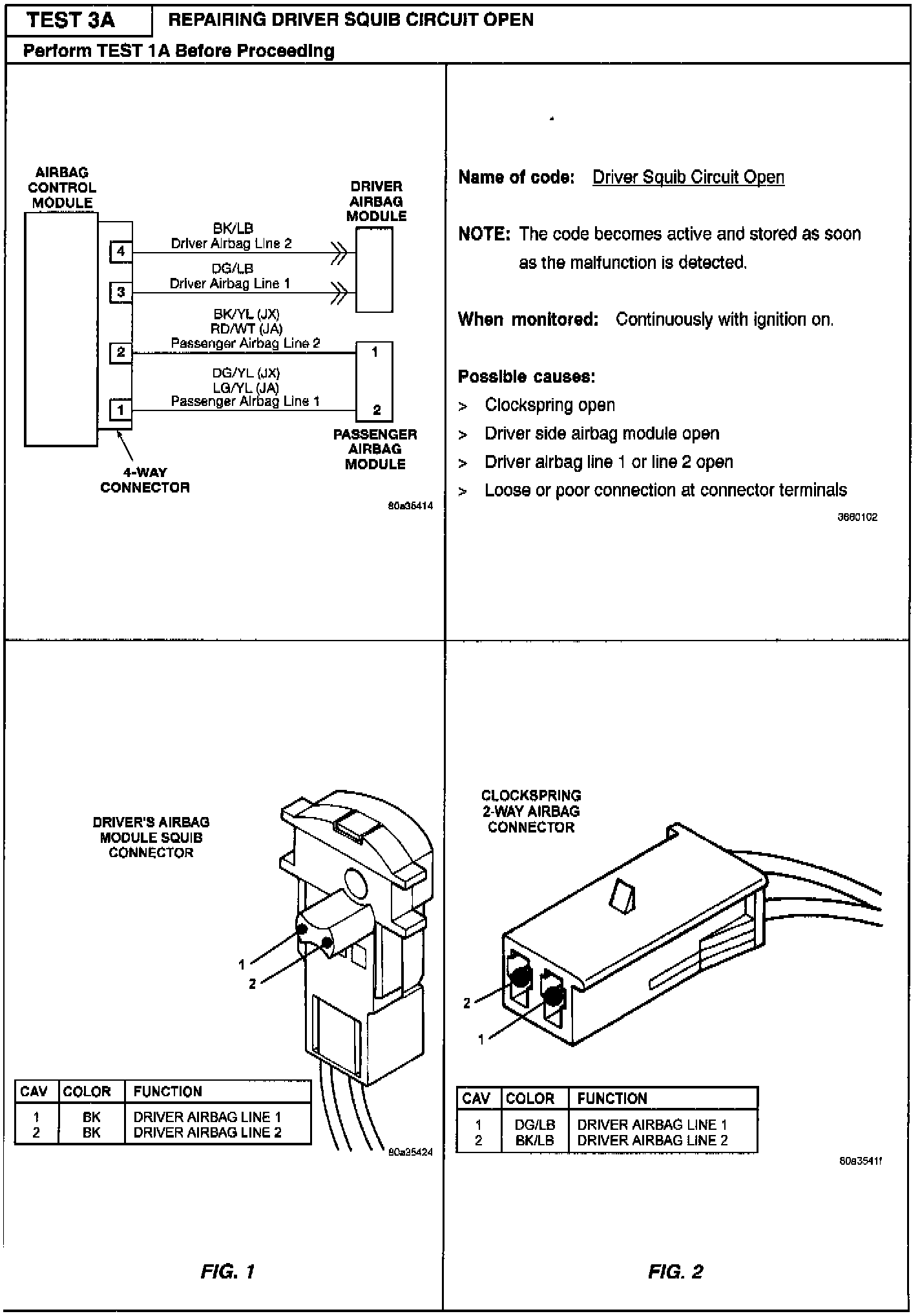

Part 1 figures:

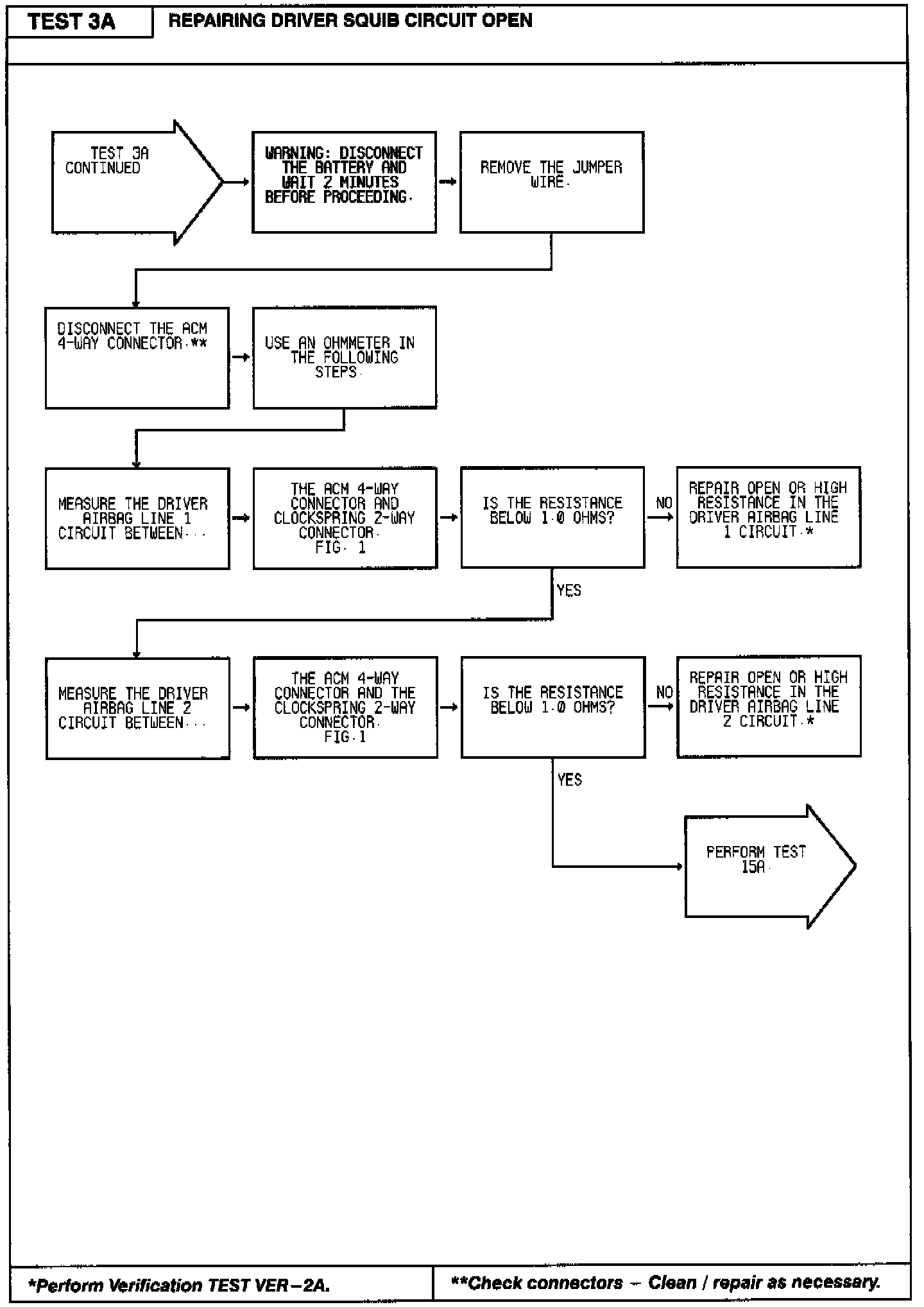

Part 2 of 2:

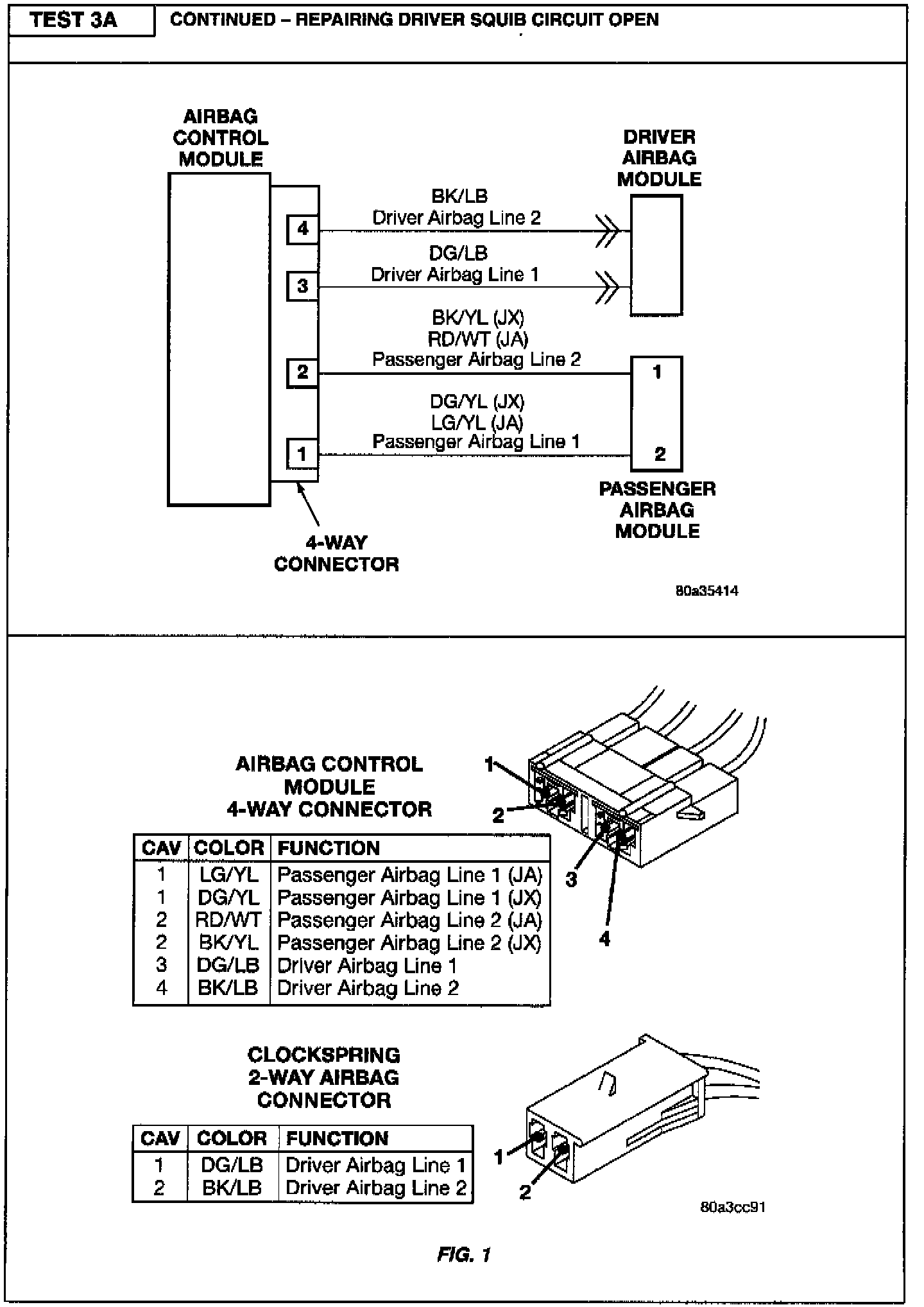

Part 2 figures:
