General Information

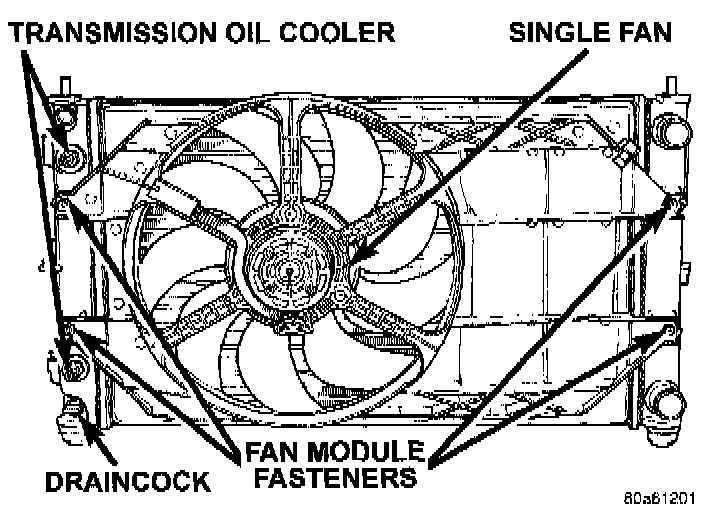

Radiator And Fan Module:

Oil coolers are internal oil to coolant type, mounted in the radiator left tank. Rubber oil lines feed the oil cooler and the automatic transmission. Use only approved transmission oil cooler hose. Since these are molded to fit space available, molded hoses are recommended. Tighten Oil Cooler Hose Clamps to 2 Nm (18 inch lbs.).
