External Transmission Oil Cooler

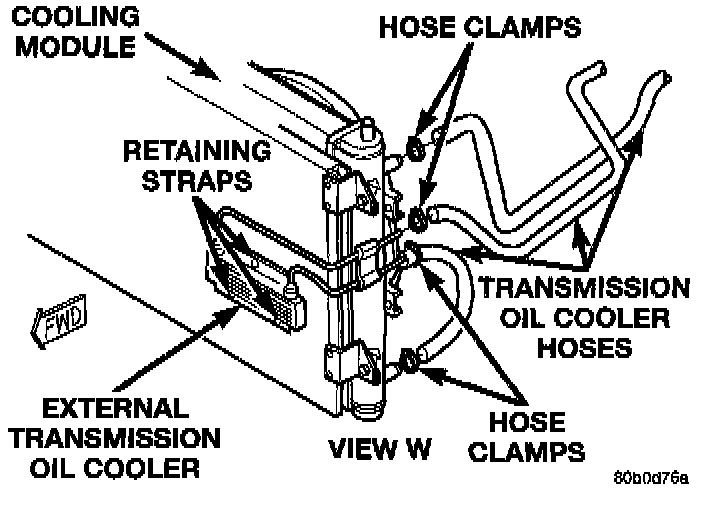

External Transmission Oil Cooler-2.4L Engine:

An external oil-to-air type transmission oil cooler is mounted ahead of the cooling module. This style of cooler uses steel tubes and rubber oil lines to feed oil from the internal (in radiator tank) cooler to the external cooler and then to the automatic transmission. Use only approved transmission oil cooler hose. Since these hoses are molded to fit space available, replacement molded hoses are recommended.
