Floor Console Courtesy Lamp

REMOVAL

Floor Console Courtesy Lamp:

1. Using a small, flat bladed tool inserted into slot in top edge of courtesy lamp, separate courtesy lamp from floor console.

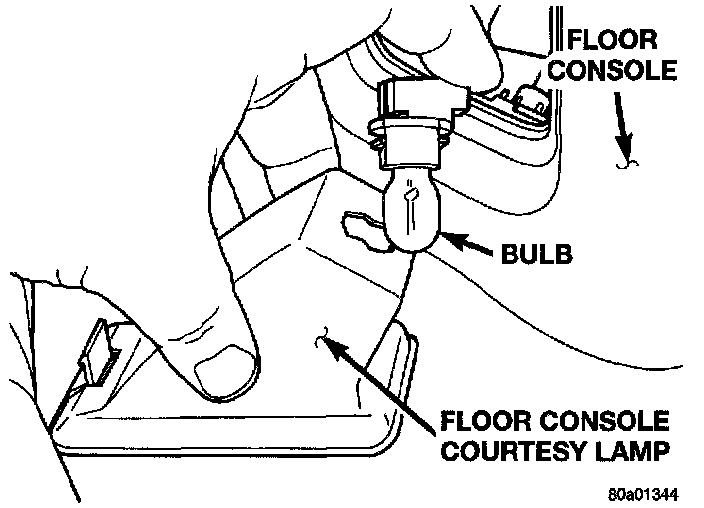

2. Rotate bulb socket counterclockwise one quarter turn.

Floor Console Courtesy Lamp Bulb:

3. Pull bulb socket from courtesy lamp.
4. Separate console courtesy lamp from vehicle.

INSTALLATION
1. Separate console courtesy lamp from vehicle.
2. Push bulb socket into courtesy lamp.
3. Rotate bulb socket clockwise one quarter turn.
4. Position lower edge of courtesy lamp to floor console.
5. Snap courtesy lamp into floor console.
